Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. Refer to BATTERY DISCONNECT - Dual .
Remove the battery ground cable screw.

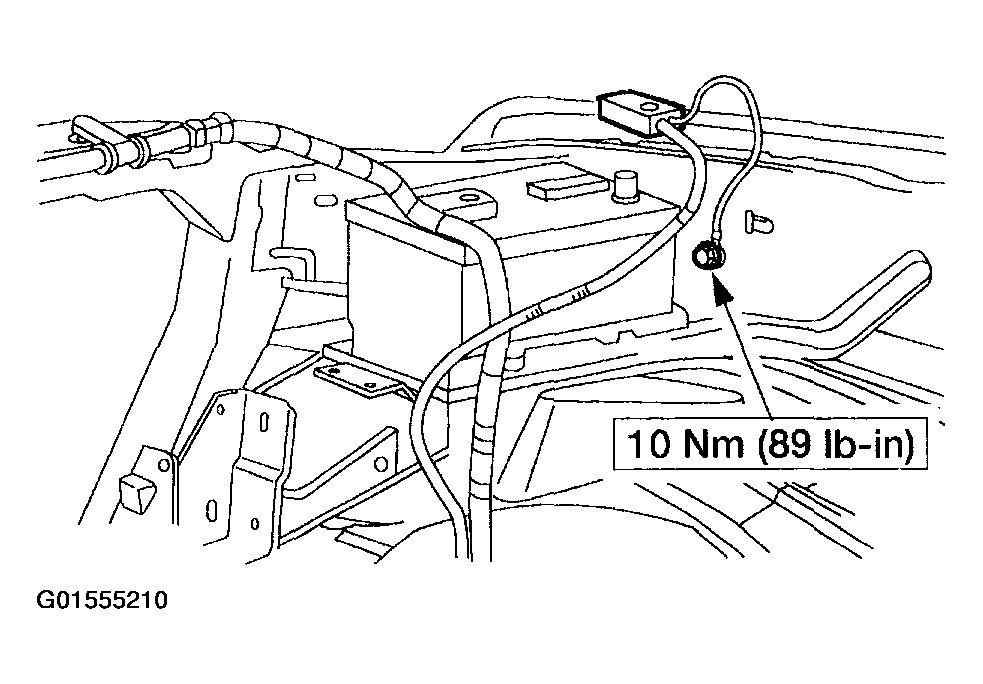

Fig 1: Removing Battery Ground Cable Screw
Courtesy of FORD MOTOR CO.
Remove the four pin-type retainers and position the upper radiator air deflector aside.
Remove the bolts and position the radiator support bracket aside.

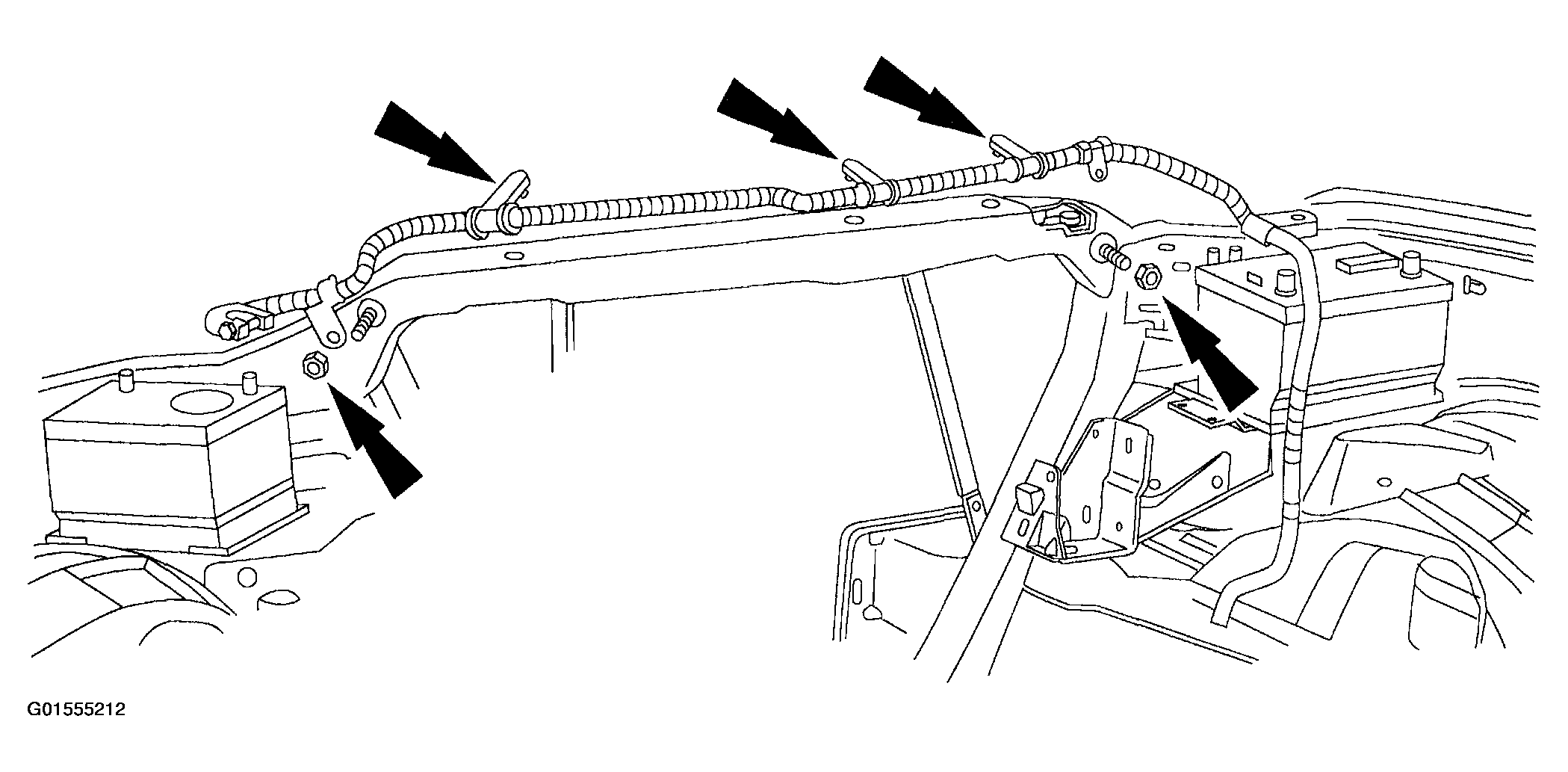

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the pin-type retainers from along the top of the radiator support bracket and remove the nuts.

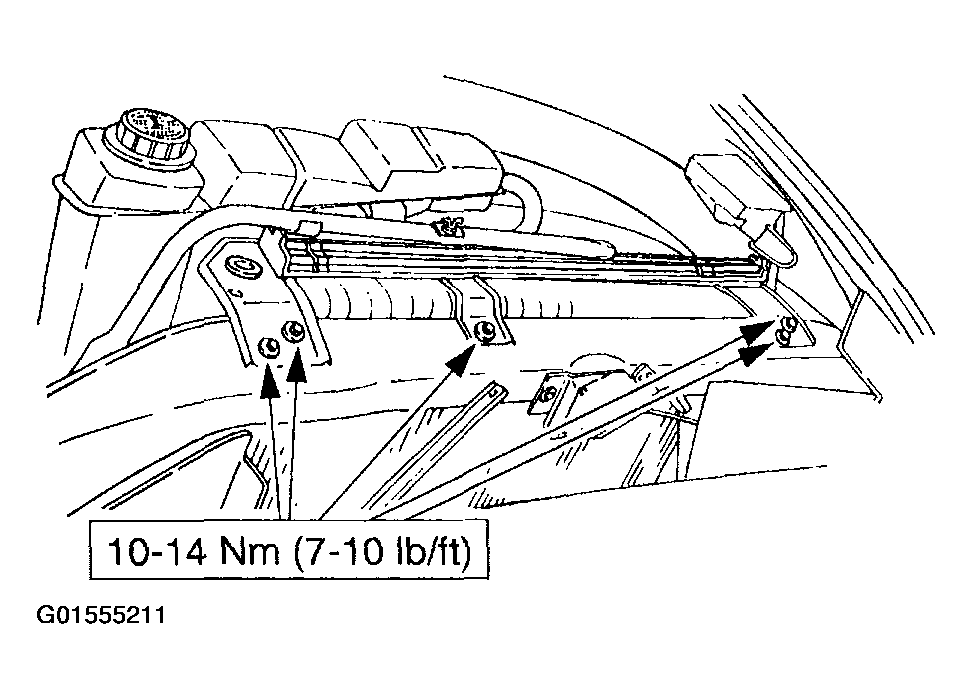

Fig 3: Removing Pin-Type Retainers From Along Top Of Radiator Support Bracket
Courtesy of FORD MOTOR CO.
Remove the pin-type retainer on the top of the LH frame rail.

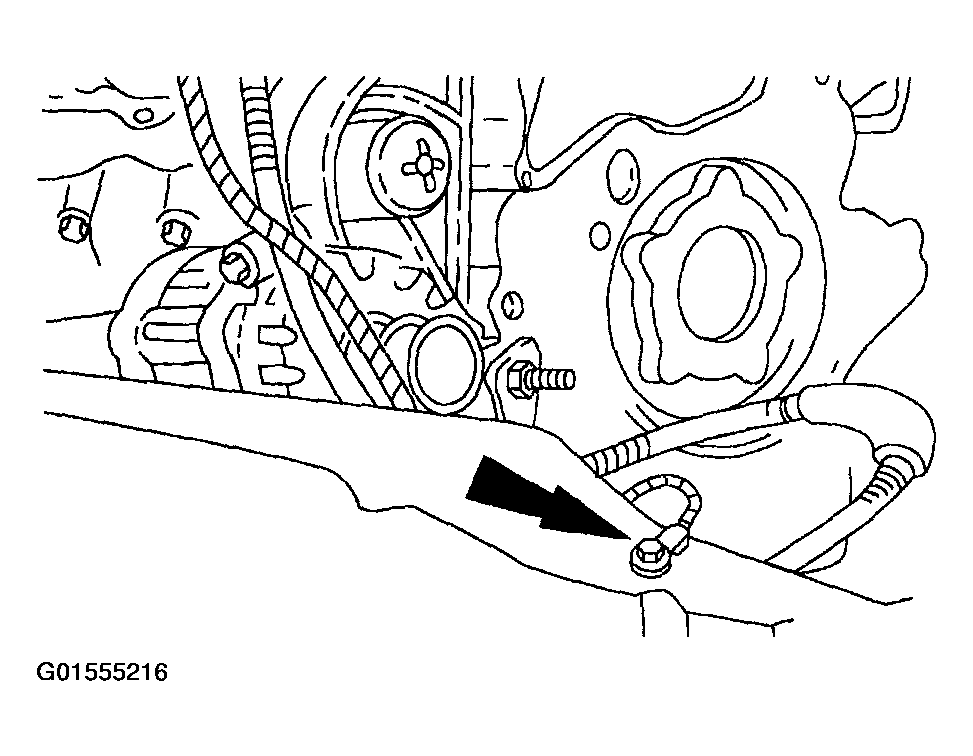

Fig 4: Removing Pin-Type Retainer On Top Of LH Frame Rail
Courtesy of FORD MOTOR CO.
Remove the bolt from the left front of the engine block.

Fig 5: Removing Bolt From Left Front Of Engine Block
Courtesy of FORD MOTOR CO.
Remove the RH battery cable harness.
1. Remove the nut and remove the positive starter cable and bracket.
2. Remove the stud and remove the ground cable eyelet.

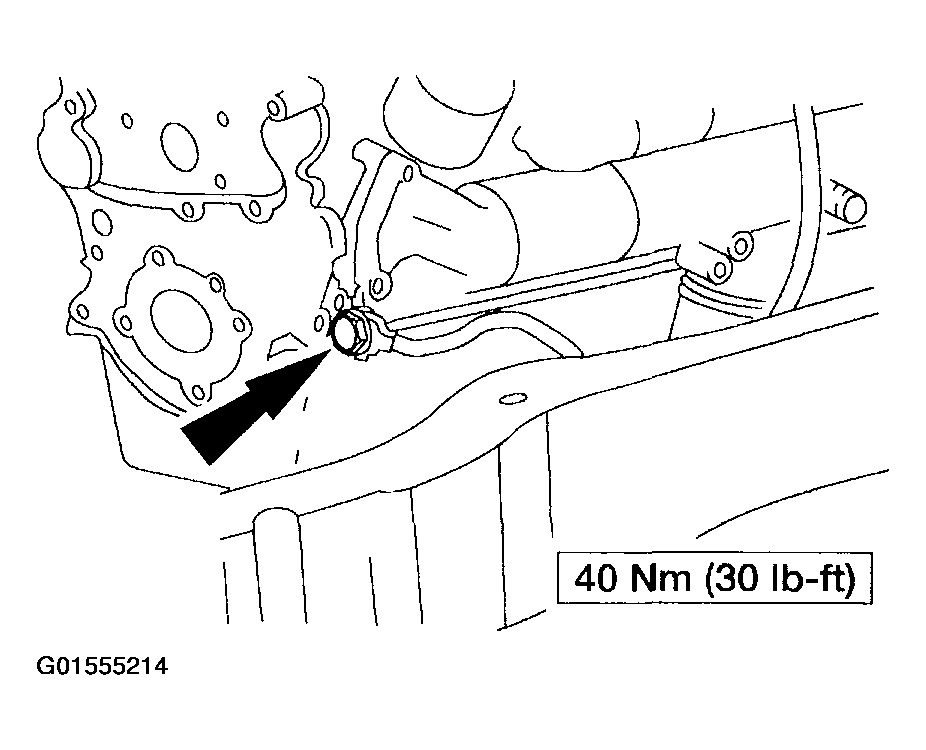

  Fig 6: Removing Ground Cable Eyelet
  Courtesy of FORD MOTOR CO.
Remove the screw.

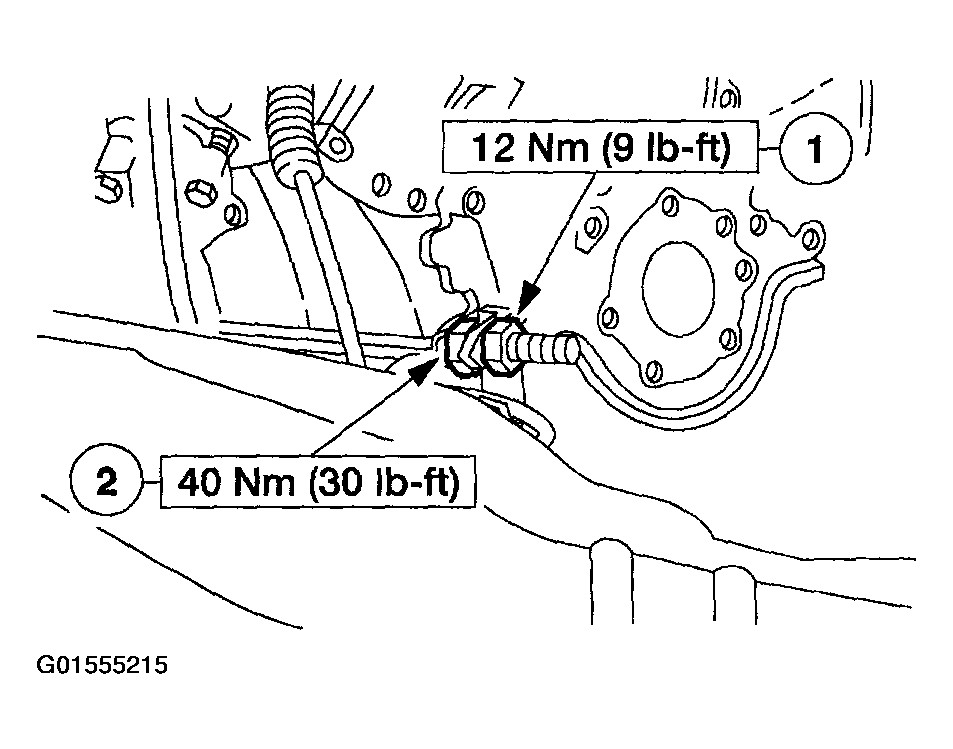

Fig 7: Removing Screw
Courtesy of FORD MOTOR CO.
Remove the starter motor solenoid terminal cover.
Disconnect the starter motor connections.
1. Remove the nut and disconnect the solenoid cable.
2. Remove the nut and disconnect the starter motor positive cable.

  Fig 8: Removing Starter Motor Solenoid Terminal Cover
  Courtesy of FORD MOTOR CO.
Remove the battery cable harness assembly.
To install, reverse the removal procedure.
