Battery Disconnect - Dual: Connect

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the secondary battery positive cable (LH side of the engine compartment).

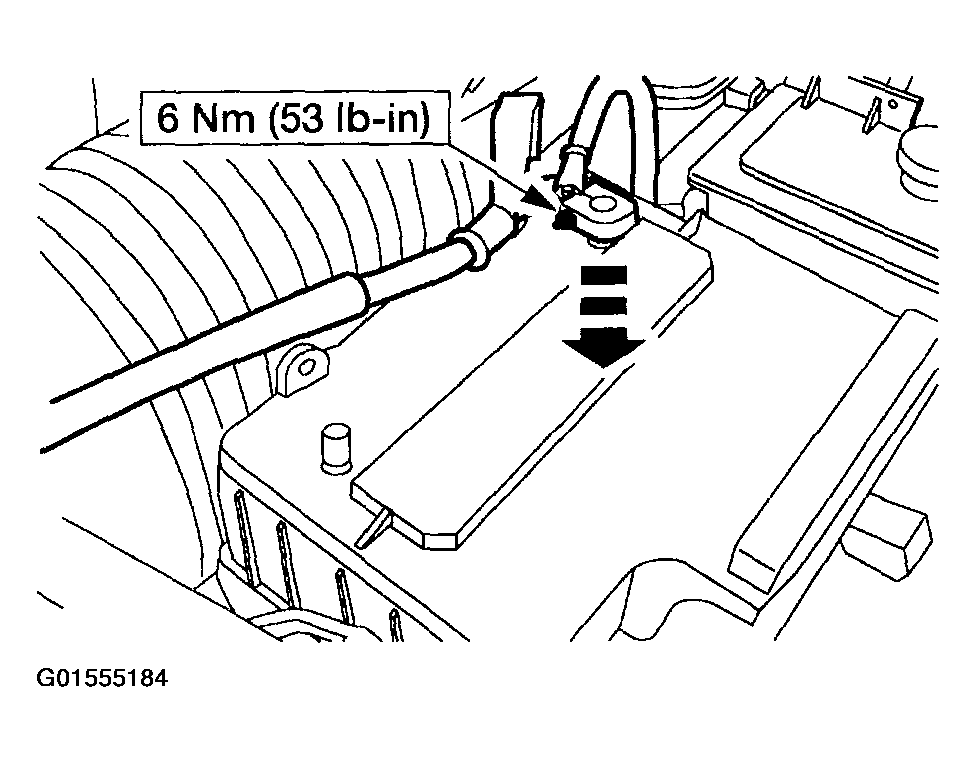

    Fig 1: Connecting Secondary Battery Positive Cable (LH Side Of Engine Compartment)
    G01555184Courtesy of FORD MOTOR CO.
  2. Connect the primary battery positive cable (RH side of the engine compartment).

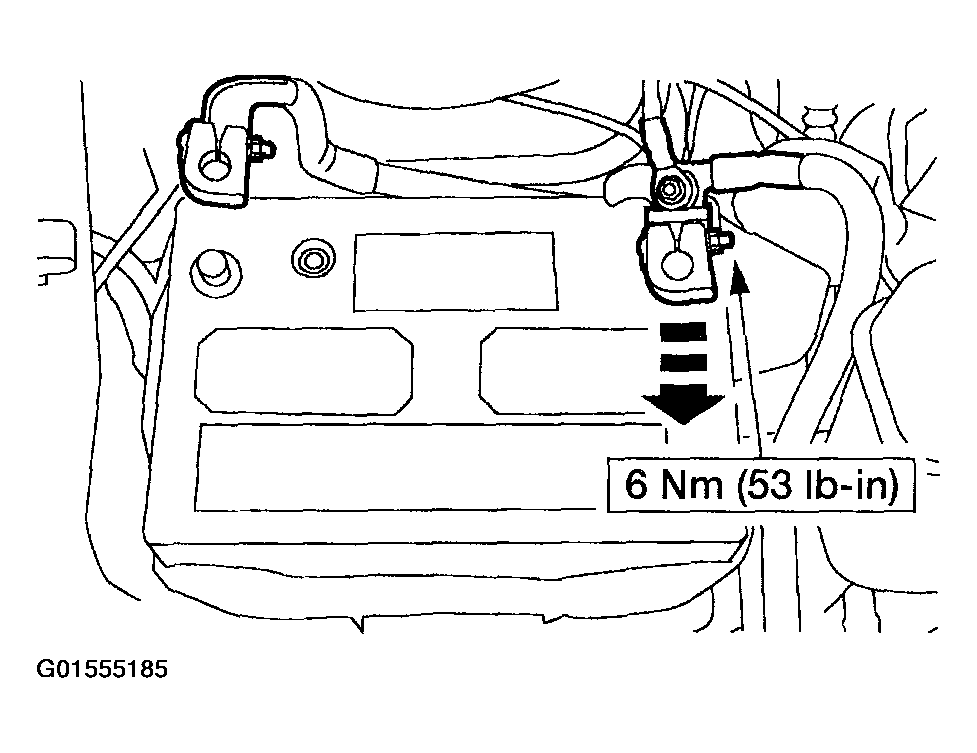

    Fig 2: Connecting Primary Battery Positive Cable (Rh Side Of Engine Compartment)
    G01555185Courtesy of FORD MOTOR CO.
  3. Connect the primary battery ground cable (RH side of the engine compartment).

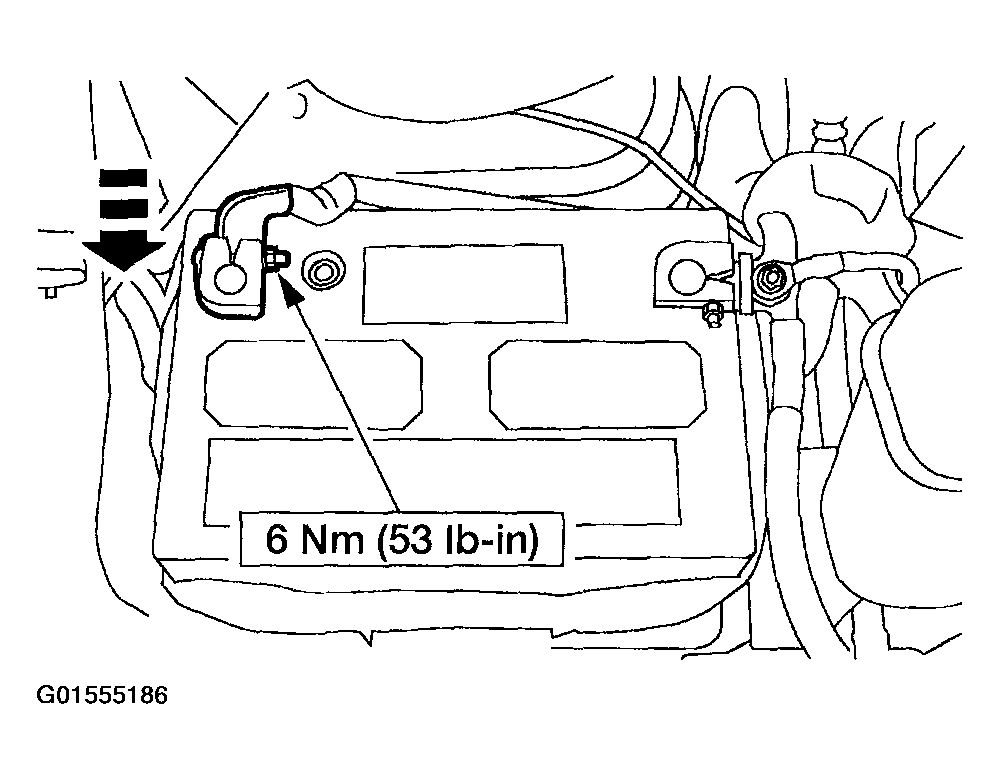

    Fig 3: Connecting Primary Battery Ground Cable (Rh Side Of Engine Compartment)
    G01555186Courtesy of FORD MOTOR CO.
  4. Connect the secondary battery ground cable (LH side of the engine compartment).

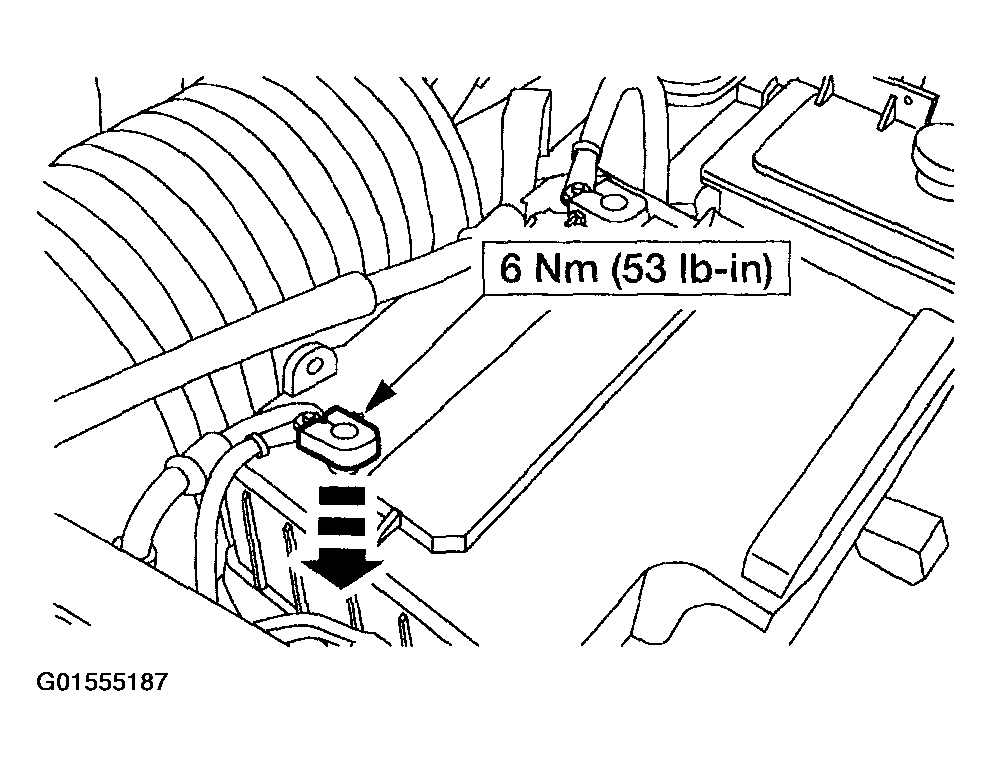

    Fig 4: Connecting Secondary Battery Ground Cable (LH Side Of Engine Compartment)
    G01555187Courtesy of FORD MOTOR CO.
