Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parking aid switch trim plate by gently prying the plate out of the instrument panel.

Fig 1: Removing Parking Aid Switch Trim Plate
Courtesy of FORD MOTOR CO.
Remove the parking aid switch.
1. Disconnect the electrical connectors from the parking aid switch, rear defrost switch (if equipped) and transfer case control switch (if equipped).
2. Release the locking tabs that retain the parking aid switch to the switch plate.
3. Remove the parking aid switch from the switch plate.

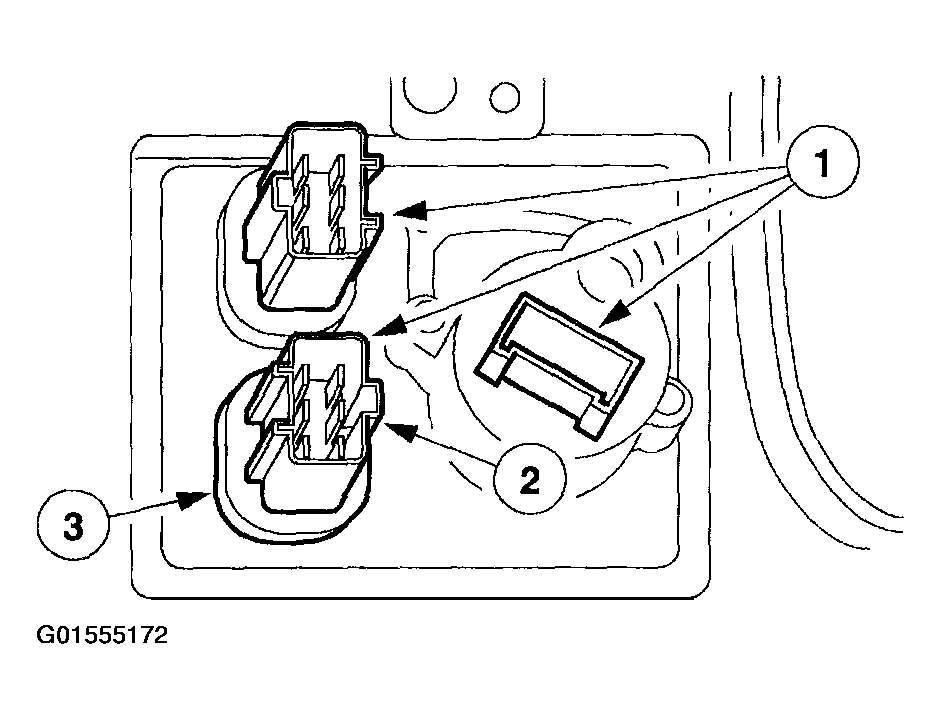

  Fig 2: Removing Parking Aid Switch From Switch Plate
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
