Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH cowl kick panel.
  2. Remove the parking aid module (PAM).
  3. Disconnect the electrical connectors.
  4. Remove the screw.
  5. Remove the upper pin-type retainer and the module as an assembly.

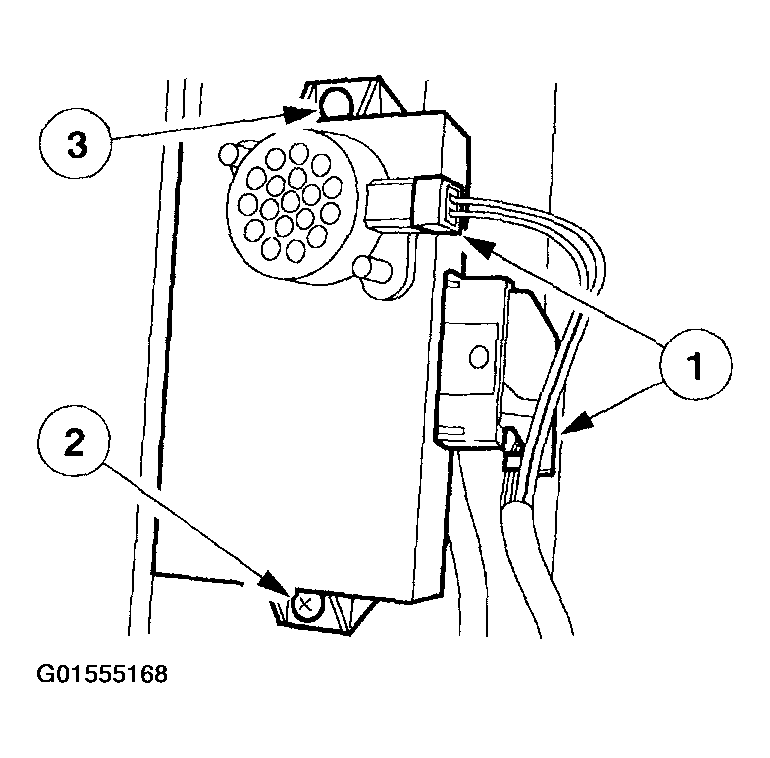

    Fig 1: Identifying Audible Warning Tones Location
    G01555168Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
