Pinpoint Test B: Parking Aid Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

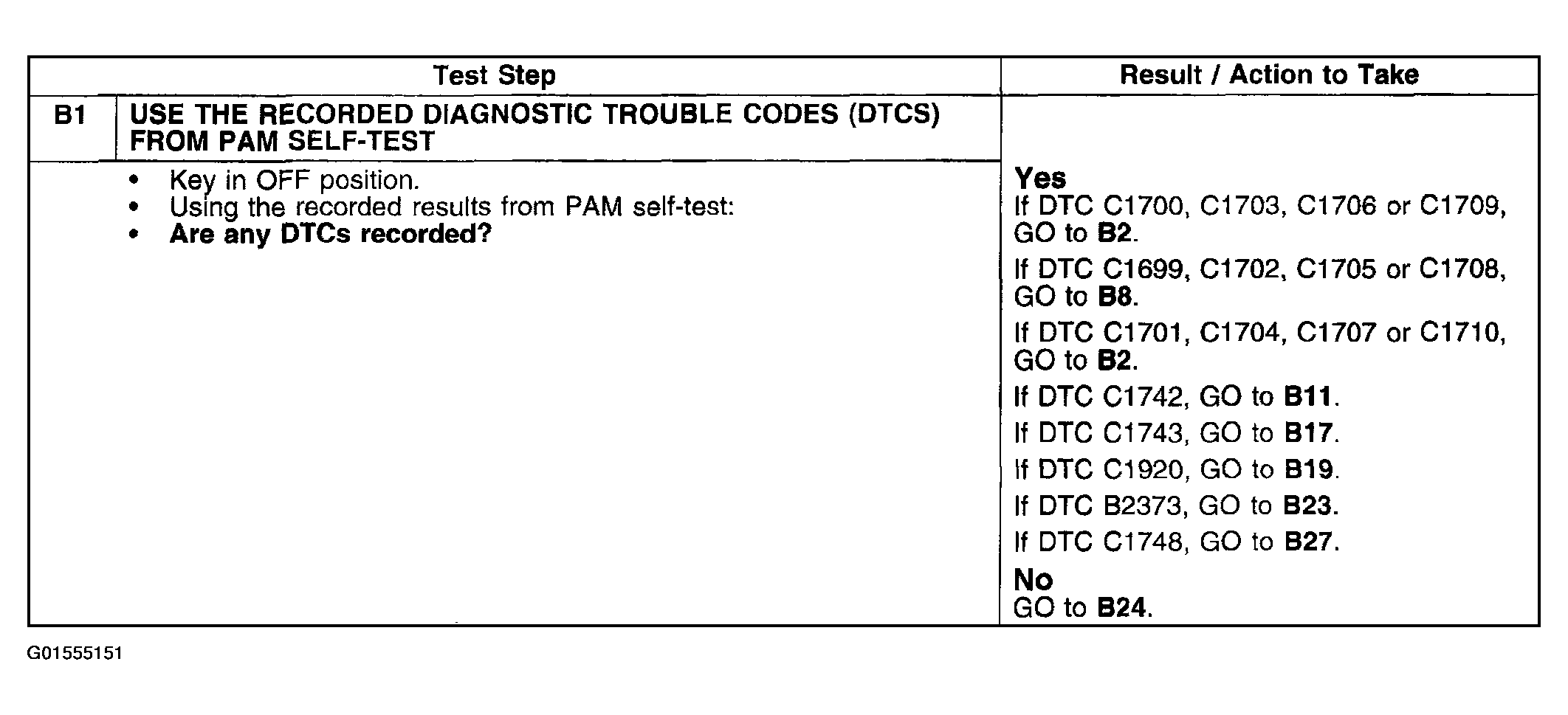

Fig 1: Pinpoint Test B: Parking Aid Is Inoperative (B1)

G01555151

Courtesy of FORD MOTOR CO.

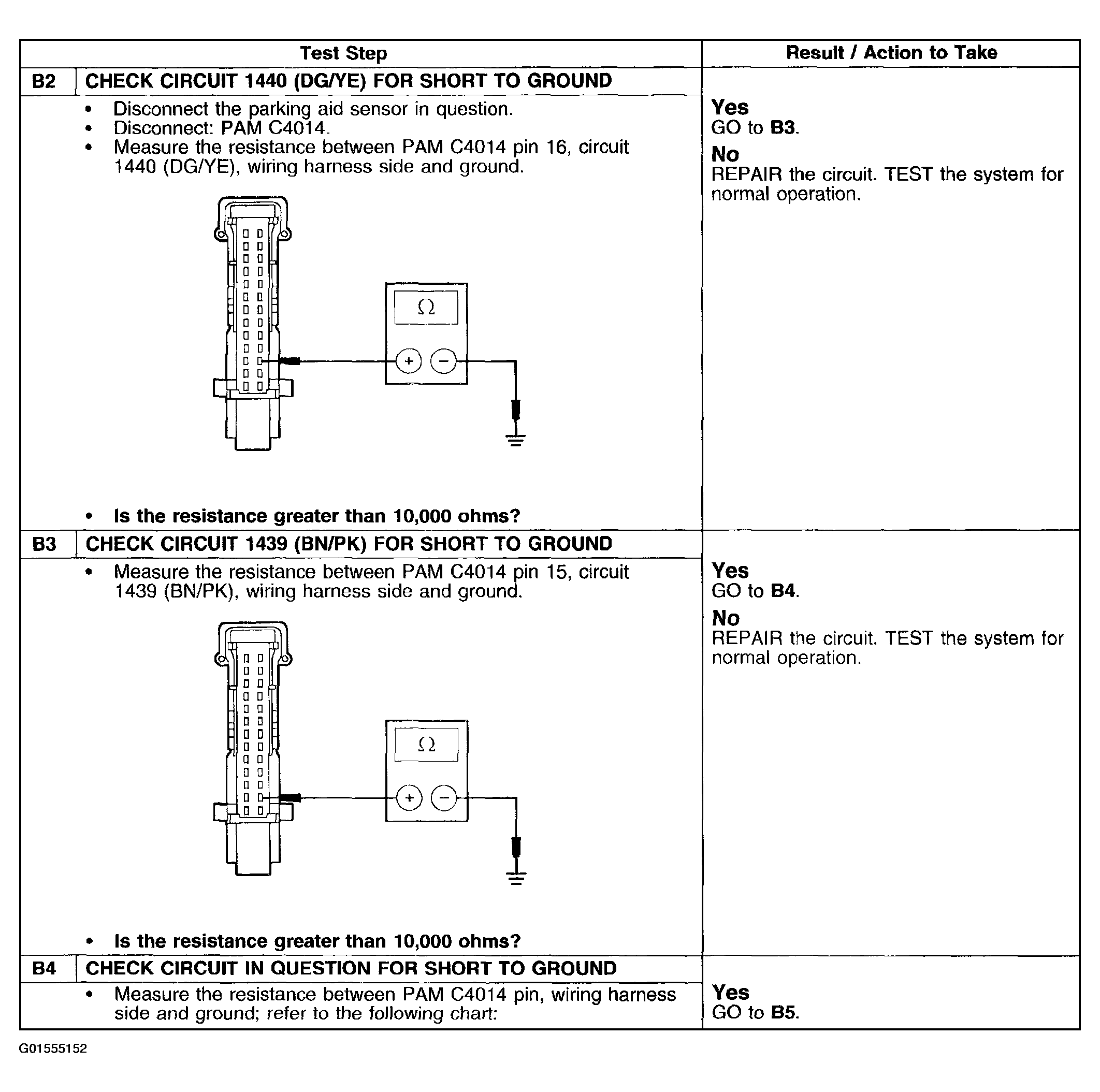

Fig 2: Pinpoint Test B: Parking Aid Is Inoperative (B2-B4)

G01555152

Courtesy of FORD MOTOR CO.

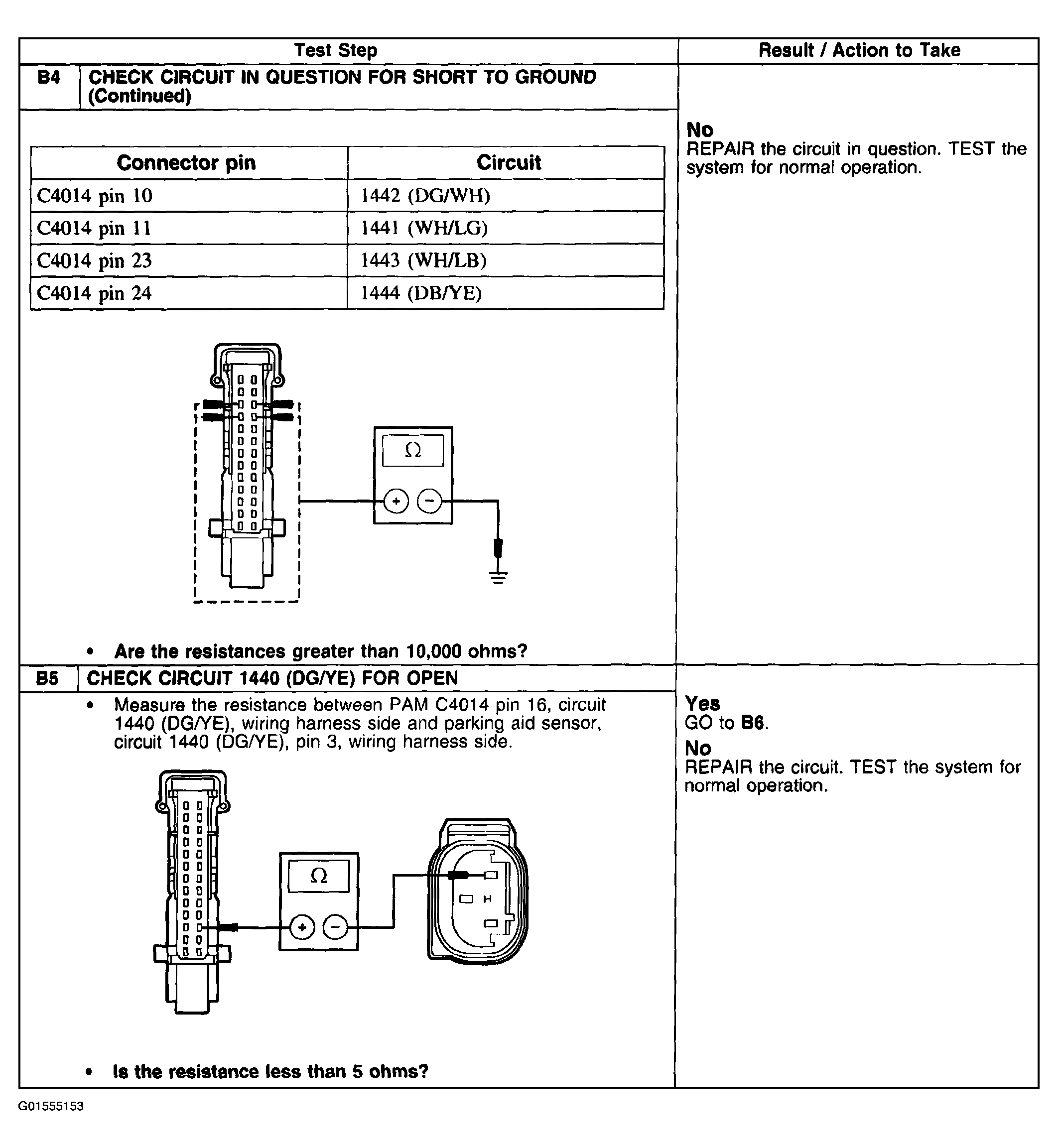

Fig 3: Pinpoint Test B: Parking Aid Is Inoperative (B4 Cont. & B5)

G01555153

Courtesy of FORD MOTOR CO.

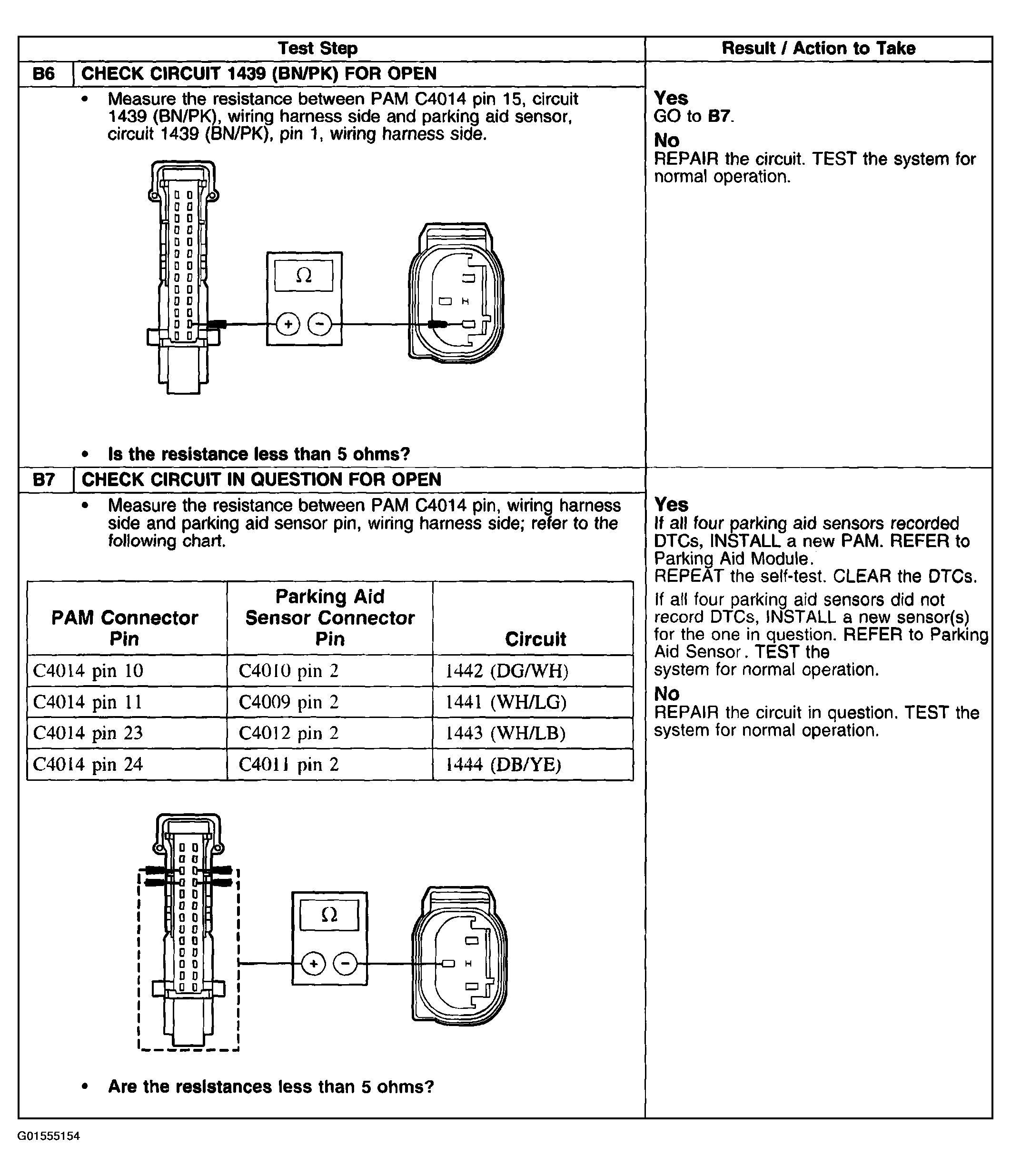

Fig 4: Pinpoint Test B: Parking Aid Is Inoperative (B6 & B7)

G01555154

Courtesy of FORD MOTOR CO.

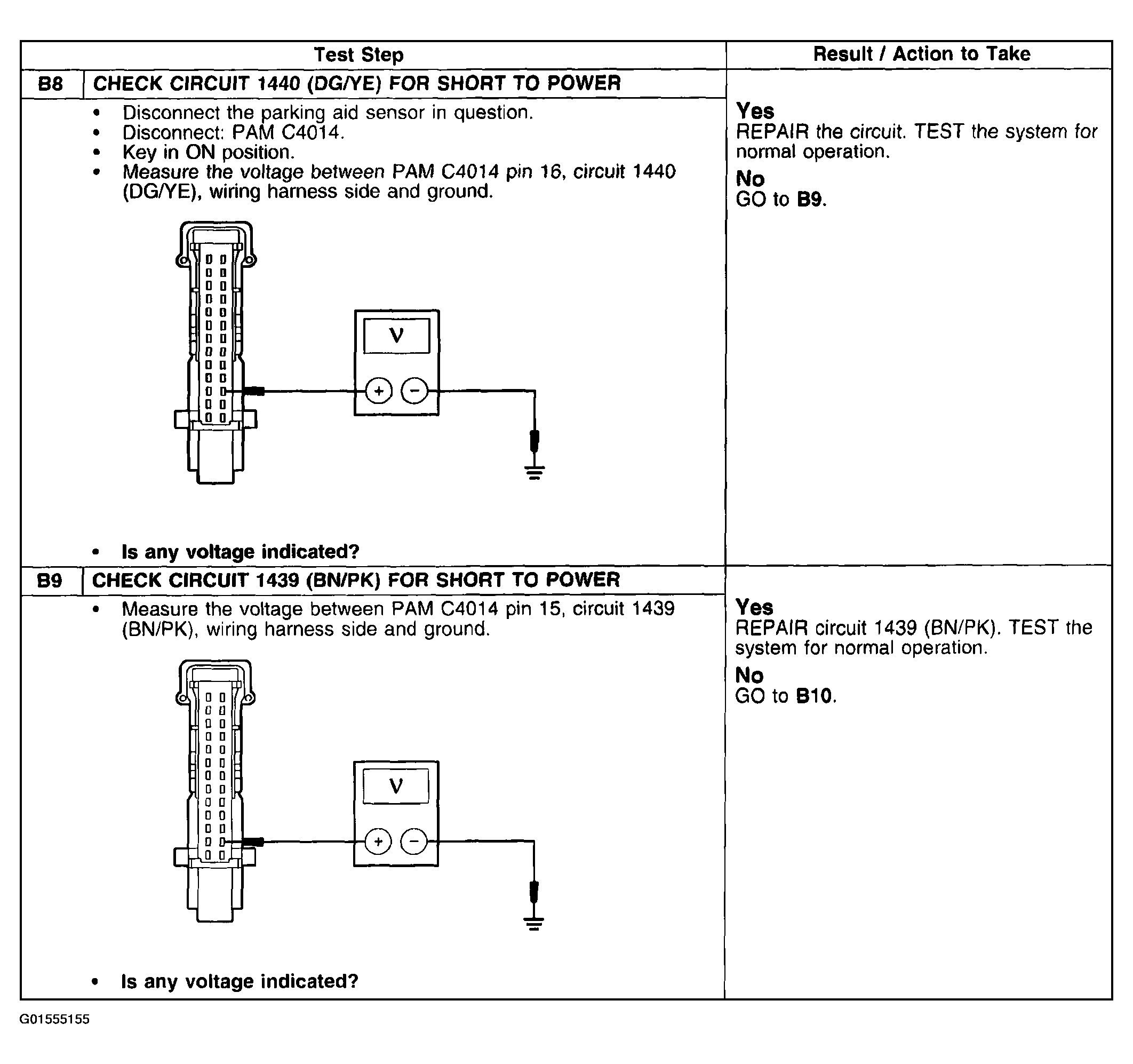

Fig 5: Pinpoint Test B: Parking Aid Is Inoperative (B8 & B9)

G01555155

Courtesy of FORD MOTOR CO.

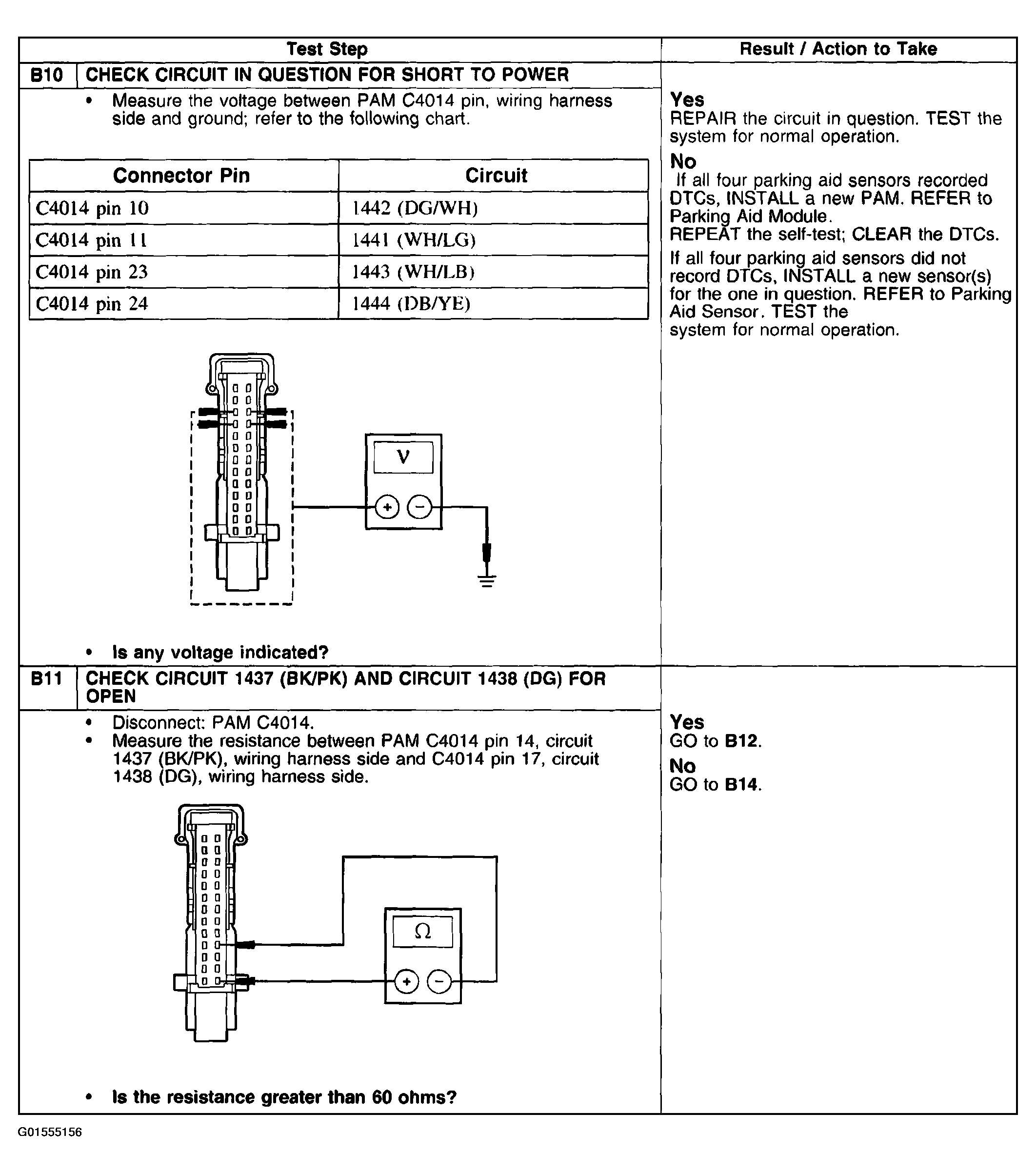

Fig 6: Pinpoint Test B: Parking Aid Is Inoperative (B10 & B11)

G01555156

Courtesy of FORD MOTOR CO.

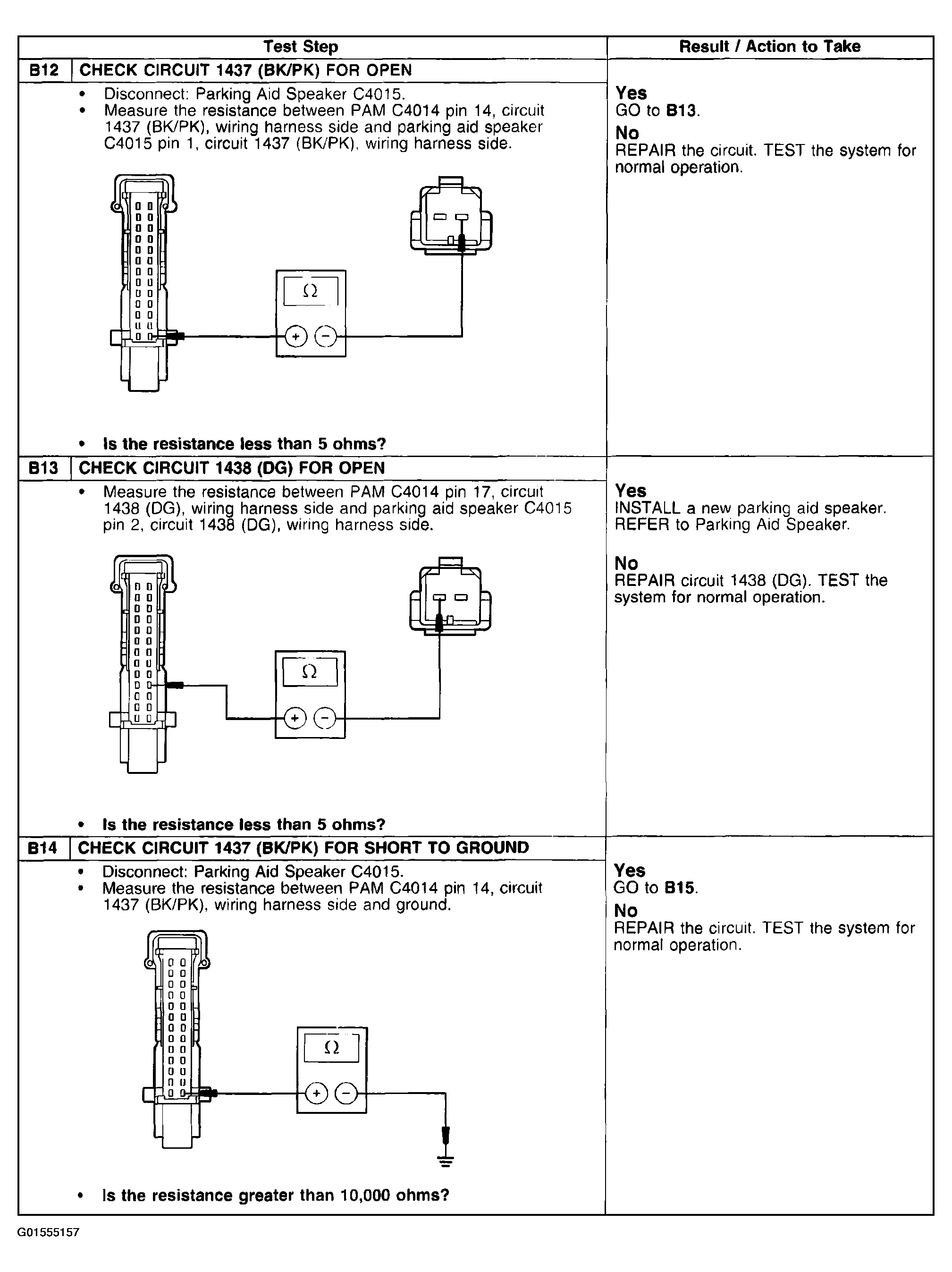

Fig 7: Pinpoint Test B: Parking Aid Is Inoperative (B12-B14)

G01555157

Courtesy of FORD MOTOR CO.

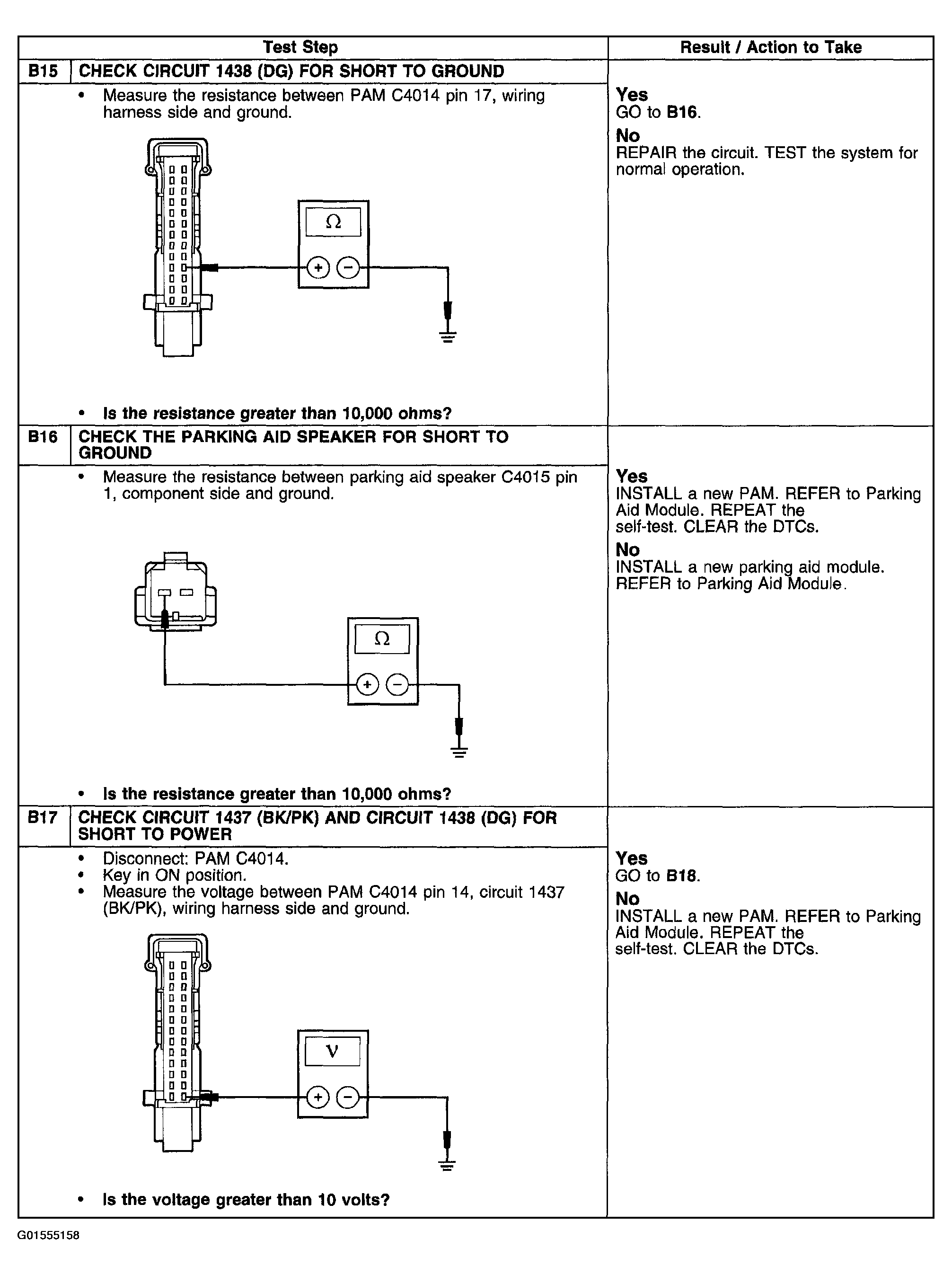

Fig 8: Pinpoint Test B: Parking Aid Is Inoperative (B15-B17)

G01555158

Courtesy of FORD MOTOR CO.

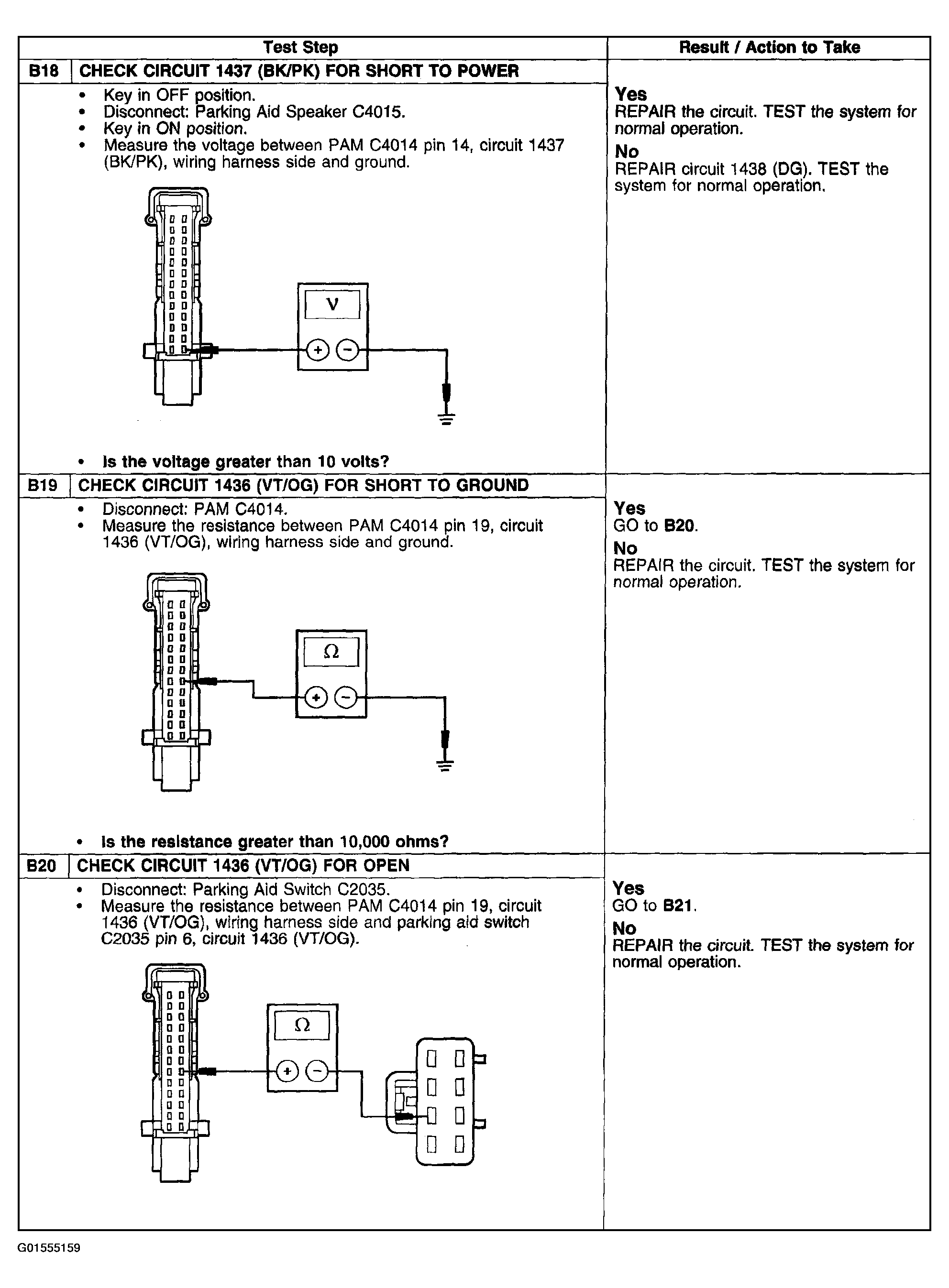

Fig 9: Pinpoint Test B: Parking Aid Is Inoperative (B18-B20)

G01555159

Courtesy of FORD MOTOR CO.

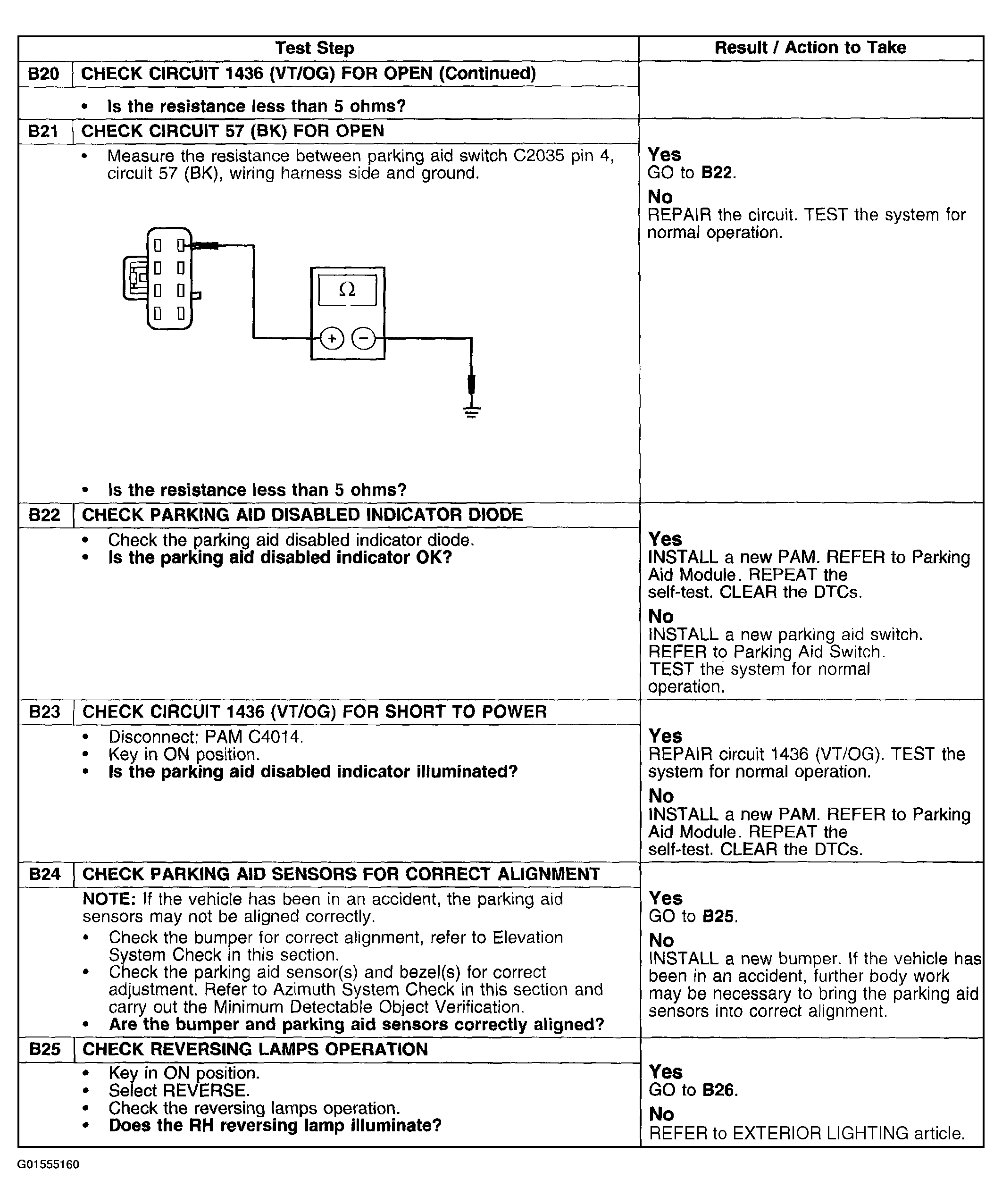

Fig 10: Pinpoint Test B: Parking Aid Is Inoperative (B20-B25)

G01555160

Courtesy of FORD MOTOR CO.

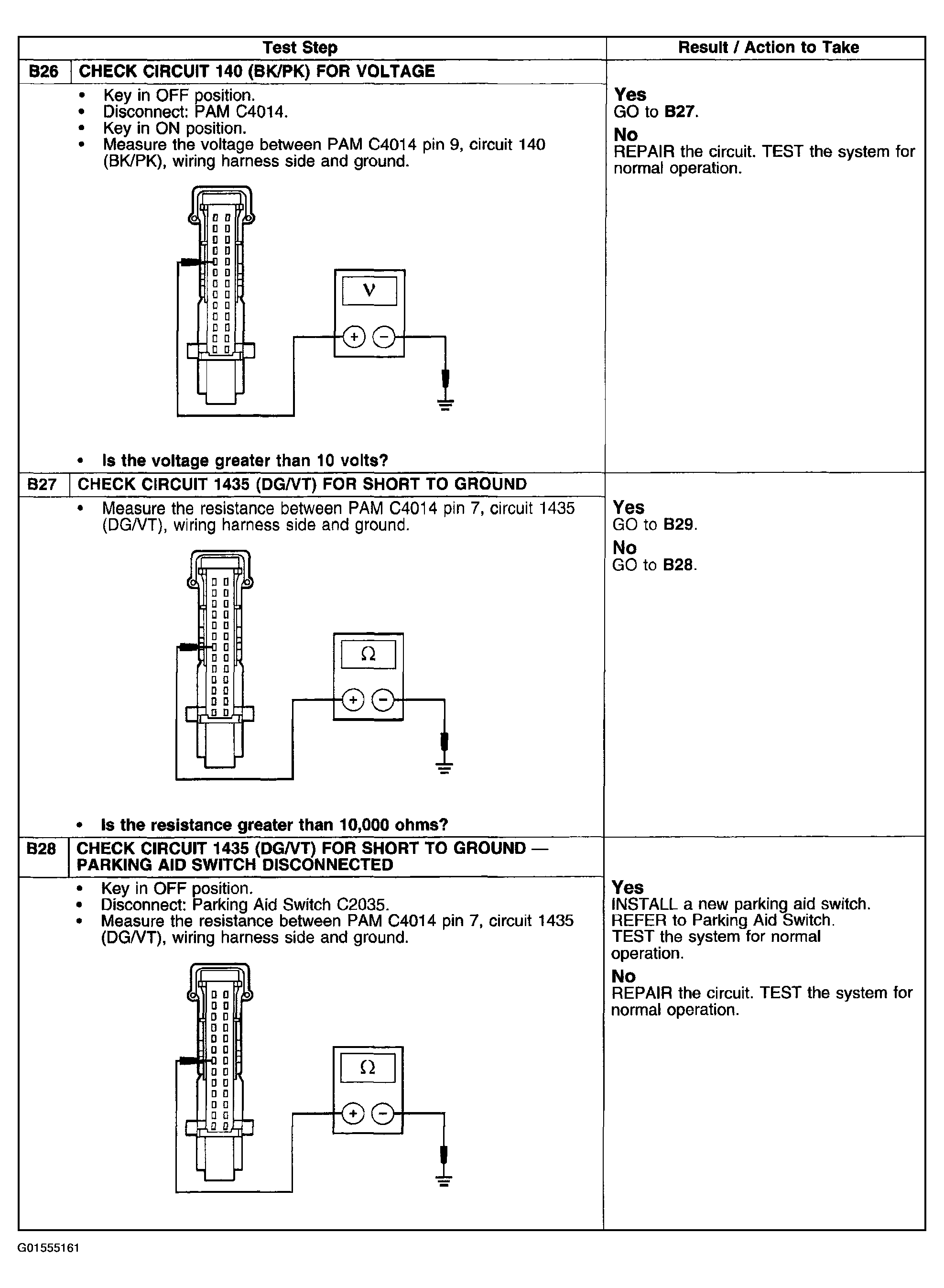

Fig 11: Pinpoint Test B: Parking Aid Is Inoperative (B26-B28)

G01555161

Courtesy of FORD MOTOR CO.

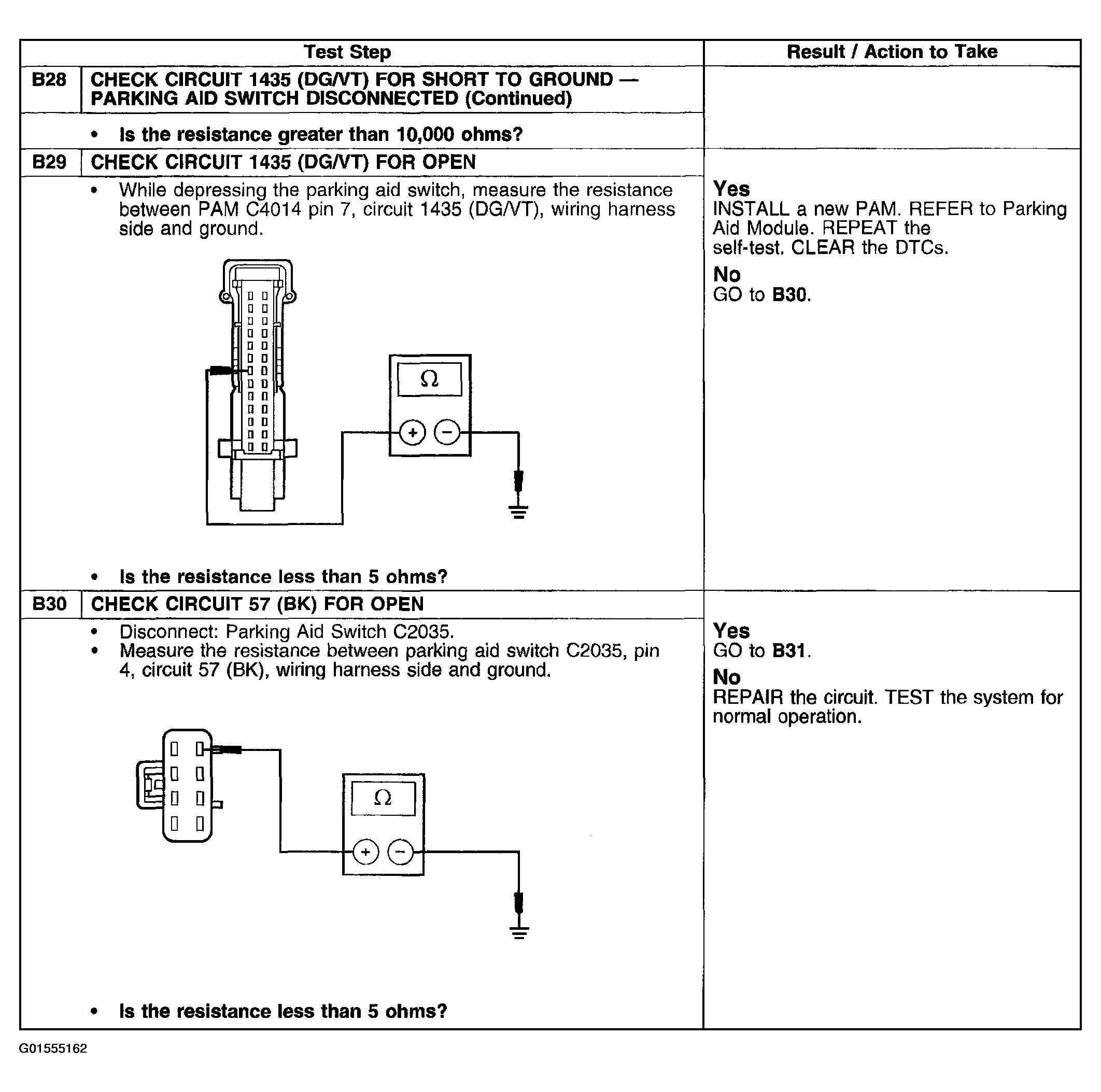

Fig 12: Pinpoint Test B: Parking Aid Is Inoperative (B28 Cont.-B30)

G01555162

Courtesy of FORD MOTOR CO.

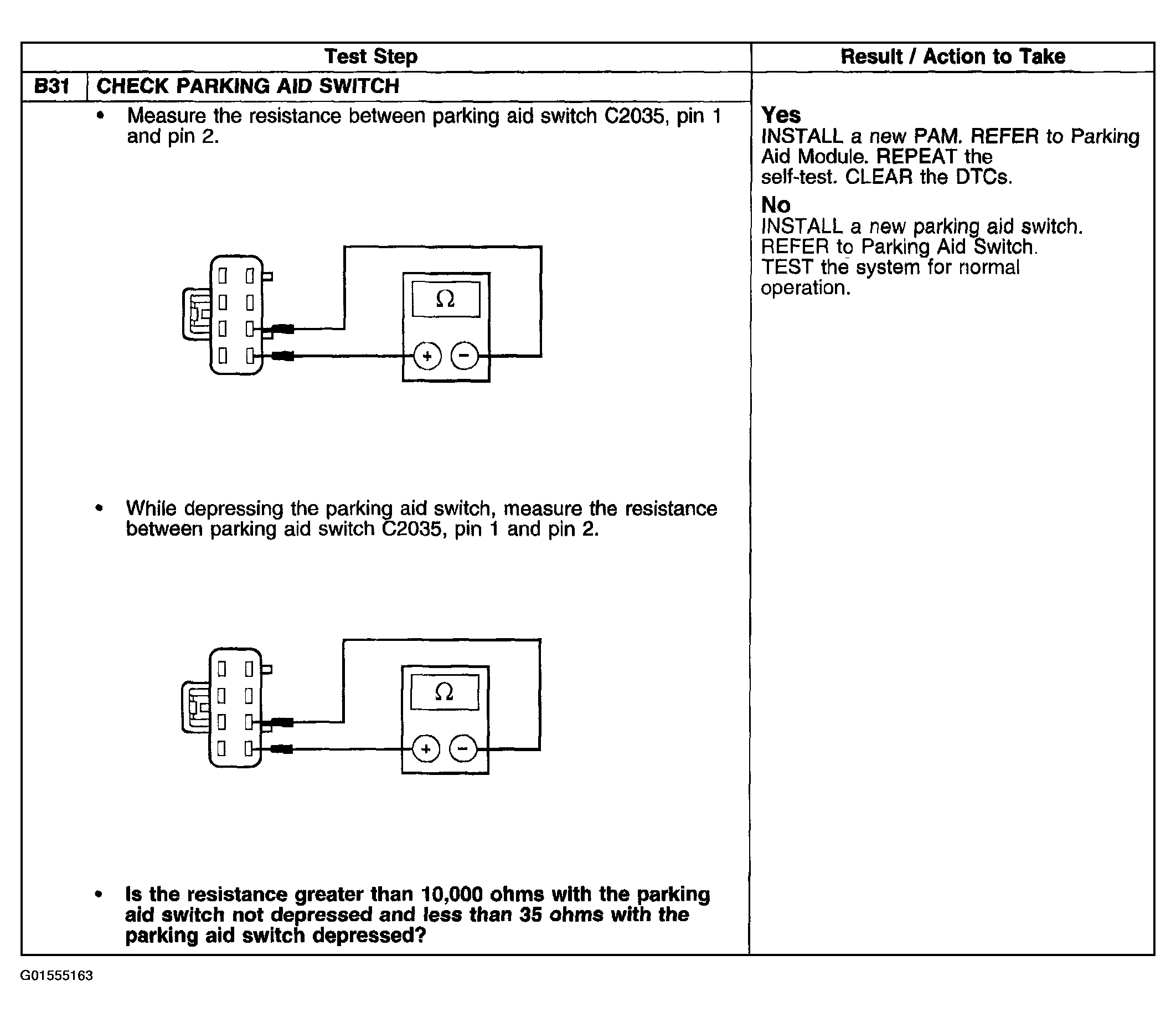

Fig 13: Pinpoint Test B: Parking Aid Is Inoperative (B31)

G01555163

Courtesy of FORD MOTOR CO.
