Pinpoint Test A: No Communication With Parking Aid Module (PAM)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

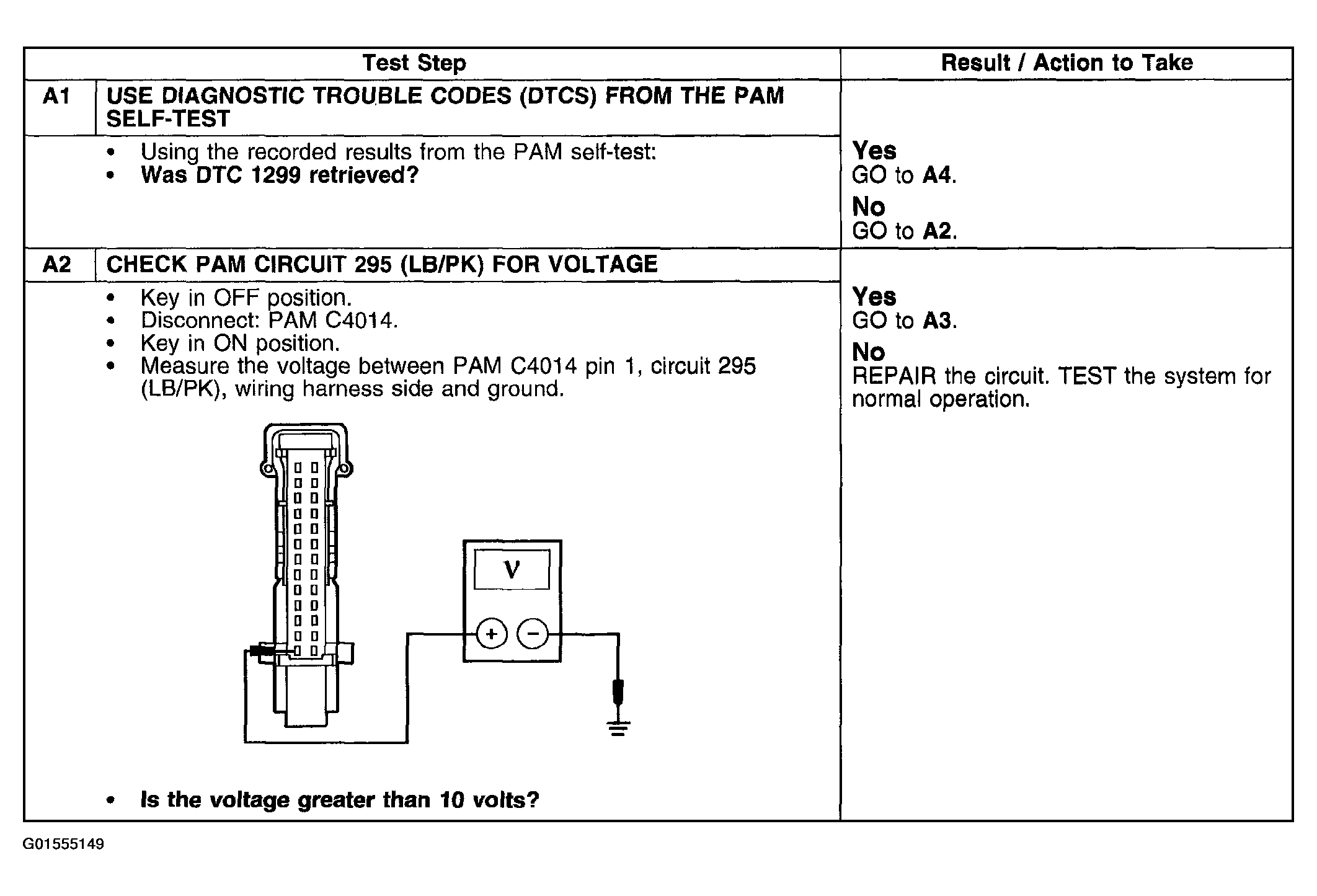

Fig 1: Pinpoint Test A: No Communication With Parking Aid Module (PAM) (A1 & A2)
G01555149Courtesy of FORD MOTOR CO.

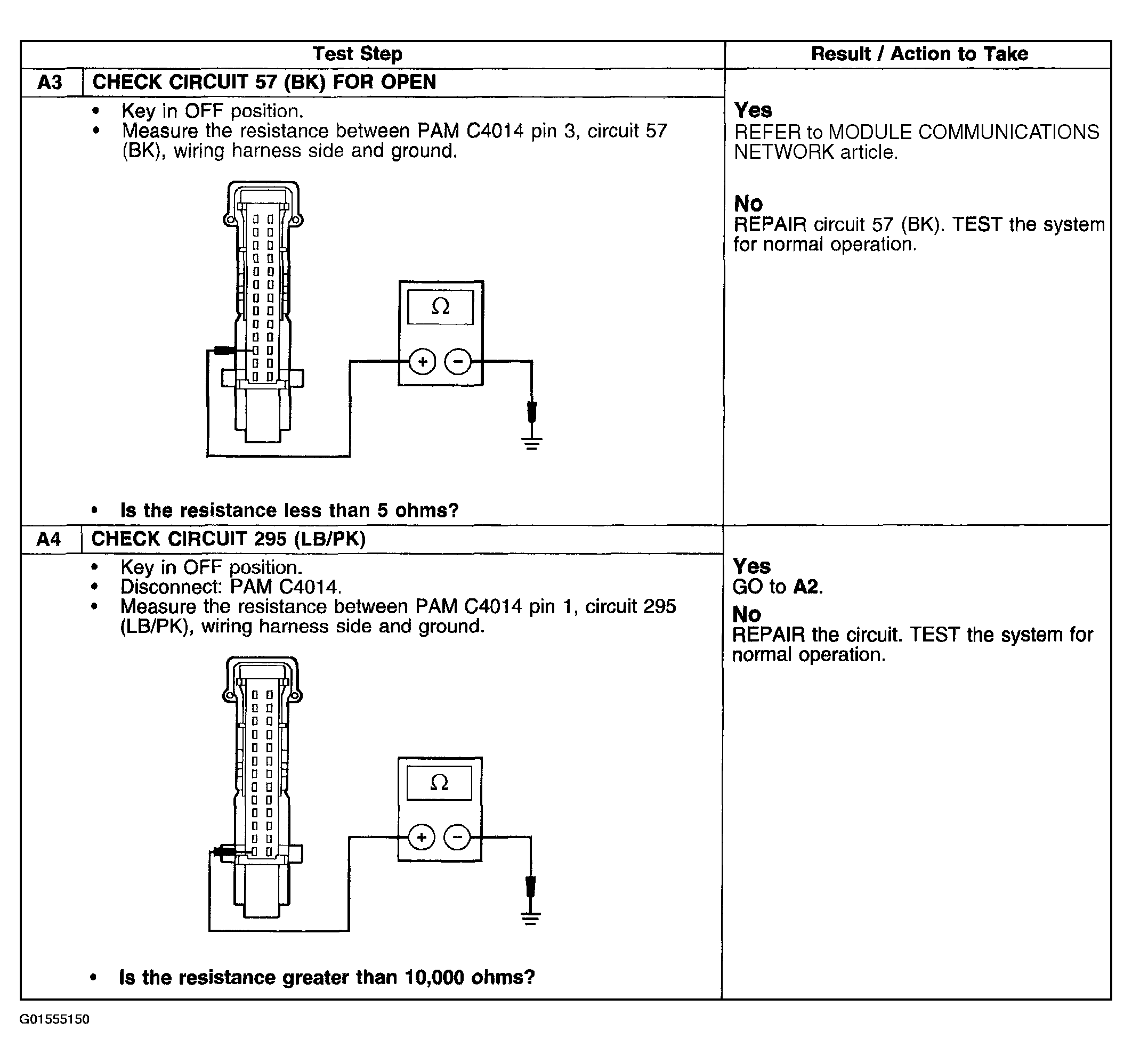

Fig 2: Pinpoint Test A: No Communication With Parking Aid Module (PAM) (A3 & A4)
G01555150Courtesy of FORD MOTOR CO.
