Pinpoint Test C: A Chime Is Inoperative-Head/Parking Lamps On (With Door Ajar)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

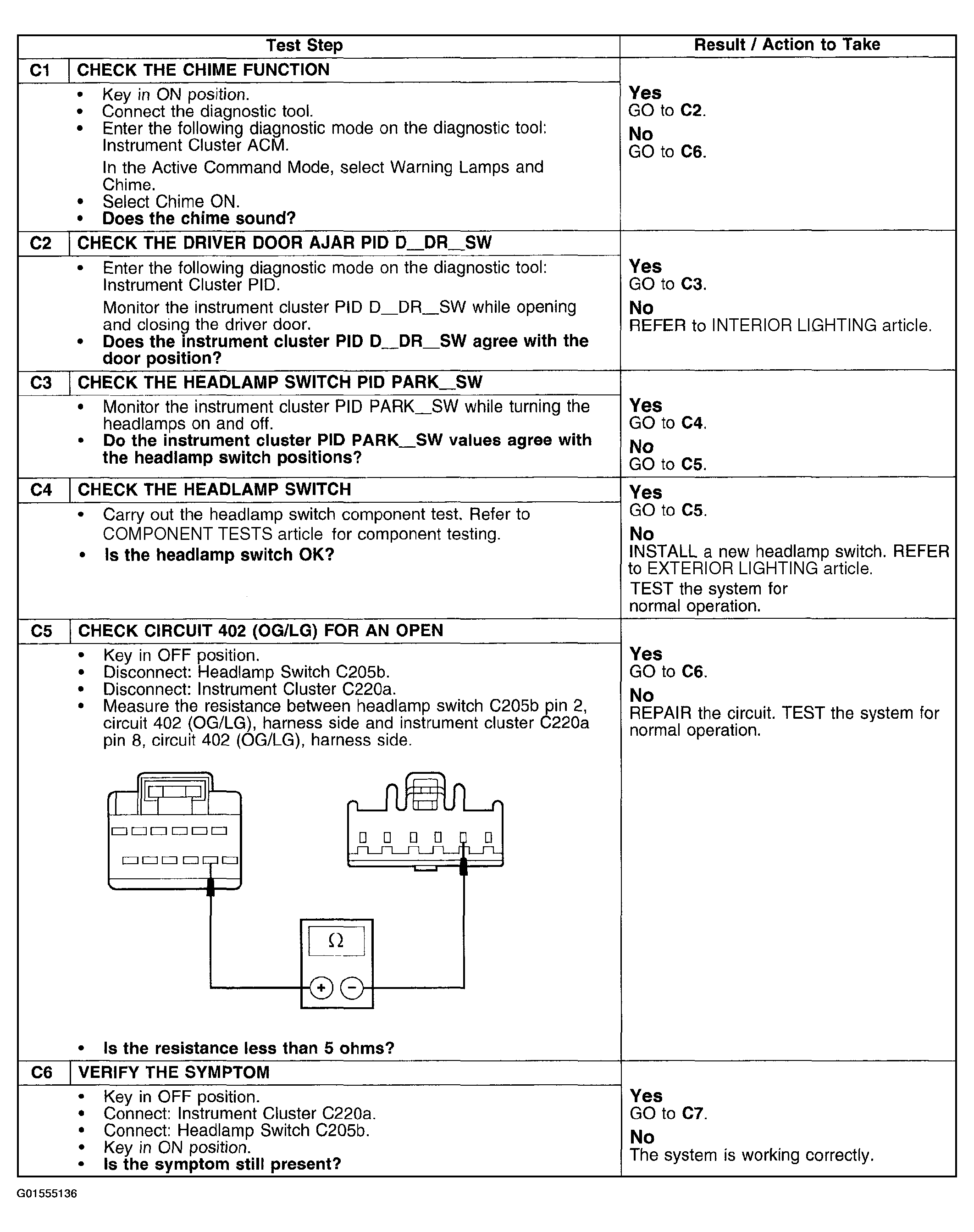

Fig 1: Pinpoint Test C: A Chime Is Inoperative-Head/Parking Lamps On (With Door Ajar) (C1-C6)
G01555136Courtesy of FORD MOTOR CO.

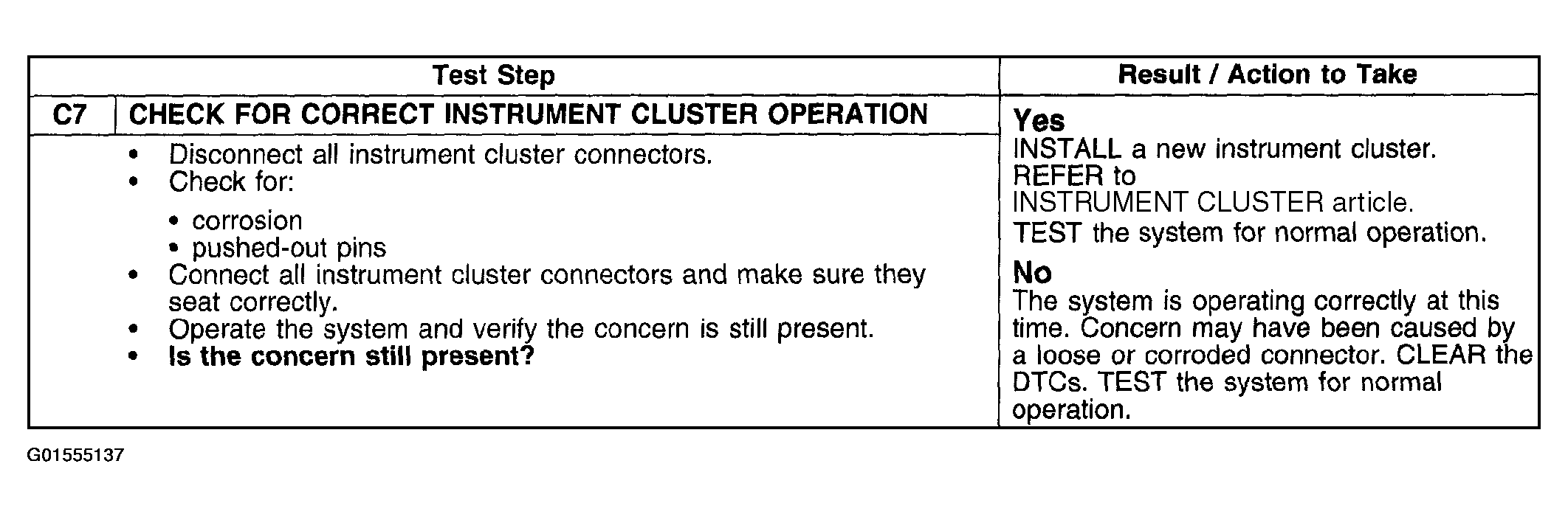

Fig 2: Pinpoint Test C: A Chime Is Inoperative-Head/Parking Lamps On (With Door Ajar) (C7)
G01555137Courtesy of FORD MOTOR CO.
