Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The OTC must be reconfigured upon new installation. Refer to the scan tool help screen on the Ford Service Functions card to program the fuel tank size.

Pull the front of the overhead console down to remove the console.

Fig 1: Pulling Front Of Overhead Console
Courtesy of FORD MOTOR CO.
Remove the message center assembly.
1. Disconnect the electrical connector.
2. Remove the message center assembly.

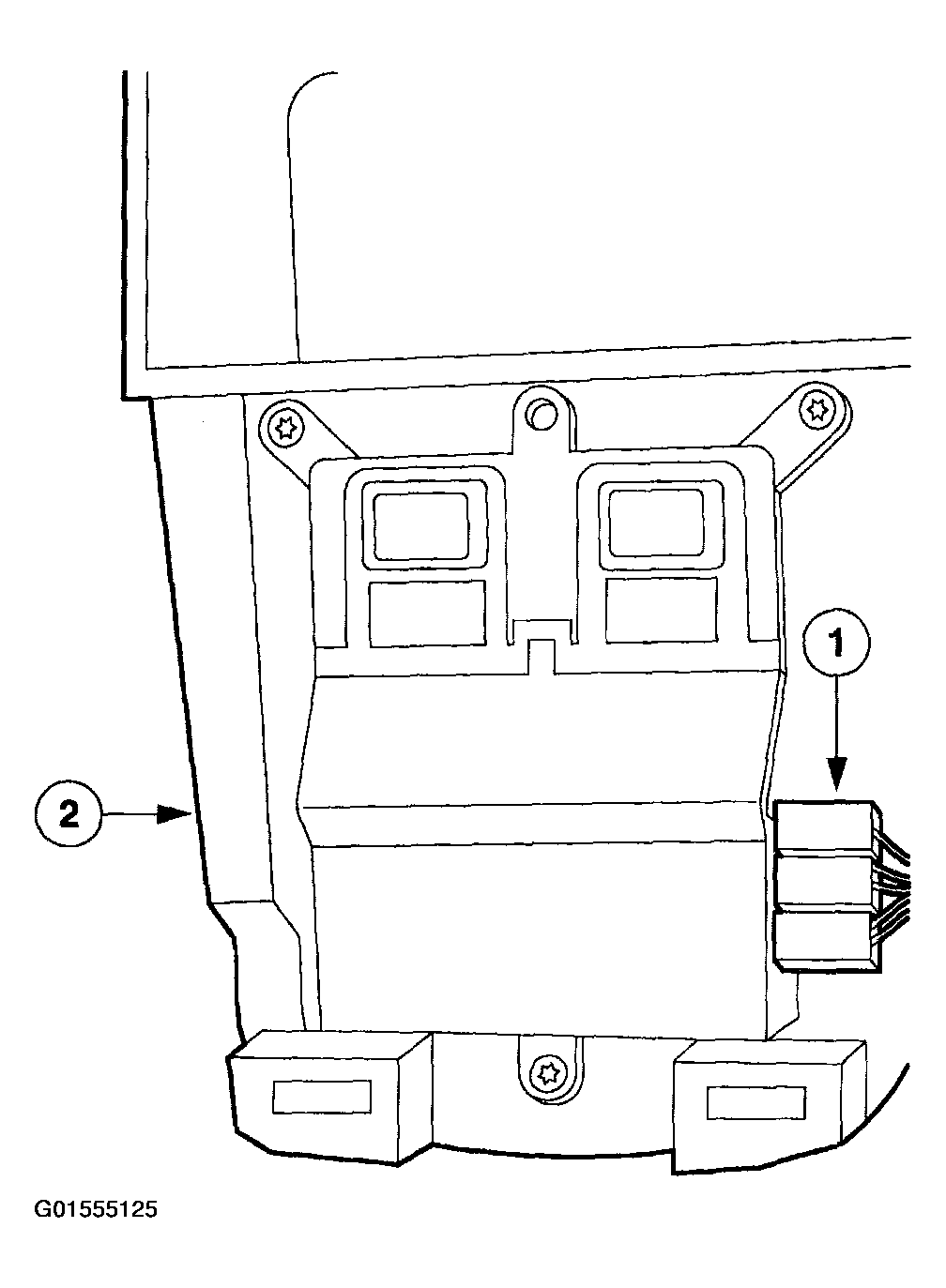

  Fig 2: Removing Message Center Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
