Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Open the overhead sunglasses compartment and remove the screw.

Fig 1: Opening Overhead Sunglasses Compartment
Courtesy of FORD MOTOR CO.
Grasp the front of the overhead console and pull down to remove the console.

Fig 2: Grasping Front Of Overhead Console
Courtesy of FORD MOTOR CO.

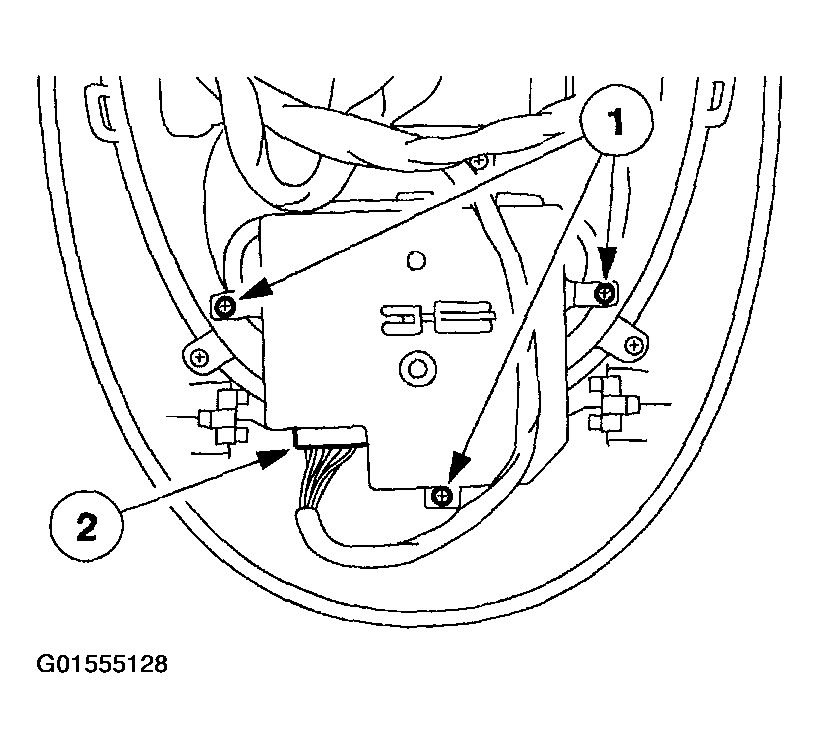

Remove the message center.
1. Remove the screws.
2. Disconnect the connector and remove the message center.

  Fig 3: Removing Screws
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
