Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. Refer to Instrument Cluster .
  2. Turn the warning indicator bulb 1/4-turn counterclockwise and remove the warning indicator bulbs.

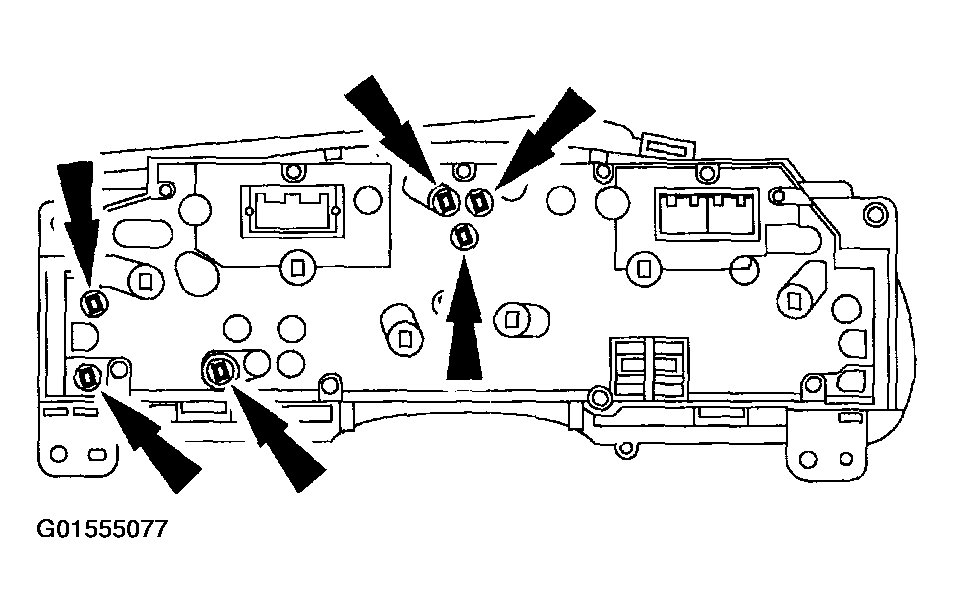

    Fig 1: Removing Warning Indicator Bulbs
    G01555077Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
