Instrument Cluster Self-Diagnostic Mode
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

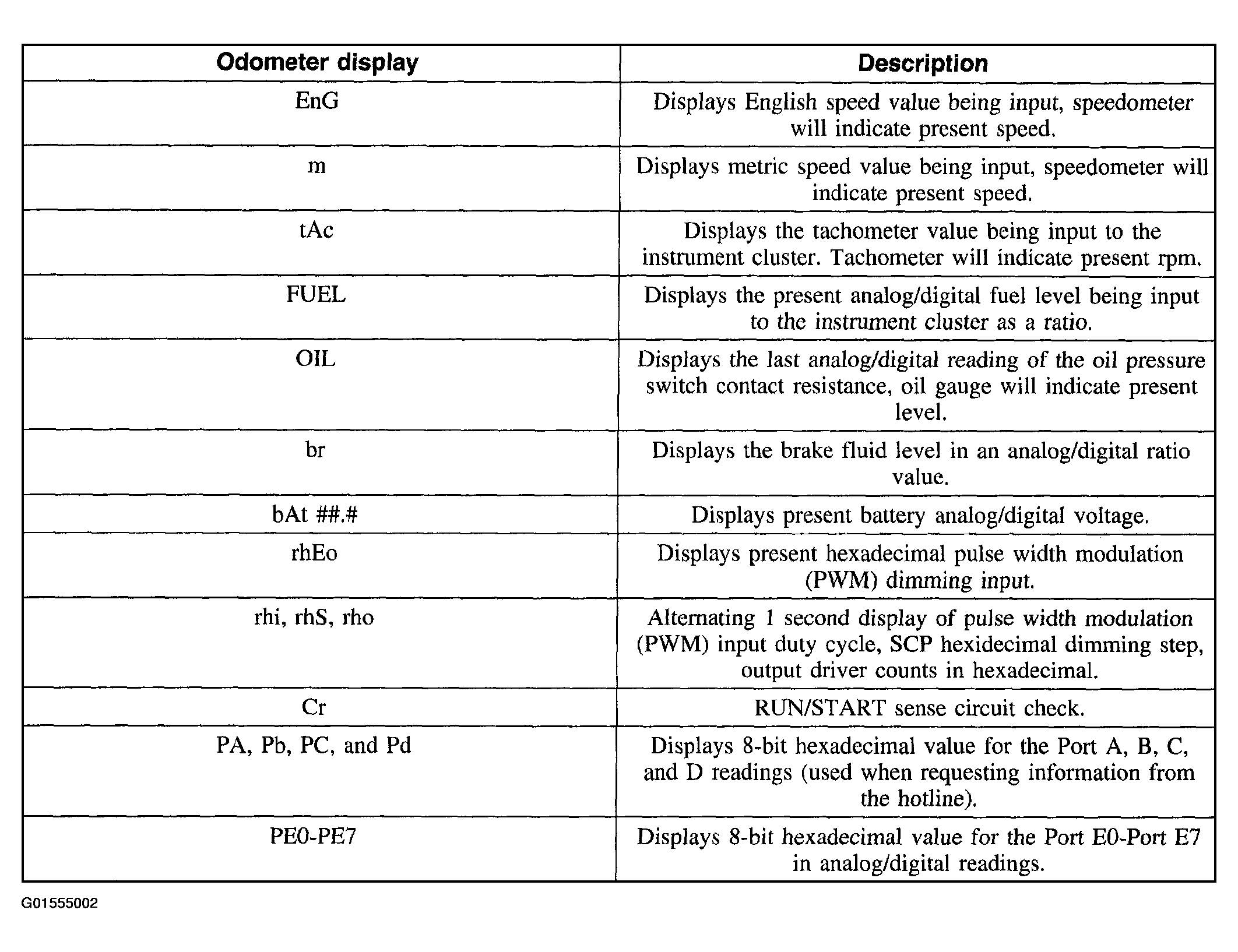

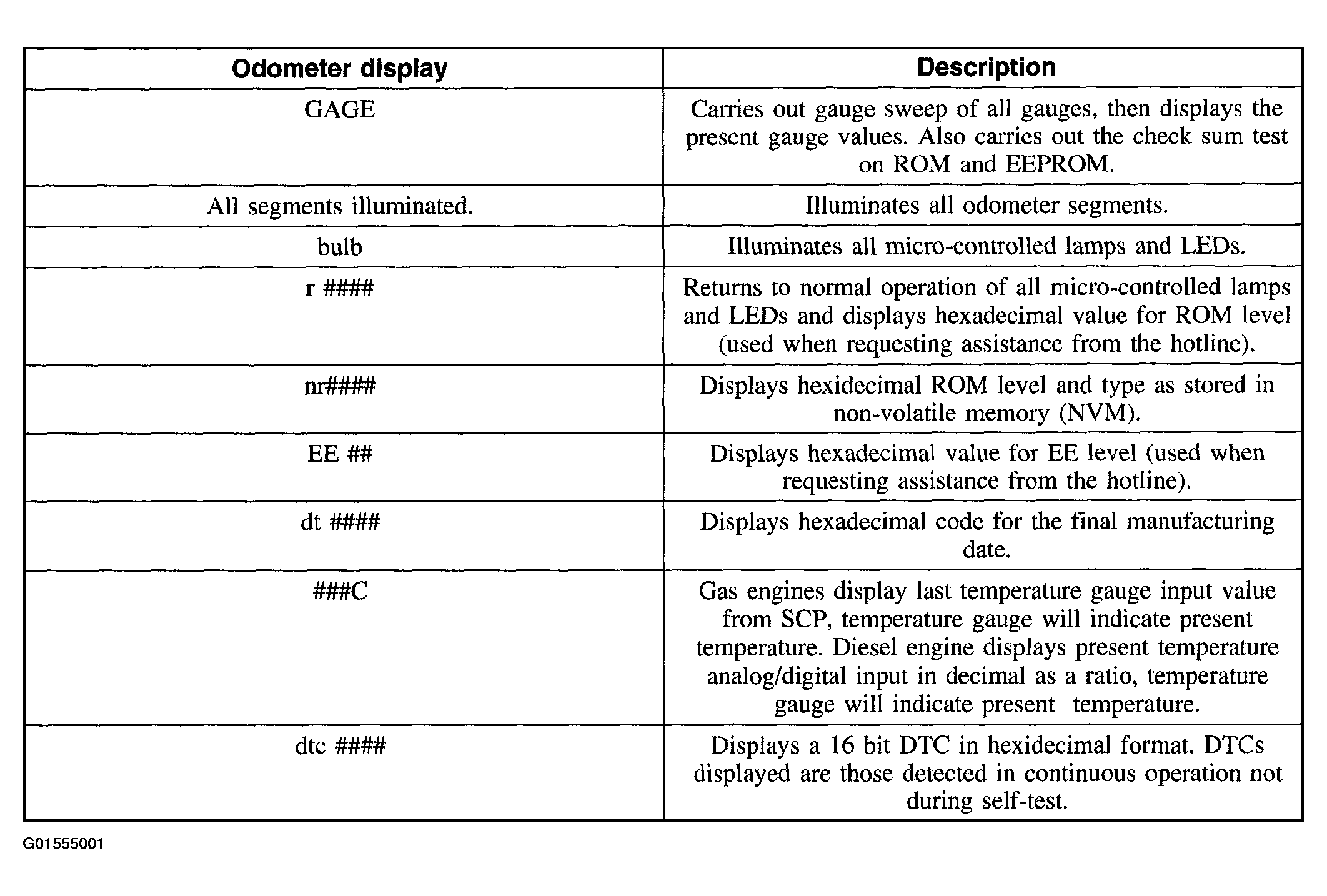

To enter the instrument cluster self diagnostic mode with the engine off, depress and hold the odometer reset button. Turn the ignition switch to the RUN position and hold until the gauges sweep (within five to eight seconds). Depress the reset button once to advance to each stage of the self-test.
Turn the ignition to the OFF position to exit the instrument cluster self-diagnostic mode. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
