Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster; refer to INSTRUMENT CLUSTER .
  2. Remove the illumination bulbs.

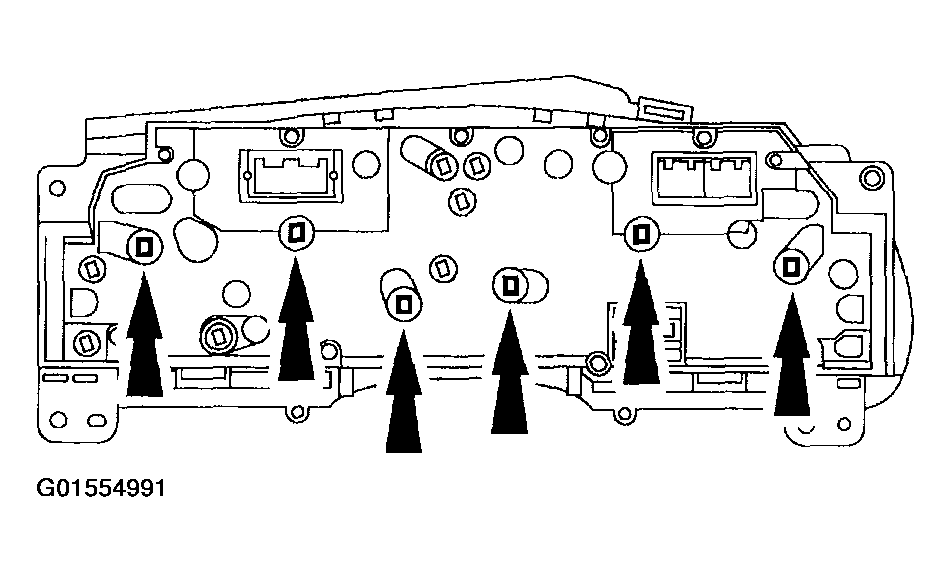

    Fig 1: Removing Illumination Bulbs
    G01554991Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
