Pinpoint Test A: Control Illumination Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

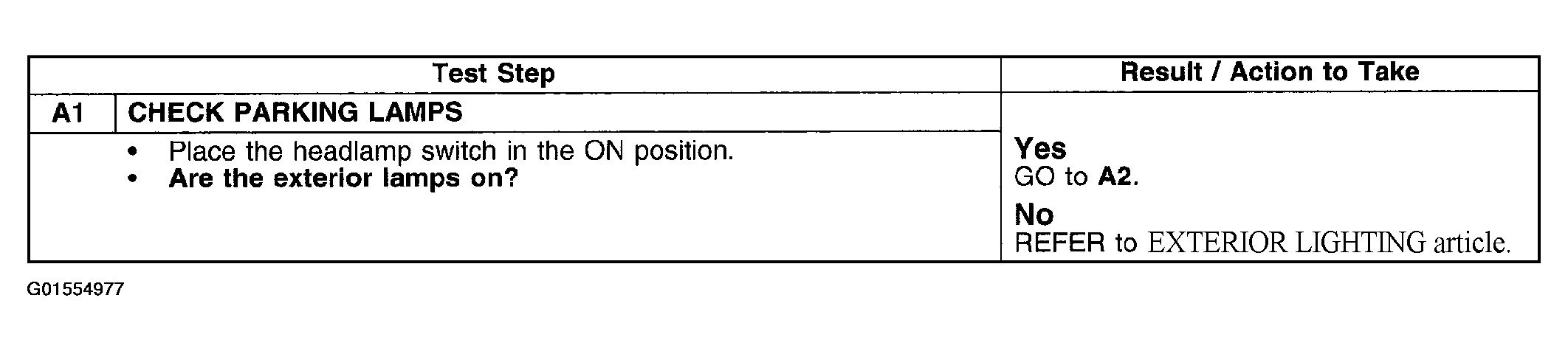

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1)
G01554977Courtesy of FORD MOTOR CO.

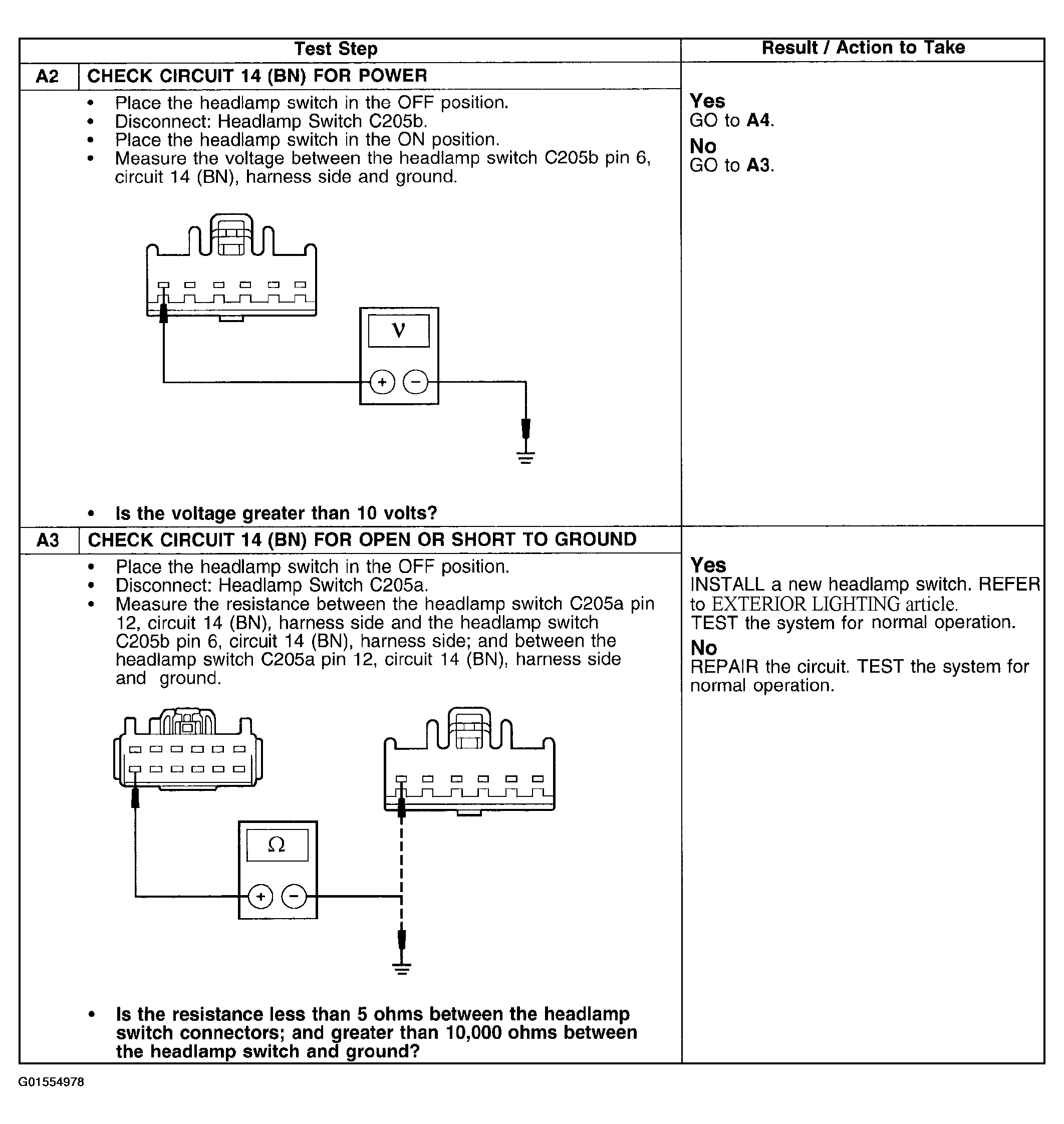

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A2 & A3)
G01554978Courtesy of FORD MOTOR CO.

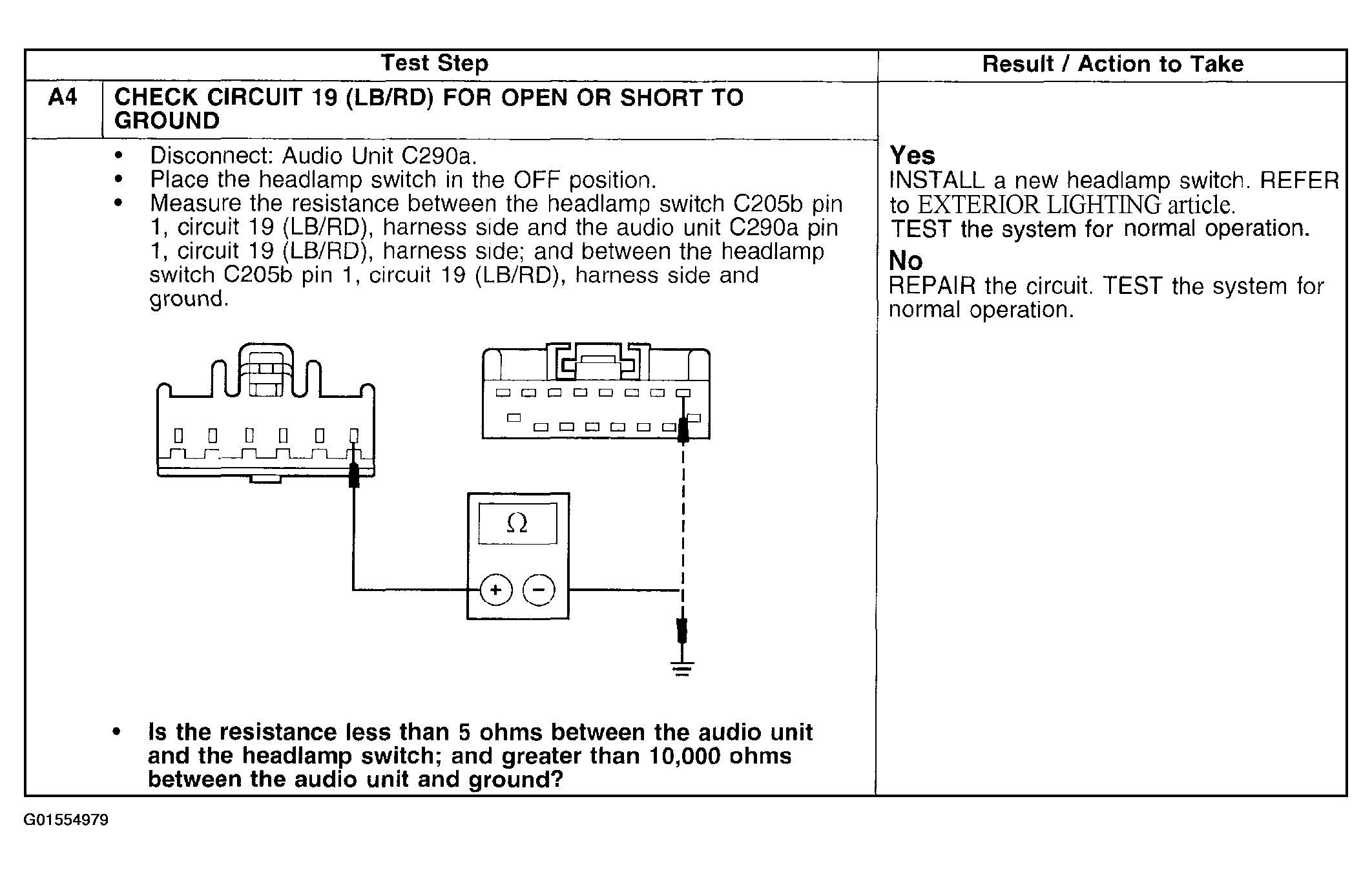

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (A4)
G01554979Courtesy of FORD MOTOR CO.
