Instrument Panel Illumination: Notes

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SYSTEM WIRING DIAGRAM for schematic and connector information.

Special Tool(s)

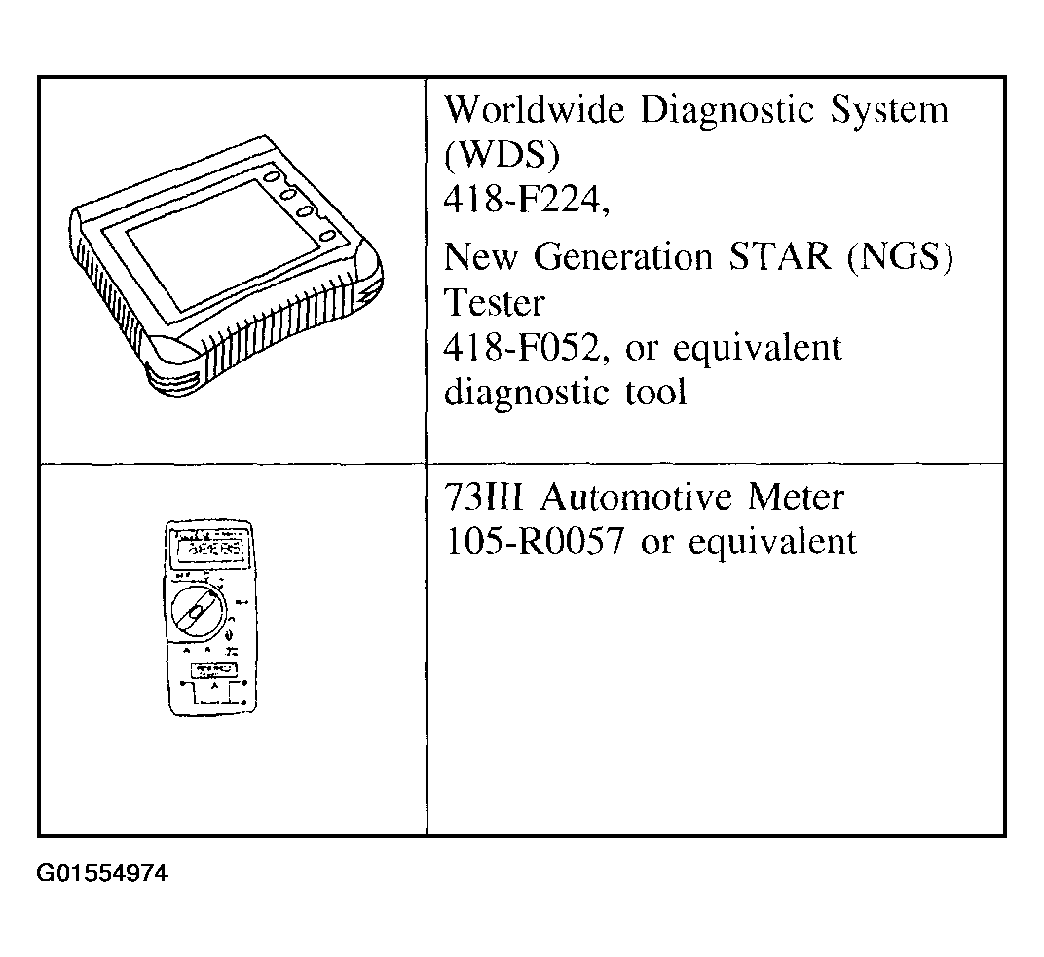

Fig 1: Identifying Special Tool
G01554974Courtesy of FORD MOTOR CO.
