Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
  2. Remove the access panel from the RH rear quarter trim panel.
  3. Remove the jack.
  4. Remove the A/C lines from the A/C evaporator expansion valve (19849).
    1. Disconnect the A/C lines from the A/C evaporator expansion valve.
    2. Disconnect the A/C evaporator expansion valve from the A/C evaporator core (19860).

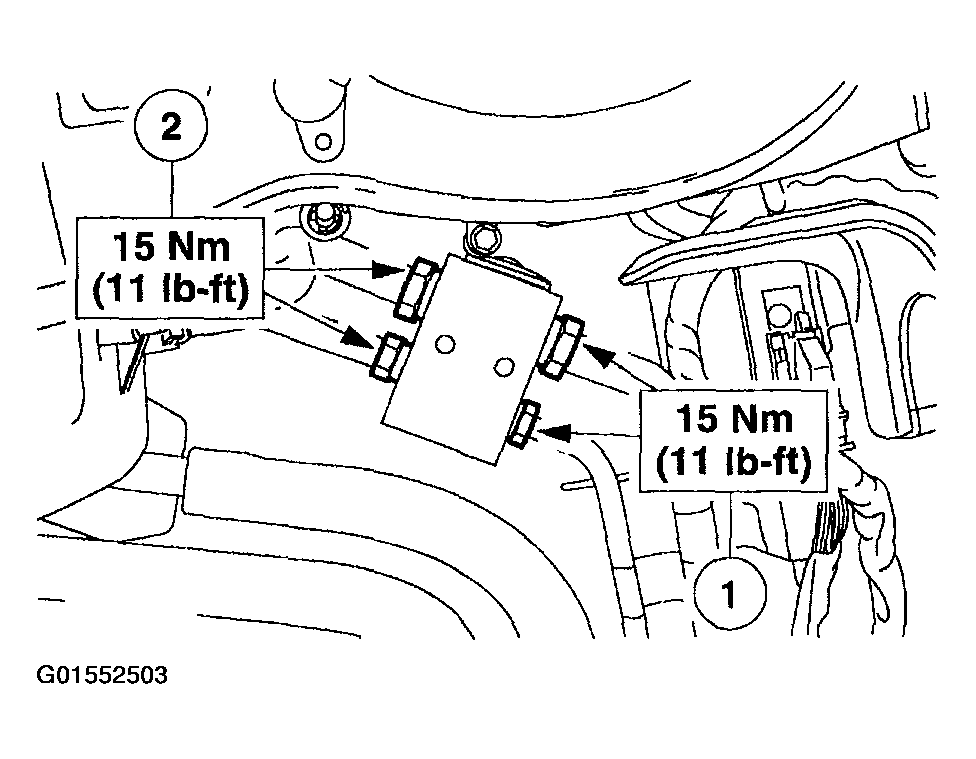

      Fig 1: Disconnecting A/C Evaporator Expansion Valve From A/C Evaporator Core
      G01552503Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    NOTE: Lubricate the O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
  6. Evacuate, leak test and charge the A/C system. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
