Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air conditioning and heater assembly (18D283). Refer to Air Conditioning and Heater Assembly .
Remove the blend door actuator and the mode door actuator.
NOTE: The temperature blend door actuator (19E616) is shown; the mode door actuator is similar.

Fig 1: Removing Blend Door Actuator And Mode Door Actuator
Courtesy of FORD MOTOR CO.
Remove the A/C evaporator core (19860).

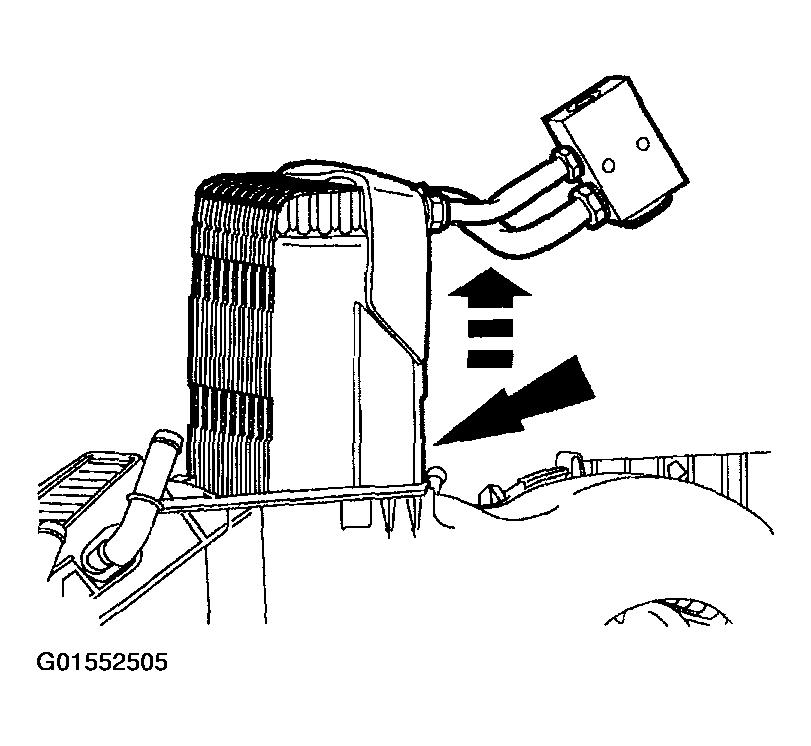

Fig 2: Removing A/C Evaporator Core (19860)
Courtesy of FORD MOTOR CO.
Disassemble the case.
Remove the temperature blend door.

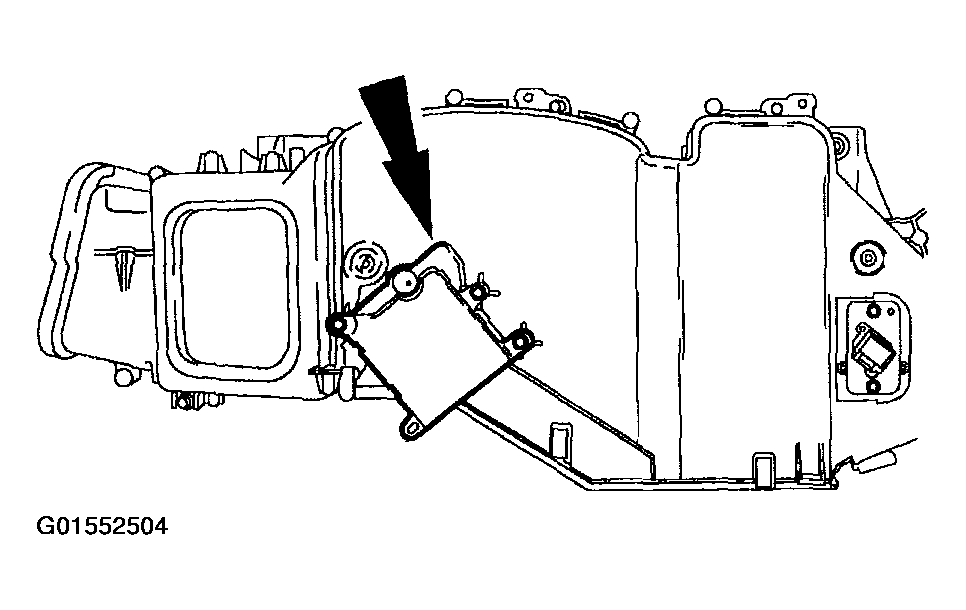

Fig 3: Removing Temperature Blend Door
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: Make sure to correctly assemble and seal the air conditioning and heater assembly to allow efficient operation of the auxiliary climate control system.
