Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the access panel from the RH rear quarter trim panel.
Remove the blower motor (18527).
1. Disconnect the electrical connector.
2. Remove the blower motor breather.
3. Remove the blower motor screws.
4. Remove the blower motor.

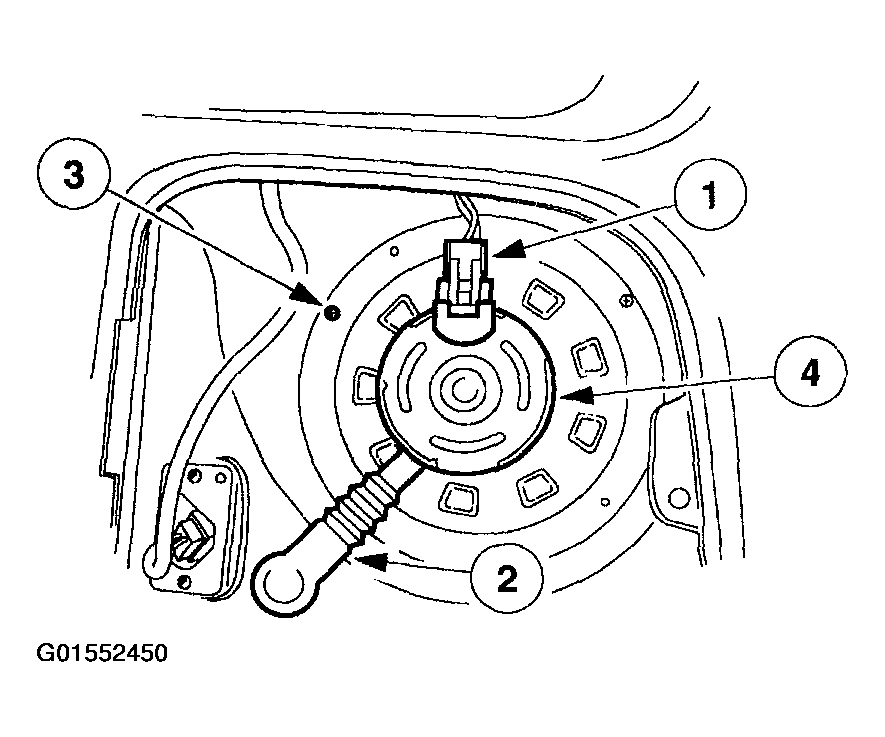

  Fig 1: Identifying Blower Motor Component
  Courtesy of FORD MOTOR CO.
Remove the blower motor wheel (18504) from the blower motor.
1. Remove the push clip.
2. Remove the blower motor wheel.

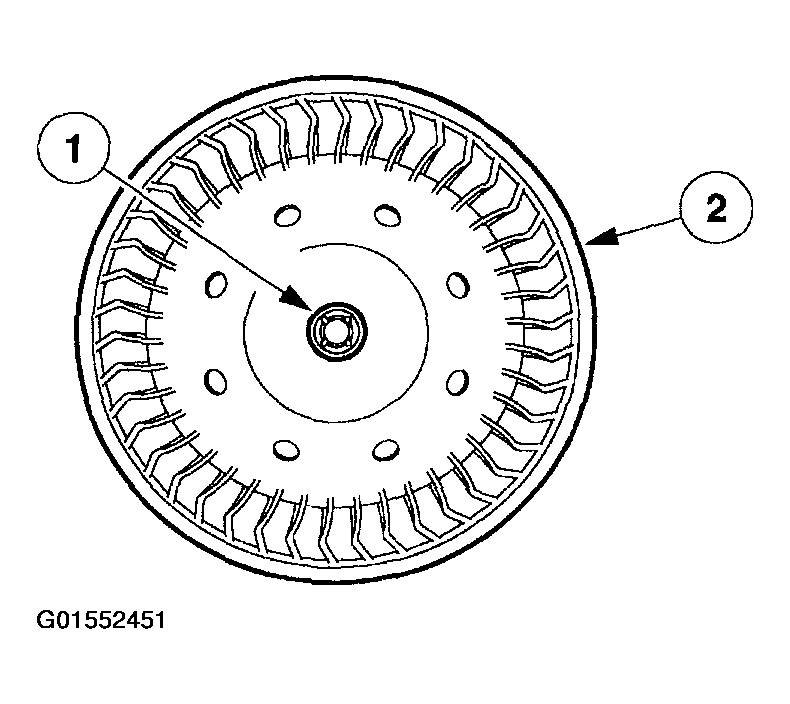

  Fig 2: Identifying Blower Wheel Motor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: Install a new push clip when reinstalling the blower motor wheel to the blower motor.
