Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screw, disengage the clips, and lower the overhead console (519A58).

Fig 1: Removing Screw, Disengaging Clips, And Lower The Overhead Console (519A58)
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

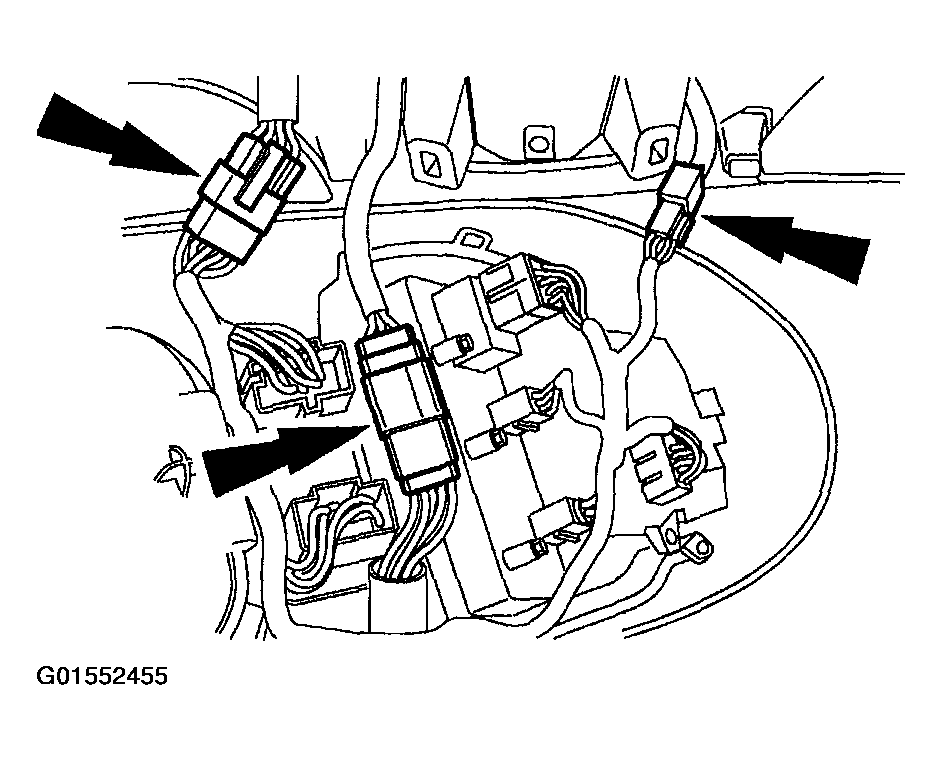

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the climate control assembly from the overhead console.
1. Disconnect the electrical connectors.
2. Remove the 2 screws.
3. Remove the climate control assembly.

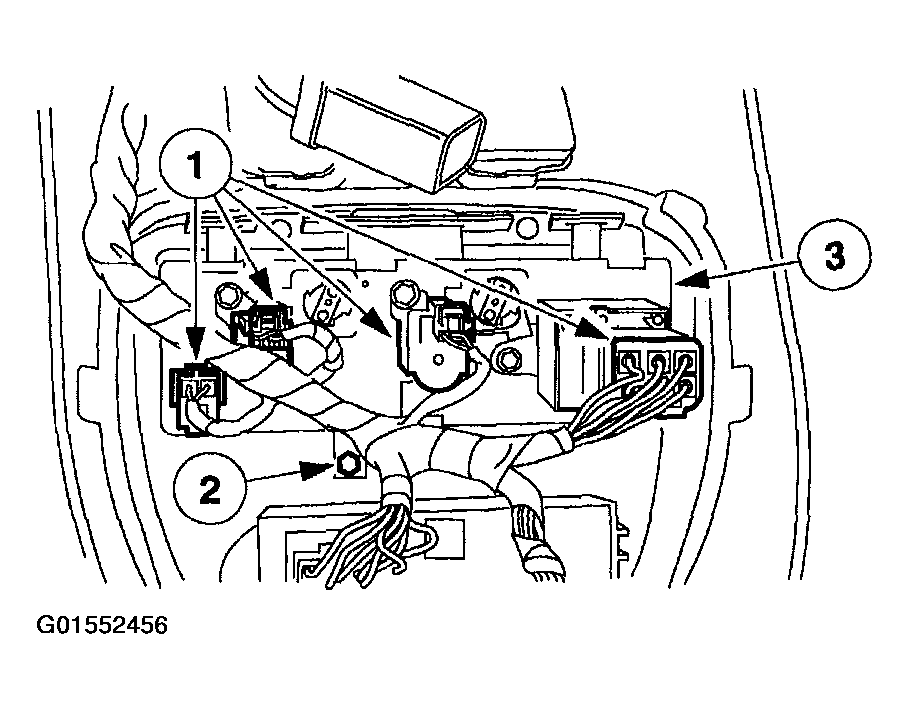

  Fig 3: Removing Climate Control Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
