Shaft Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

CAUTION: Do not allow dirt or other foreign materials to enter the A/C compressor.

Clean the A/C compressor nose area.
Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with PAG oil or equivalent.

Fig 1: Locating Shaft Seal On Special Tool
Courtesy of FORD MOTOR CO.

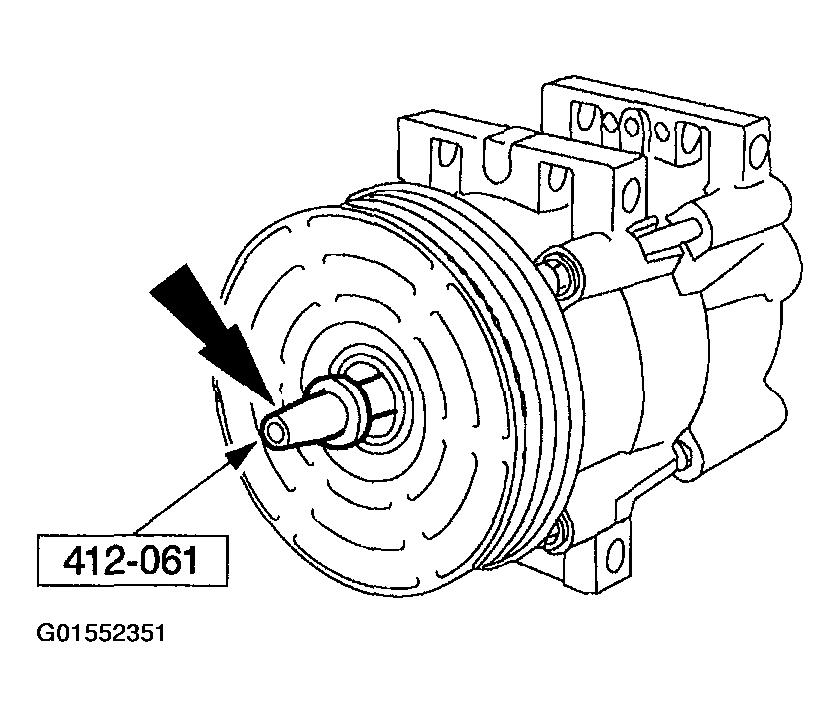

Position the shaft seal and the special tool over the A/C compressor shaft.

Fig 2: Attaching Special Tool
Courtesy of FORD MOTOR CO.

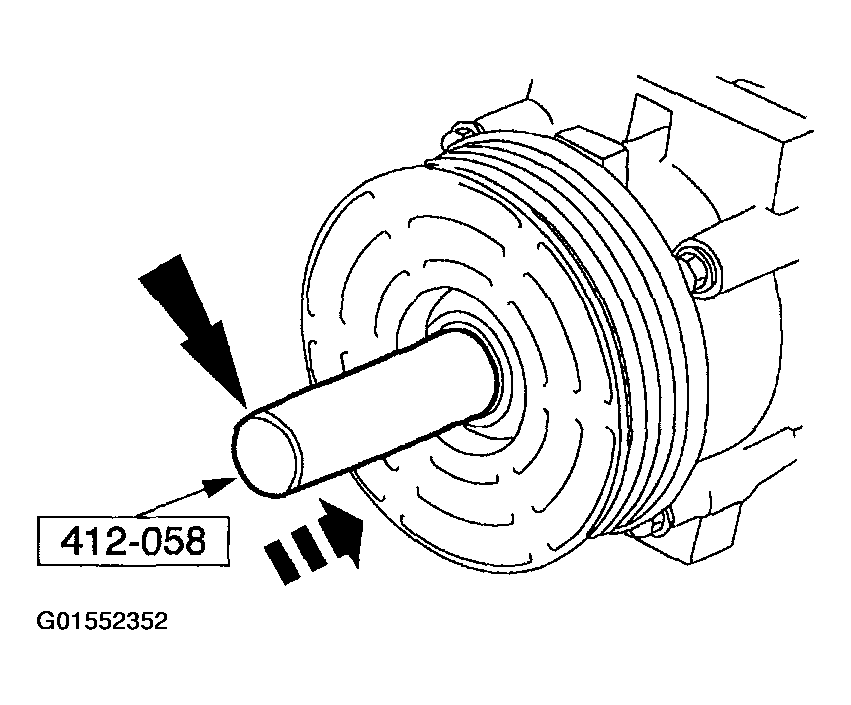

Push the shaft seal onto the A/C compressor shaft with the special tool until seated.

Fig 3: Pushing Shaft Seal
Courtesy of FORD MOTOR CO.

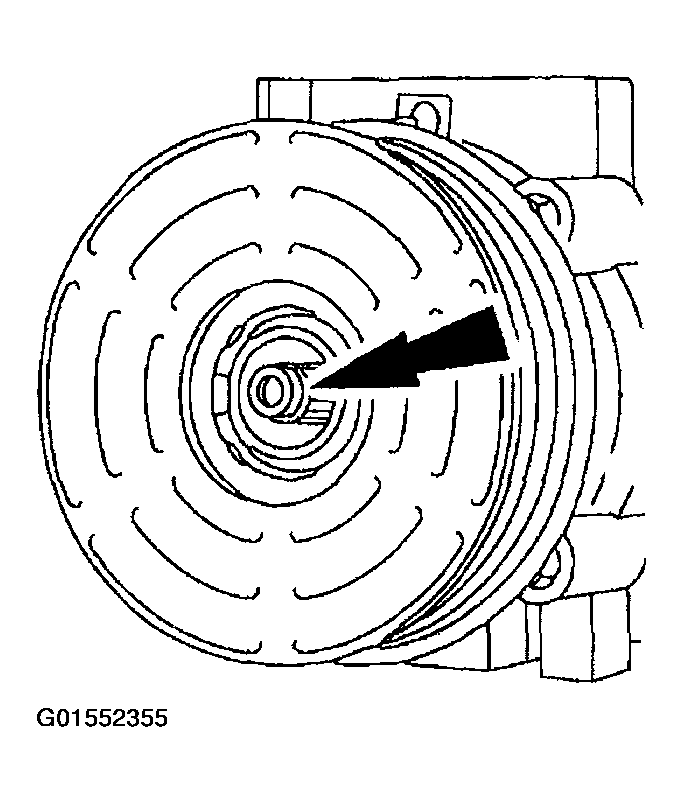

Install the shaft seal snap ring.

Fig 4: Locating Shaft Seal Snap Ring
Courtesy of FORD MOTOR CO.
Carry out the A/C compressor external leak test. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .

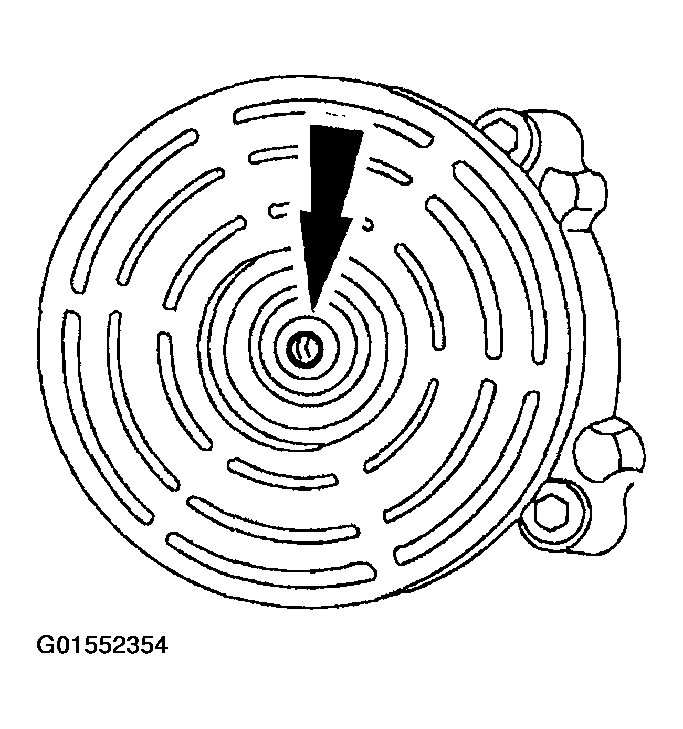

Install the shaft seal felt.

Fig 5: Locating Shaft Seal Felt
Courtesy of FORD MOTOR CO.
Place one nominal thickness A/C clutch disc and hub spacer in the clutch hub spline opening.

Fig 6: Placing Hub Spacer
Courtesy of FORD MOTOR CO.

5.4L, 6.0L diesel and 6.8L vehicles

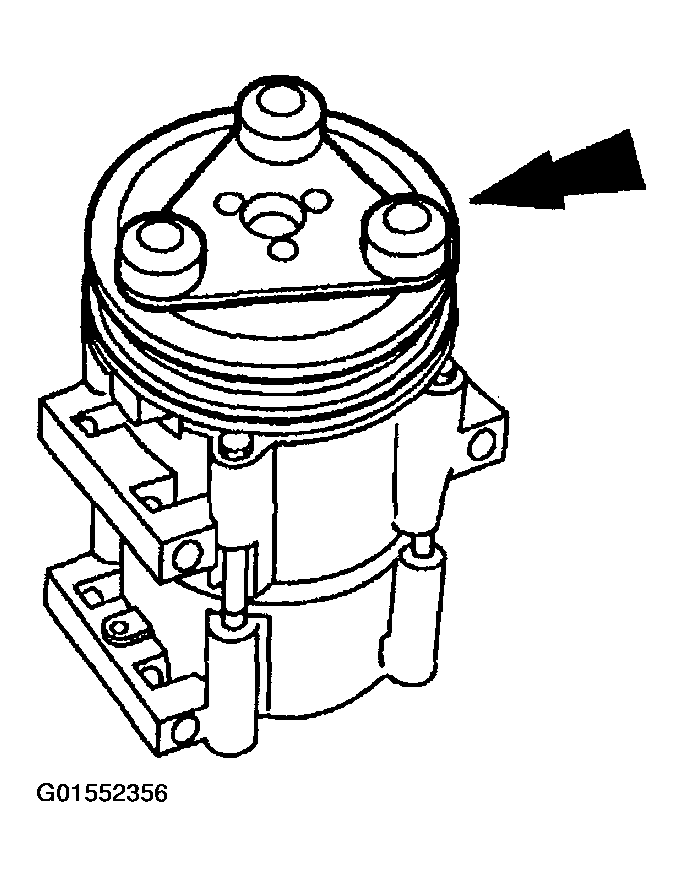

Install the A/C clutch disc and hub.

Fig 7: Locating A/C Clutch Disc And Hub - 5.4L, 6.0L Diesel And 6.8L Vehicles
Courtesy of FORD MOTOR CO.

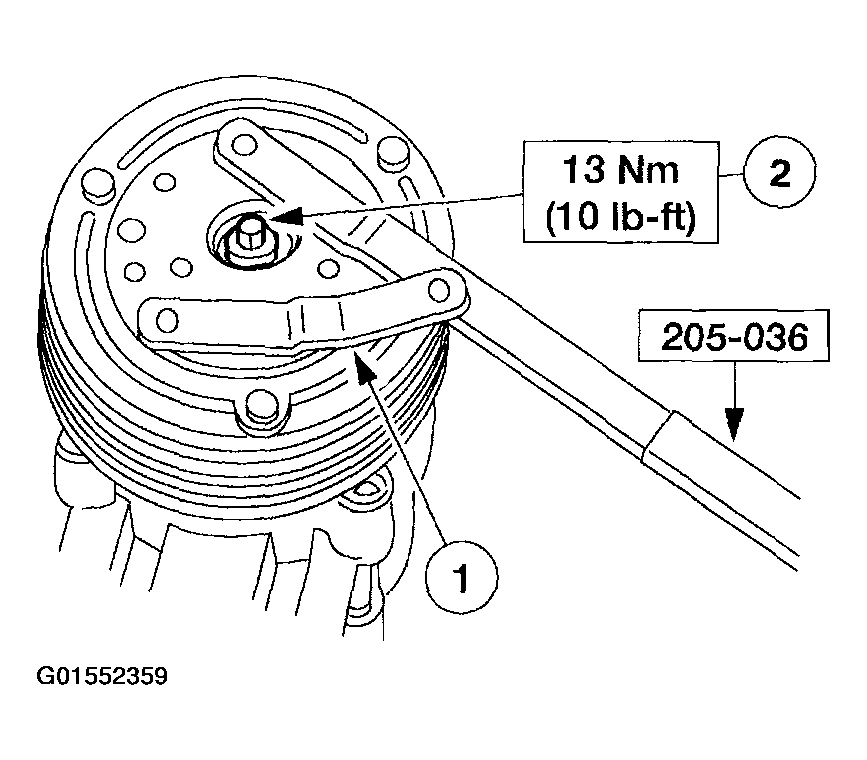

Install the A/C clutch disc and hub retaining bolt.
1. Hold the A/C clutch disc and hub with the special tool.
2. Tighten the bolt.

  Fig 8: Installing A/C Clutch Disc And Hub Retaining Bolt With Torque Specifications
  Courtesy of FORD MOTOR CO.
7.3L diesel vehicles

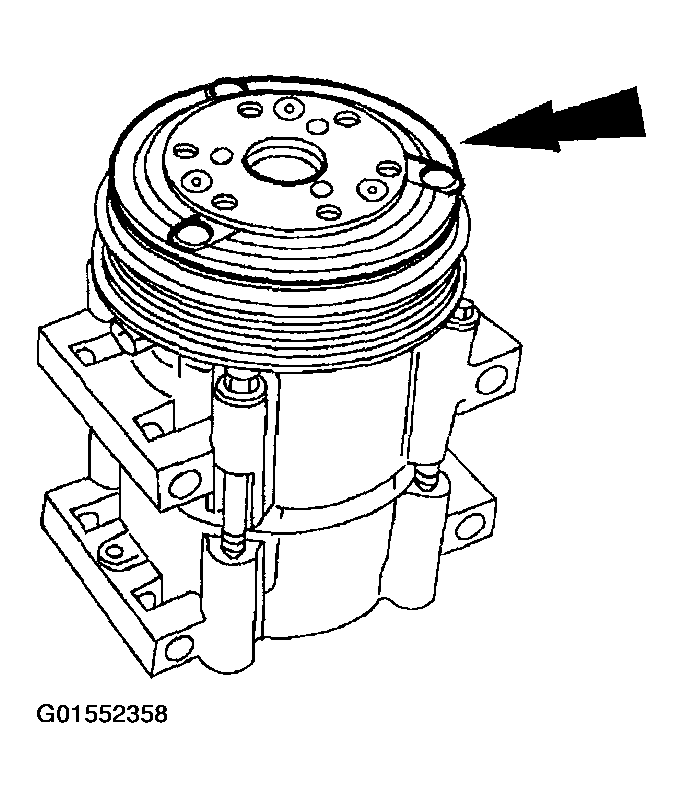

Install the A/C clutch disc and hub.

Fig 9: Locating A/C Clutch Disc And Hub - 7.3L Diesel Vehicles
Courtesy of FORD MOTOR CO.
Install the A/C clutch disc and hub retaining bolt.
1. Using the special tool, hold the A/C clutch disc and hub.
2. Tighten the bolt.

  Fig 10: Installing A/C Clutch Disc And Hub Retaining Bolt With Torque Specifications
  Courtesy of FORD MOTOR CO.
All vehicles

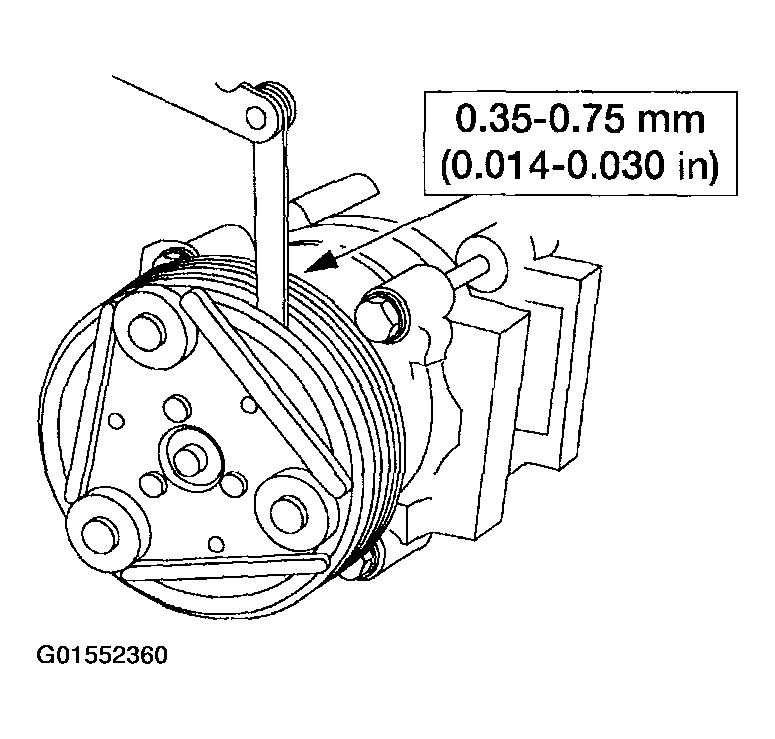

Measure and adjust the clutch air gap by removing or adding A/C clutch disc and hub spacers.

Fig 11: Measuring And Adjust Clutch Air Gap
Courtesy of FORD MOTOR CO.
Install the A/C compressor. Refer to AIR CONDITIONING (A/C) COMPRESSOR - 5.4L, 6.0L Diesel and 6.8L or AIR CONDITIONING (A/C) COMPRESSOR - 7.3L Diesel Engine .
