Air Conditioning (A/C) Compressor Bracket - 7.3L Diesel: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt from the A/C clutch pulley. Refer to ACCESSORY DRIVE .
Remove the bolts and reposition the A/C compressor.

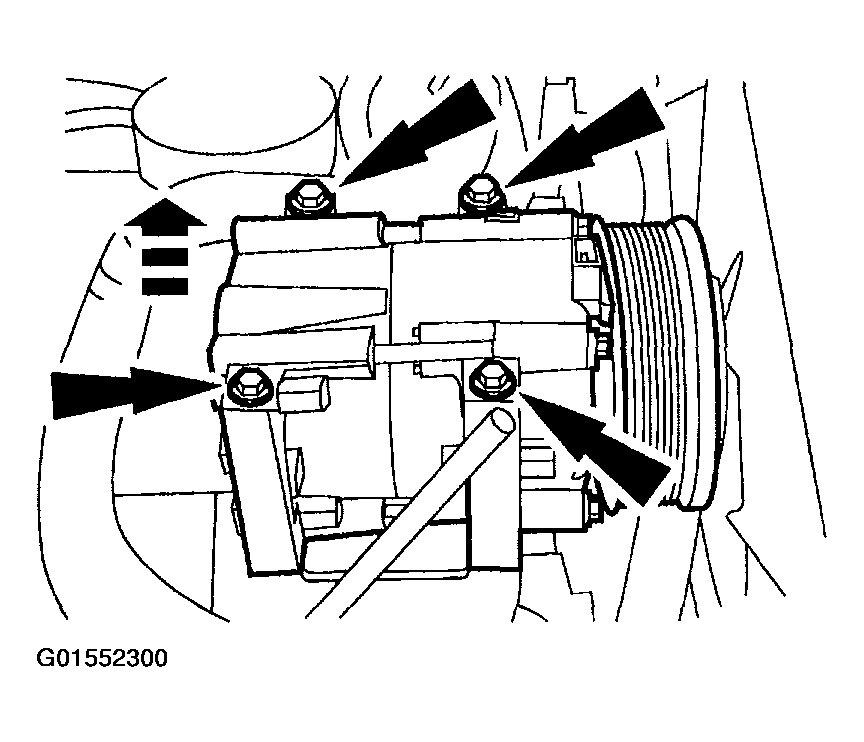

Fig 1: Locating Bolts A/C Compressor - 7.3L Diesel
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the A/C compressor bracket.

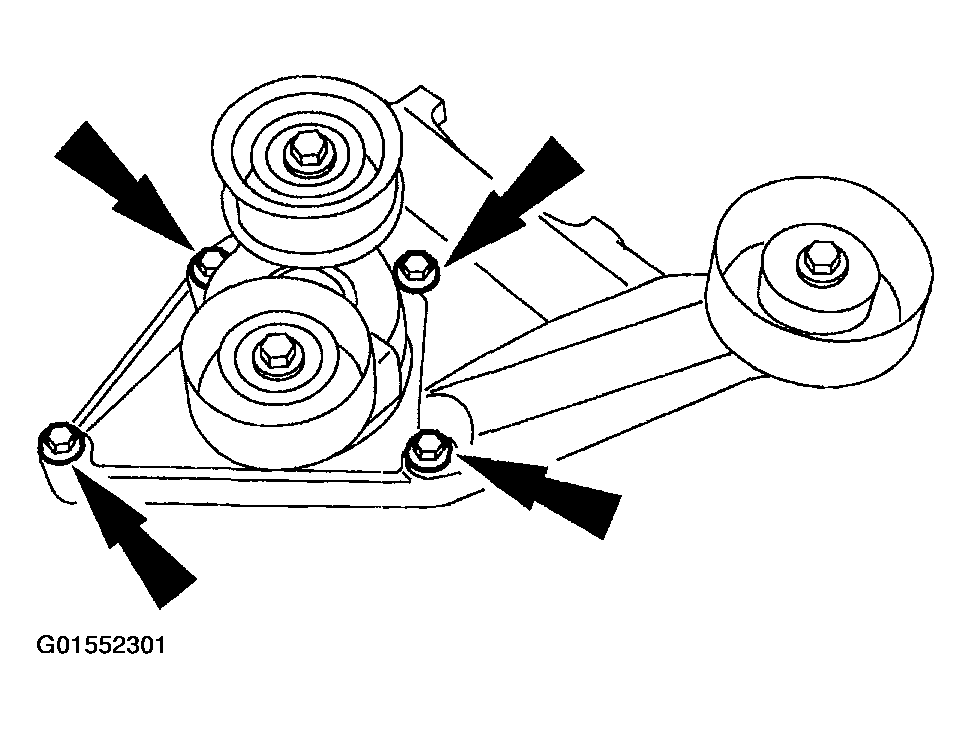

Fig 2: Locating Bolts A/C Compressor Bracket
Courtesy of FORD MOTOR CO.
Remove the bolt and remove the drive belt tensioner.

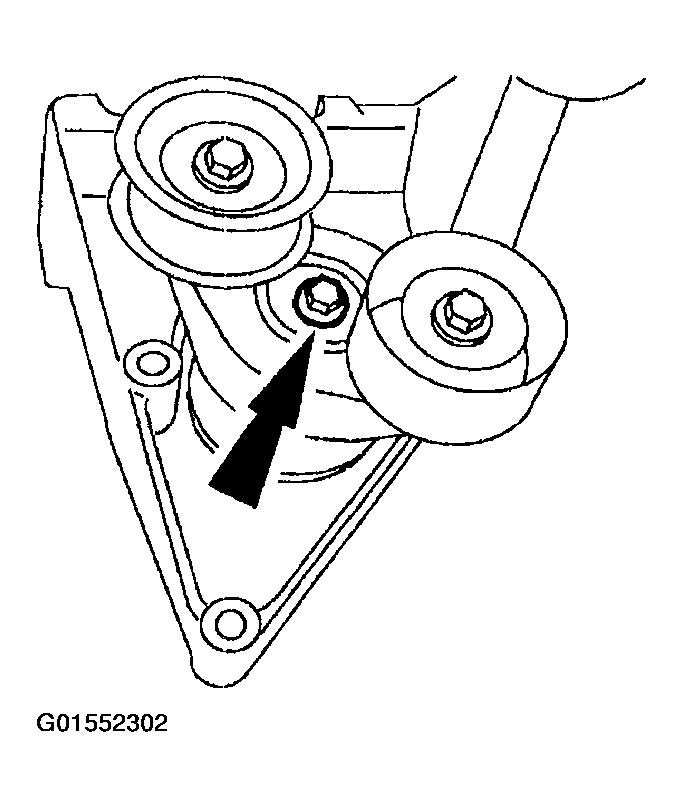

Fig 3: Locating Bolt Drive Belt Tensioner
Courtesy of FORD MOTOR CO.
Remove the bolt and remove the idler pulley.

Fig 4: Locating Bolt Idler Pulley
Courtesy of FORD MOTOR CO.
