Air Conditioning (A/C) Compressor - 7.3L Diesel Engine: Removal
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
- If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
- If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
- Install a new evaporator core orifice (19D990) as directed by the A/C flushing or filtering procedure.
- Install a new suction accumulator (19C836) as directed by the A/C flushing or filtering procedure.
NOTE:
If installing a new A/C compressor, the A/C clutch disc and hub (19D786), A/C compressor pulley (19D784) and A/C clutch field coil (19D798) must be inspected and transferred from the old unit to the new unit if suitable for reuse.
NOTE:
Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
- If flushing of the refrigerant system has not been carried out, recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
- Remove the drive belt from the A/C compressor pulley.

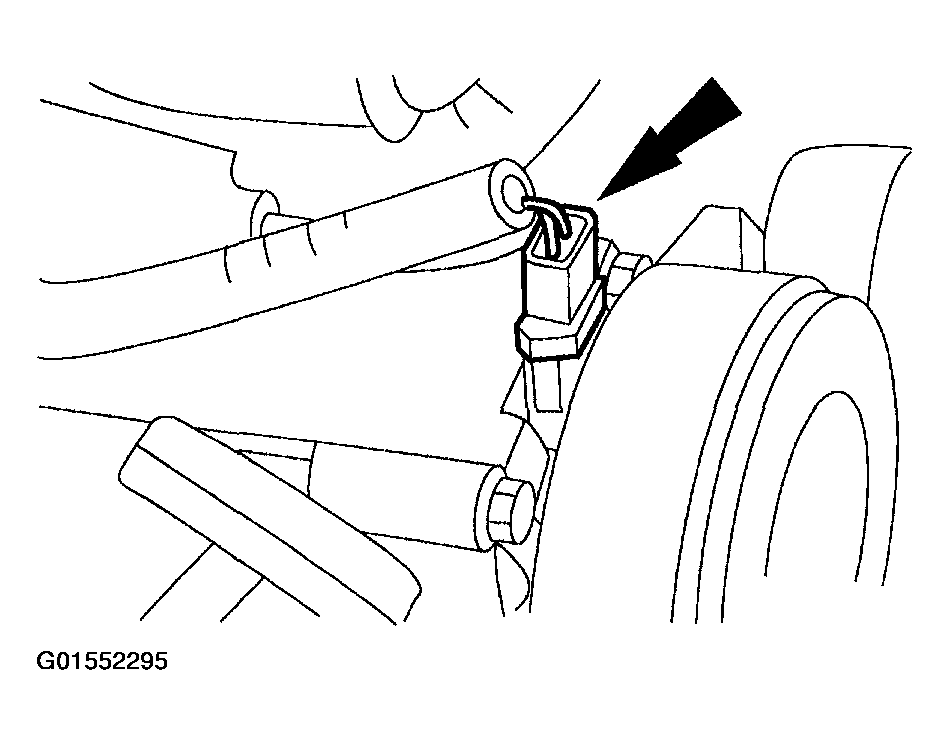

- Disconnect the wire harness connector from the A/C clutch field coil.
- Loosen the bolt and remove the A/C manifold and tube assembly from the A/C compressor.

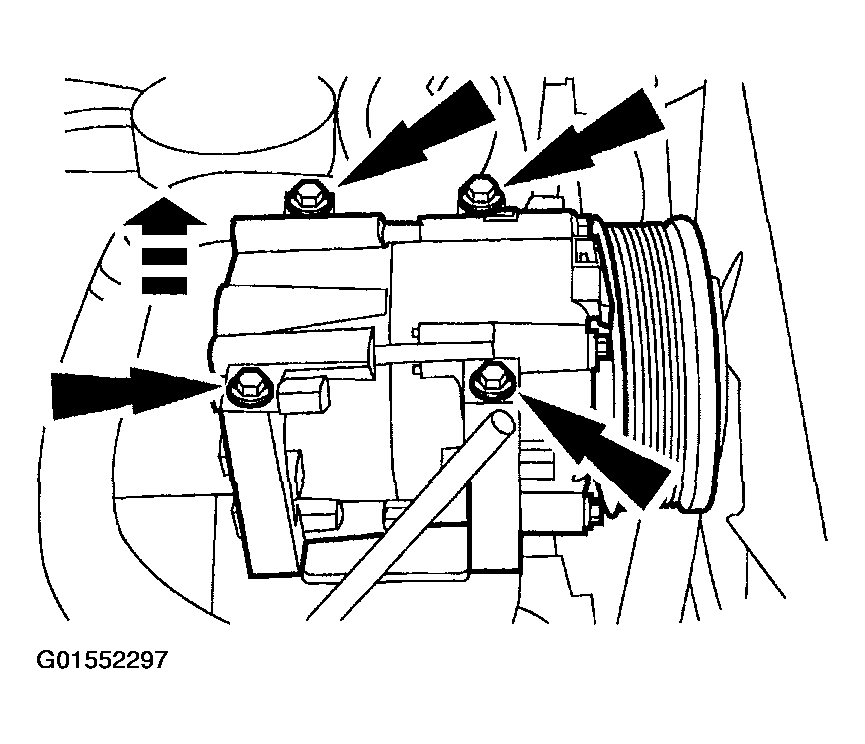

- Remove the bolts and remove the A/C compressor.
