Air Conditioning (A/C) Compressor - 7.3L Diesel Engine: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
- If a new A/C compressor is to be installed, the clutch assembly must be transferred from the old unit to the new unit. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL - 7.3L Diesel
- If filtering of the refrigerant system is not to be carried out, service the replacement A/C compressor with the correct amount of PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.

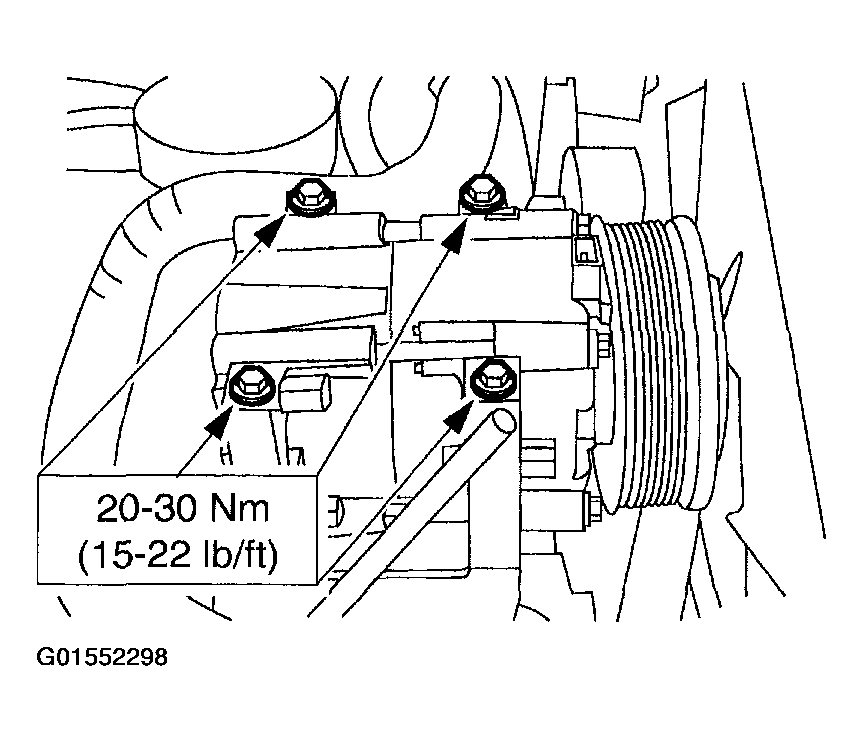

  Fig 1: A\C Compressor With Torque Specifications
  Courtesy of FORD MOTOR CO.
If filtering of the refrigerant system is not to be carried out, evacuate, charge and leak test the refrigerant system. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .

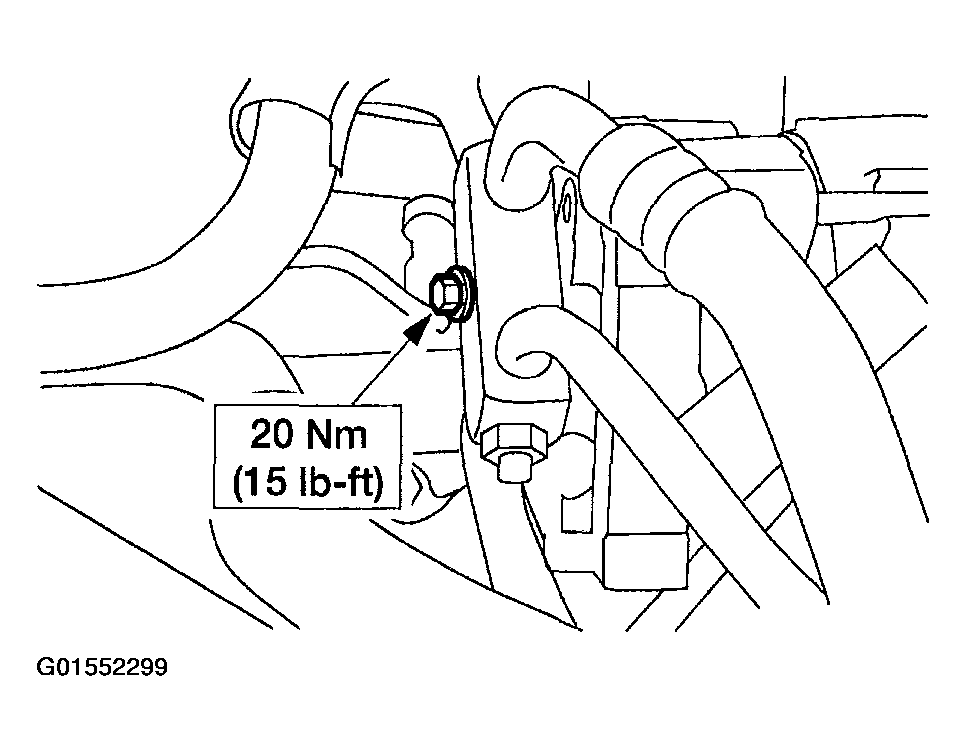

Fig 2: A\C Manifold With Torque Specifications
Courtesy of FORD MOTOR CO.
