Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.

If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
Install a new evaporator core orifice (19D990) as directed by the A/C flushing or filtering procedure.
Install a new suction accumulator (19C836) as directed by the A/C flushing or filtering procedure.
NOTICE: Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) should be used to lubricate R-134a refrigerant system O-ring seals only and should not be added to R-134a refrigerant systems as an A/C compressor lubricant. PAG Refrigerant Compressor Oil F7AZ-19D589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C compressor lubricant.

NOTE: If installing a new A/C compressor, the A/C clutch disc and hub (19D786), A/C compressor pulley (19D784) and A/C clutch field coil (19D798) must be inspected and transferred from the old unit to the new unit if suitable for reuse.

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

All vehicles

Position the vehicle on a hoist with the gear selector in NEUTRAL. For additional information, refer to JACKING & LIFTING -- EXCURSION & F250-F550 SUPER DUTY
If flushing of the refrigerant system has not been carried out, recover the refrigerant. For additional information, refer to HVAC SYSTEM - GENERAL INFORMATION -- EXCURSION & F250-F550 SUPER DUTY
4x2 vehicles
Remove the RH fender splash shield. Refer to FRONT END BODY PANELS .

4x4 vehicles

Remove the RH front wheel and tire.

All vehicles

Loosen The Bolt And Detach The Compressor Manifold And Tube From The A/C Compressor.
- Discard The O-Ring Seals.
Fig 1: Compressor Manifold Bolt With Torque Specifications
Courtesy of FORD MOTOR CO.

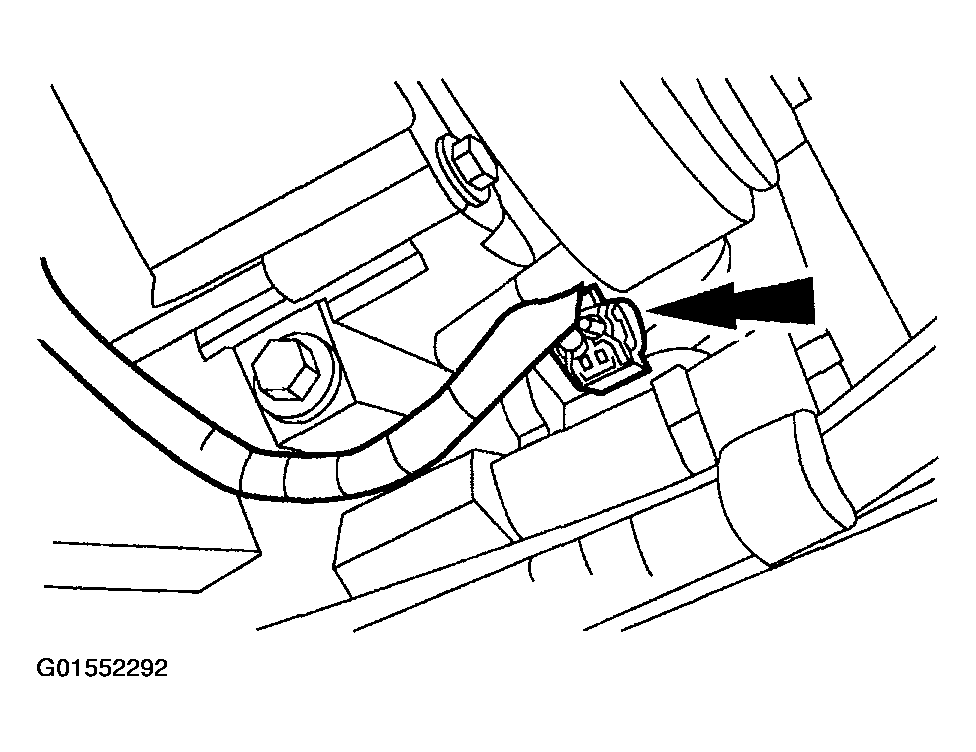

Disconnect the crankshaft position sensor electrical connector

Fig 2: Locating Wire Harness Connector Crankshaft Position Sensor
Courtesy of FORD MOTOR CO.
Disconnect the field coil electrical connector

Fig 3: Locating Wire Harness Connector A/C Clutch Field Coil
Courtesy of FORD MOTOR CO.

NOTE: The lower rear bolt must be removed with the A/C compressor.
Remove the bolts and the A/C compressor.

Fig 4: A/C Compressor Bolts With Torque Specifications
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If a new A/C compressor is to be installed, the clutch assembly must be transferred from the old unit to the new unit. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL - 5.4L, 6.0L Diesel and 6.8L
- Install a new O-ring seals lubricated in clean PAG oil.
- If filtering of the refrigerant system is not to be carried out, lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
If filtering of the refrigerant system is not to be carried out, evacuate, leak-test, and charge the refrigerant system. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
