A/C Cycling Switch: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the A/C cycling switch electrical connector.

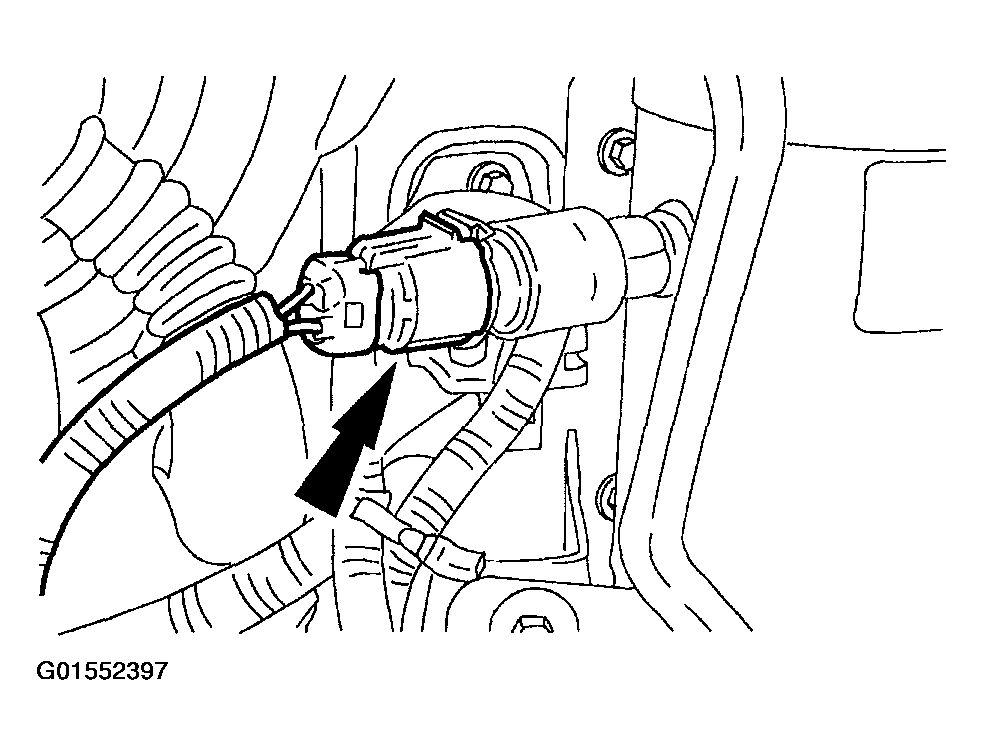

Fig 1: Locating A/C Cycling Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the A/C cycling switch from the suction accumulator/drier.

Fig 2: Locating A/C Cycling Switch Accumulator/Drier
Courtesy of FORD MOTOR CO.
