A/C Cycling Switch: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the removal procedure in reverse order.
    • Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.

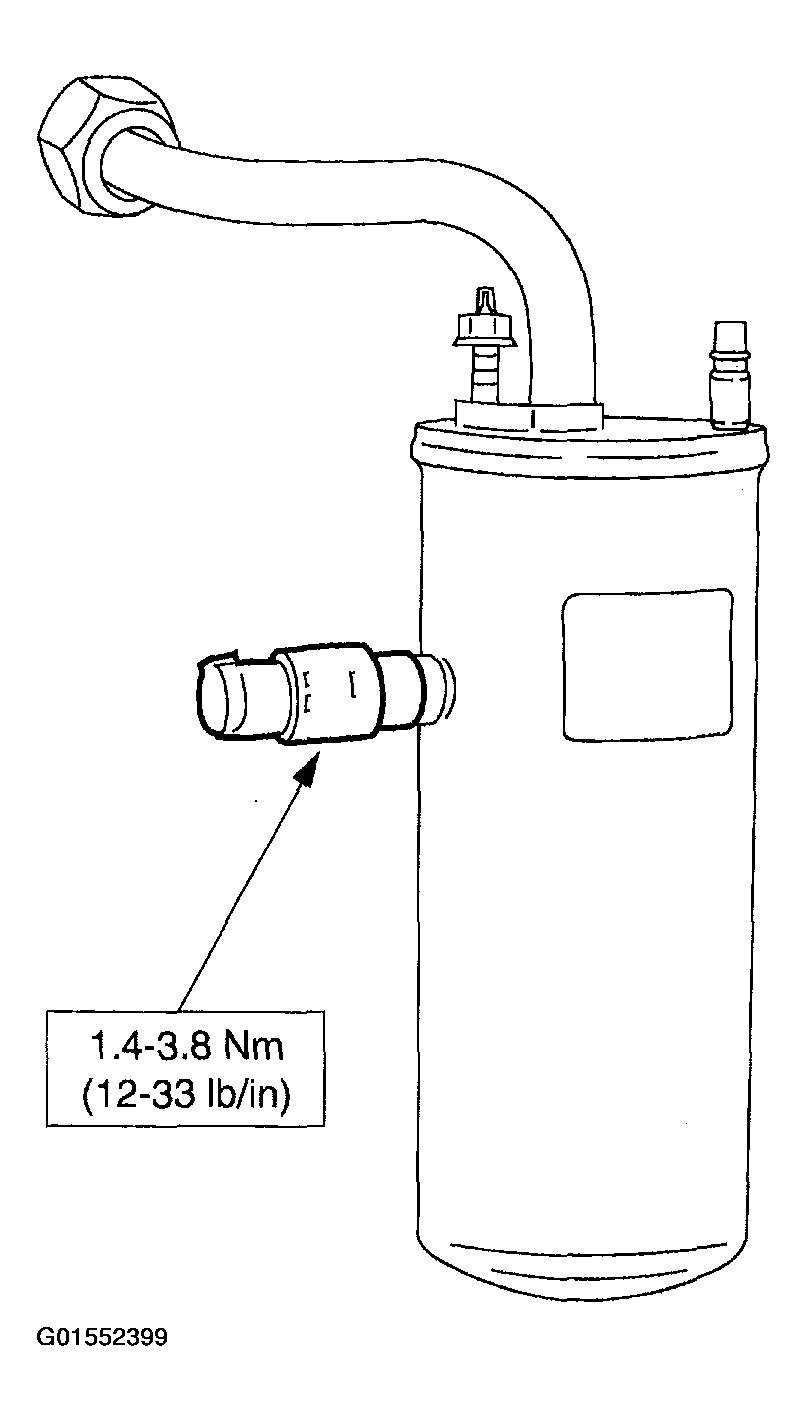

      Fig 1: Installing A/C Cycling Switch Accumulator/Drier With Torque Specifications
      G01552399Courtesy of FORD MOTOR CO.
