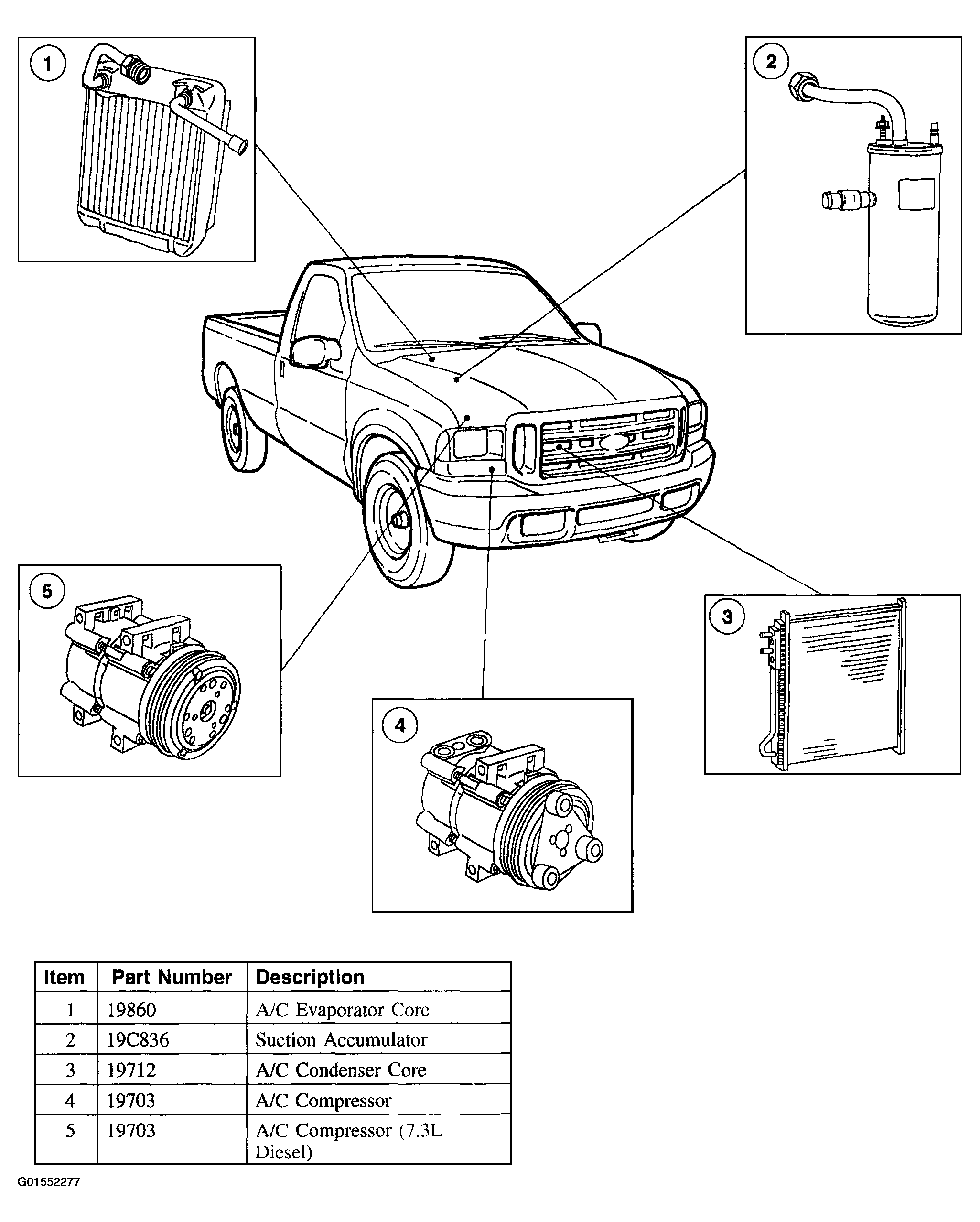

Component Locations
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
The A/C refrigerant system is a clutch cycling orifice tube type. The system components are:
- A/C compressor
- A/C clutch
- A/C condenser core
- A/C evaporator core
- Suction accumulator
- Connecting refrigerant lines
The refrigeration system operation is controlled by the following:
- A/C evaporator core orifice
- A/C cycling switch
- A/C pressure cutoff switch
The refrigerant system incorporates an A/C compressor controlled by an A/C cycling switch. The A/C cycling switch senses pressure in the suction accumulator to control operation of the A/C compressor.
An A/C compressor pressure relief valve is installed in the A/C manifold and tube to protect the compressor against excessively high refrigerant pressures. An A/C evaporator core orifice is installed in the evaporator inlet tube to meter the liquid refrigerant into the A/C evaporator core.
