Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Drain the radiator. Refer to ENGINE COOLING .
Disconnect the heater outlet hose (18472) at the engine.

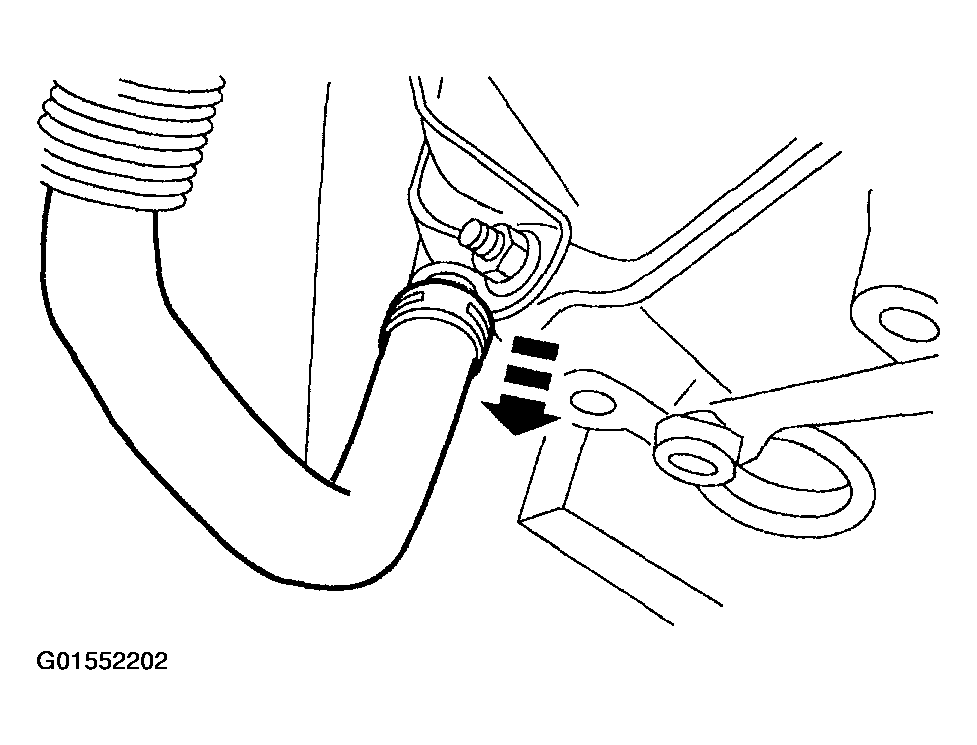

Fig 1: Disconnecting Heater Outlet Hose
Courtesy of FORD MOTOR CO.
Disconnect the heater inlet hose at the engine.

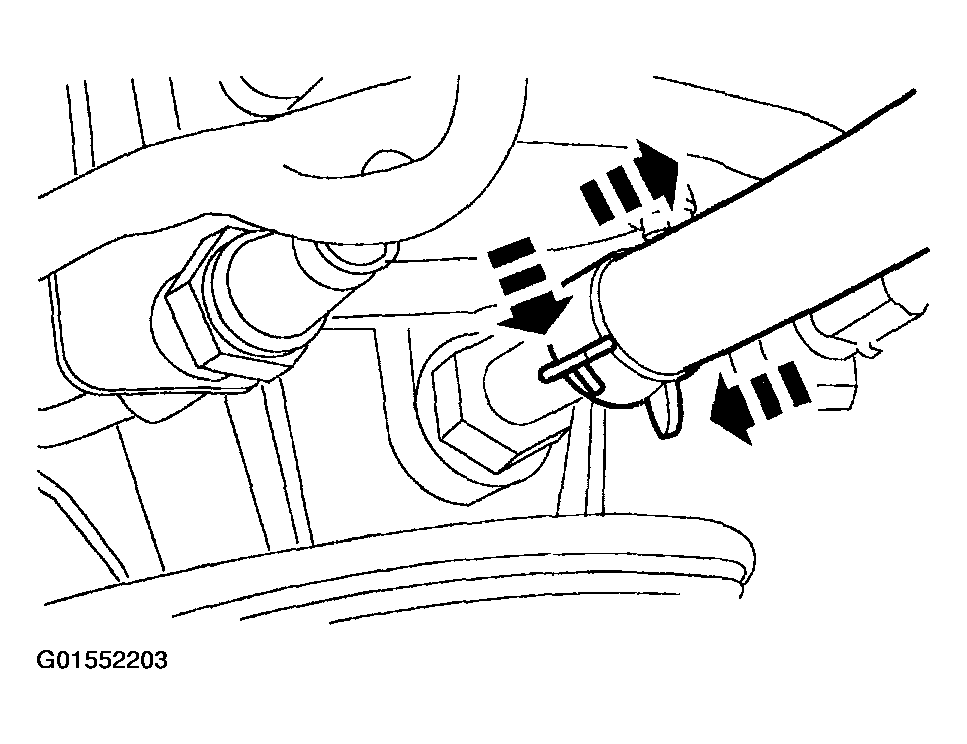

Fig 2: Disconnecting Heater Inlet Hose At Engine
Courtesy of FORD MOTOR CO.

Vehicles equipped with auxiliary climate control
Remove the charge air cooler pipe (6C646).

Fig 3: Locating Clamp Charge Air Cooler Pipe
Courtesy of FORD MOTOR CO.
Disconnect the quick disconnect heater hose couplings from the heater water hoses. For additional information on the heater hose coupling disconnect and connect procedure, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .

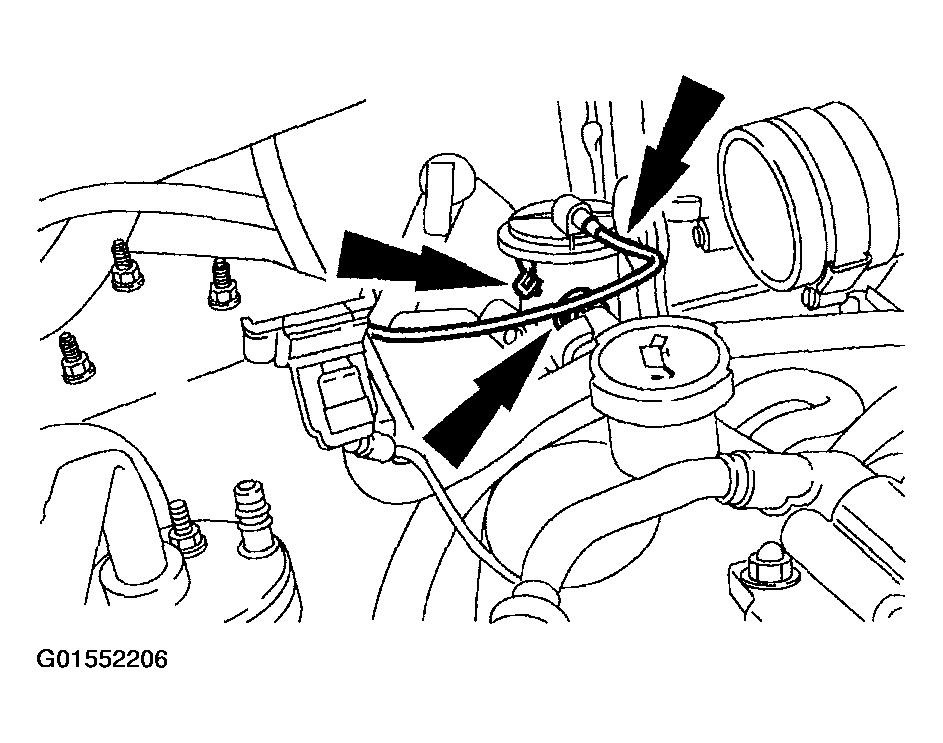

Fig 4: Locating Clamp Heater Hose Couplings
Courtesy of FORD MOTOR CO.
Remove the heater control valve vacuum line and clamps and remove the heater control valve.

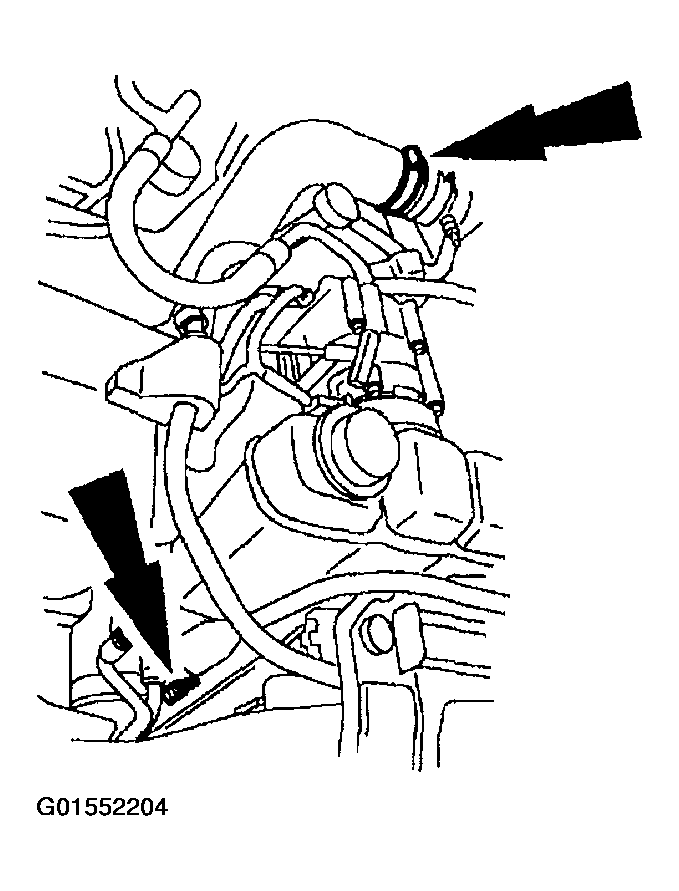

Fig 5: Locating Heater Control Valve Vacuum Line
Courtesy of FORD MOTOR CO.
Remove the heater return line.

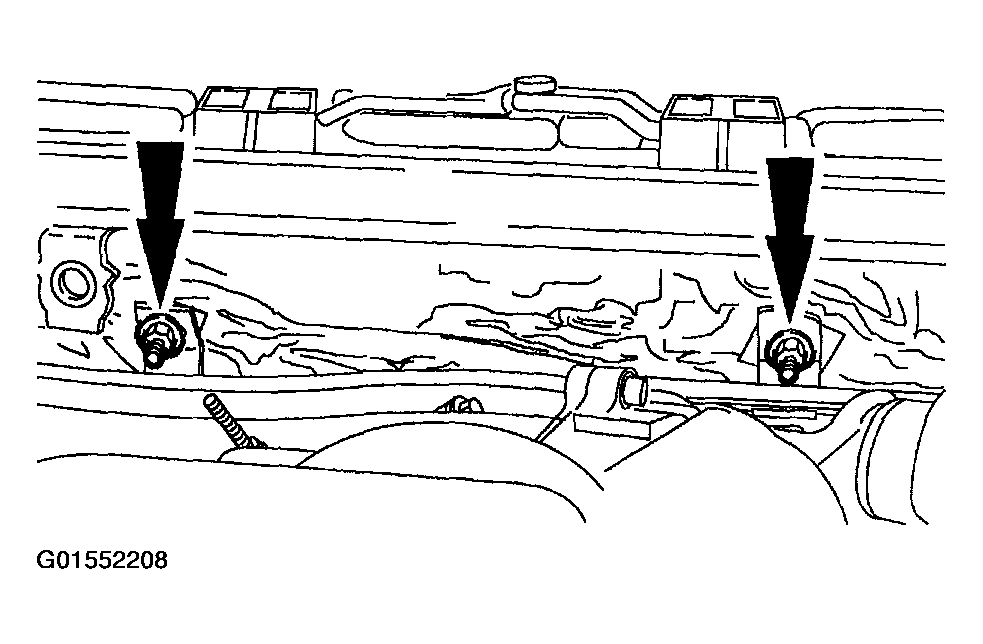

Fig 6: Locating Heater Return Line Clamp
Courtesy of FORD MOTOR CO.
Remove the nuts and the heater return line.

Fig 7: Locating Nuts Heater Return Line
Courtesy of FORD MOTOR CO.

All vehicles
Disconnect the heater water hoses from the heater core (18476). For additional information on the heater hose coupling disconnect and connect procedure, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .

Fig 8: Disconnecting Heater Water Hoses
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Lubricate the coolant hoses with MERPOL® meeting Ford specification ESE-M99B144-B or plain water only, if needed.
