Blower Motor: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electrical connector from the vacuum pump (7.3L diesel engine).

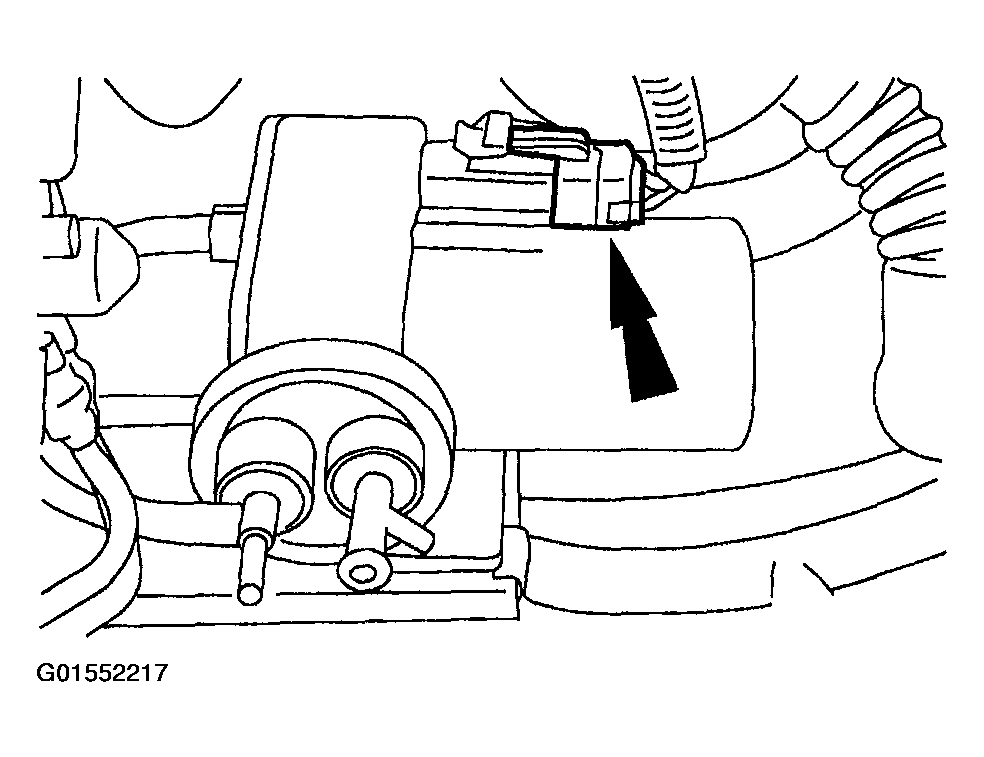

Fig 1: Locating Electrical Connector Vacuum Pump (7.3L Diesel Engine)
Courtesy of FORD MOTOR CO.
Remove the bolts (7.3L diesel engine).

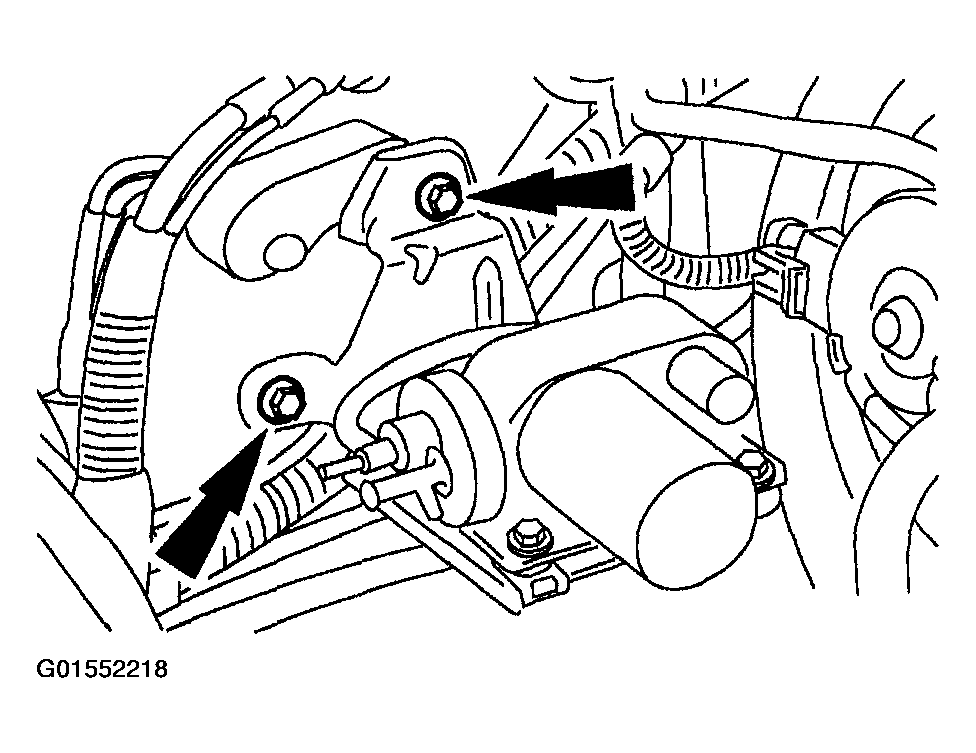

Fig 2: Locating Bolts (7.3L Diesel Engine)
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hose and remove the vacuum pump and mounting bracket(7.3L diesel engine).

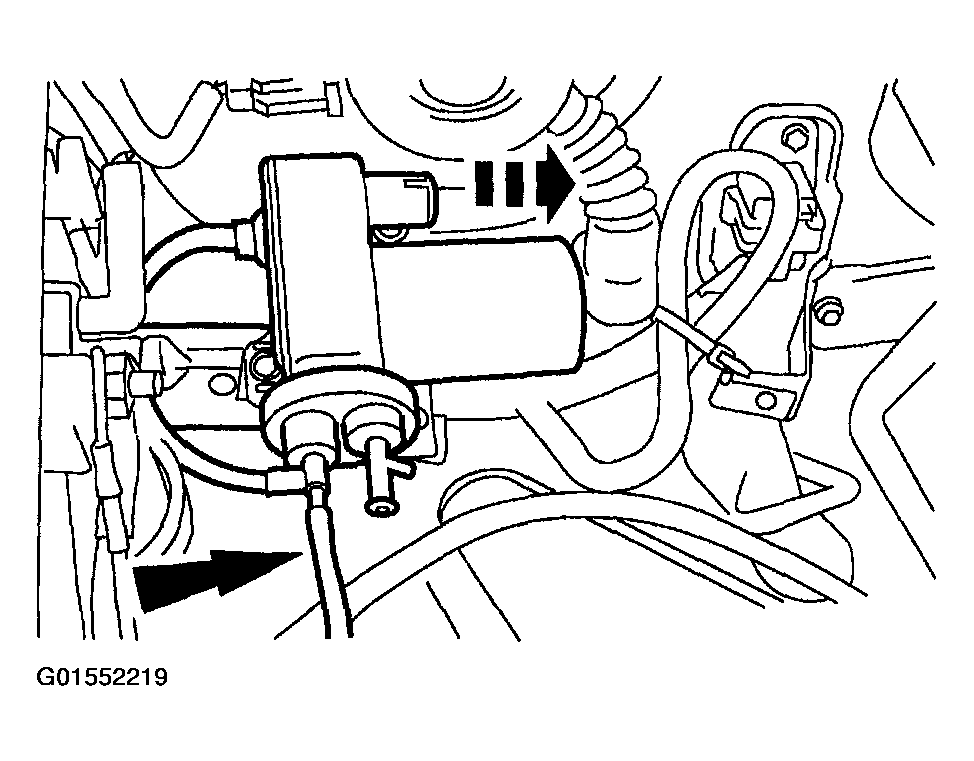

Fig 3: Disconnecting Vacuum Hose (7.3L Diesel Engine)
Courtesy of FORD MOTOR CO.
Disconnect the speed control servo connector (5.4L and 6.8L gasoline engines).

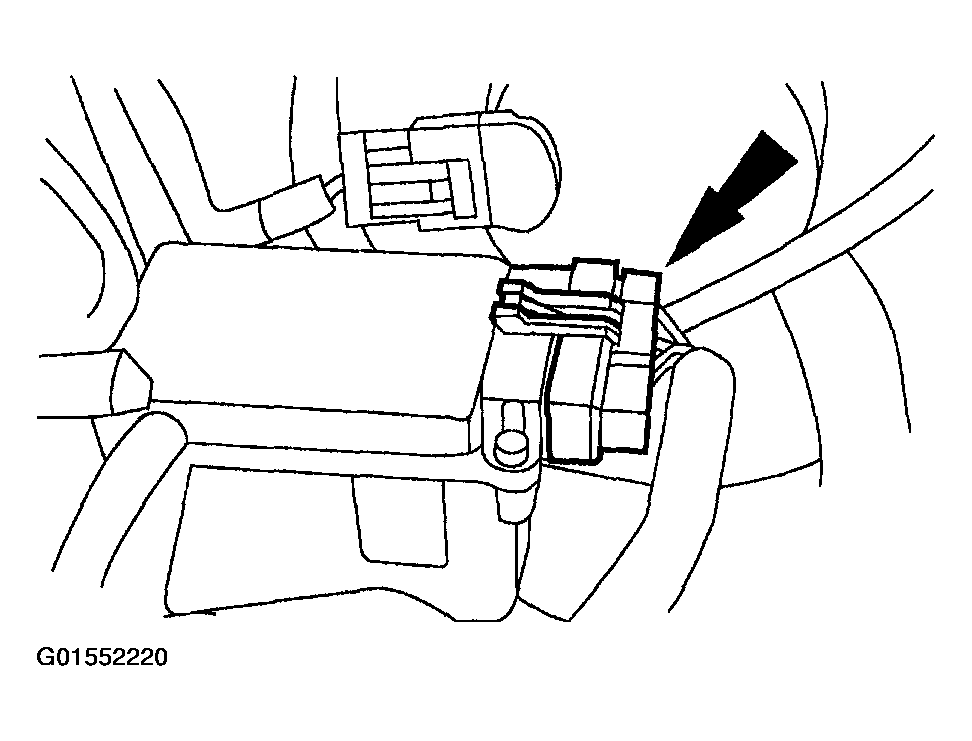

Fig 4: Disconnecting Speed Control Servo Connector (5.4L And 6.8L Gasoline Engines)
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the speed control servo (5.4L and 6.8L gasoline engines).

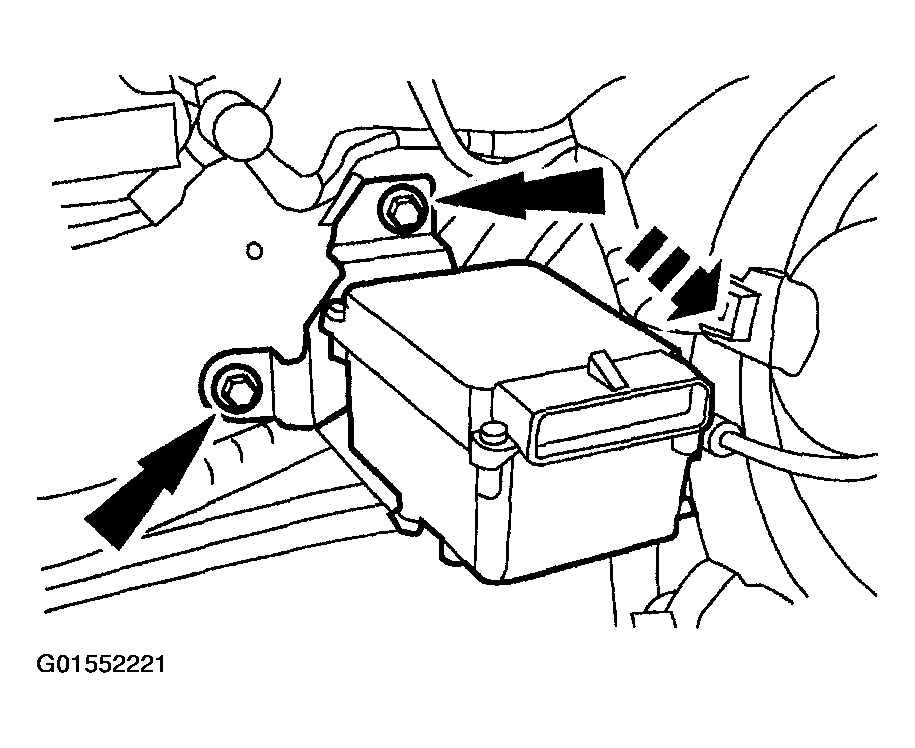

Fig 5: Removing Bolts Speed Control Servo (5.4L And 6.8L Gasoline Engines)
Courtesy of FORD MOTOR CO.
Disconnect the connector.

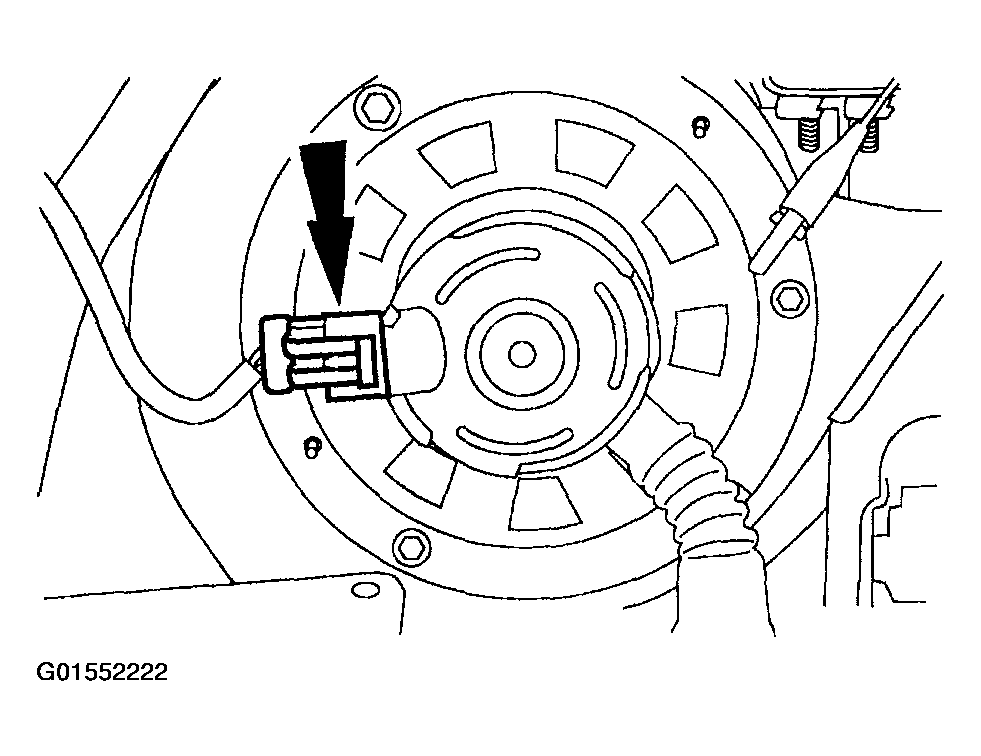

Fig 6: Locating Connector Blower Motor
Courtesy of FORD MOTOR CO.
Remove the blower motor ventilation tube.

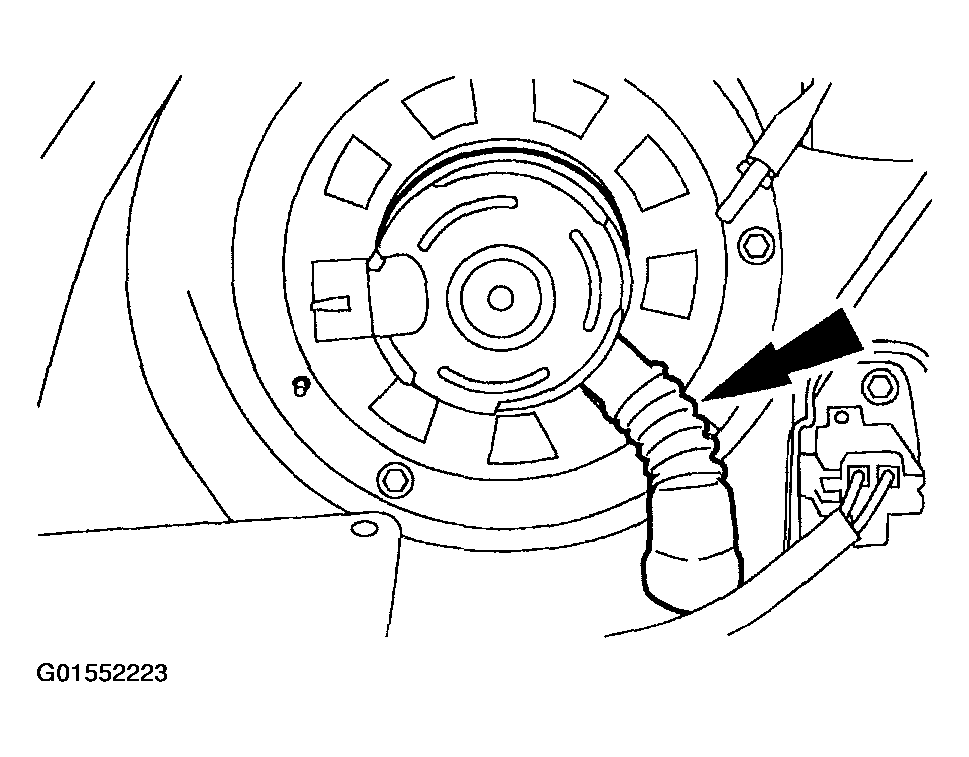

Fig 7: Locating Blower Motor Ventilation Tube
Courtesy of FORD MOTOR CO.
Remove the screws and remove the blower motor.
CAUTION: Carefully remove the blower motor so as not to damage the wheel.

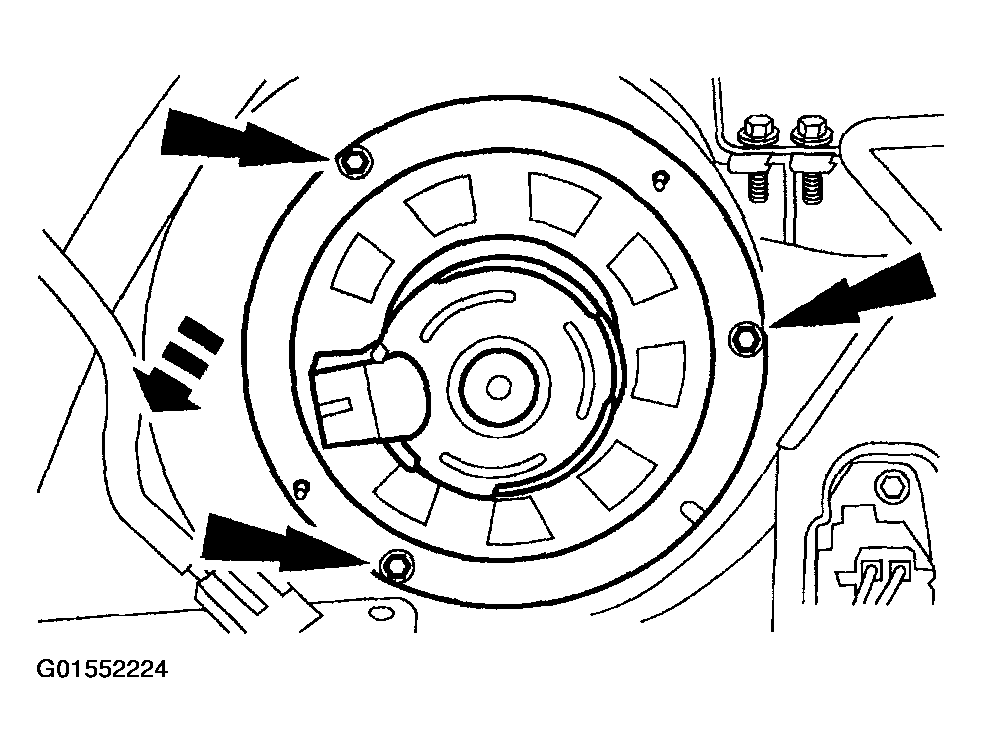

Fig 8: Locating Blower Motor Screws
Courtesy of FORD MOTOR CO.
Remove the wheel from the blower motor.
CAUTION: If the wheel is to be reused, clean the corrosion from the shaft end prior to removing the wheel.
1. Remove the push clip.
2. Remove the wheel from the blower motor.

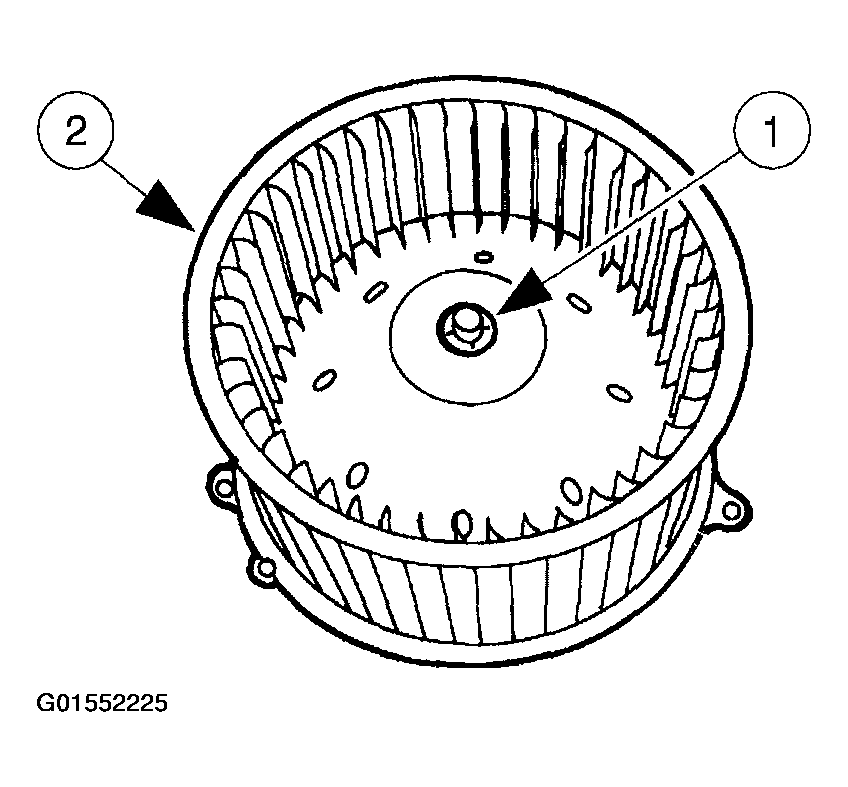

Fig 9: Locating Push Clip
Courtesy of FORD MOTOR CO.
