Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the pedal in place and disconnect the accelerator cable from the accelerator pedal and shaft.
    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
    G01554405Courtesy of FORD MOTOR CO.
  2. Remove the bolts.

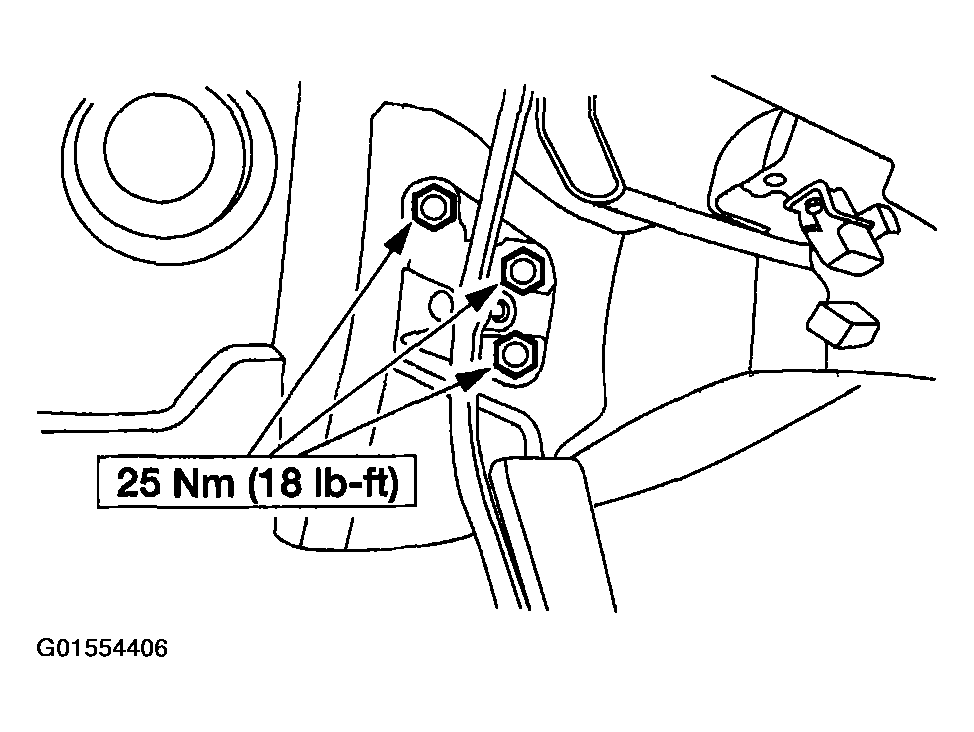

    Fig 2: Removing Bolts
    G01554406Courtesy of FORD MOTOR CO.
  3. Remove the accelerator pedal and shaft.
  4. To install, reverse the removal procedure.
