Removal and installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The accelerator pedal and sensor assembly is a non-adjustable, calibrated unit and must be handled with care.

Disconnect the electrical connector.

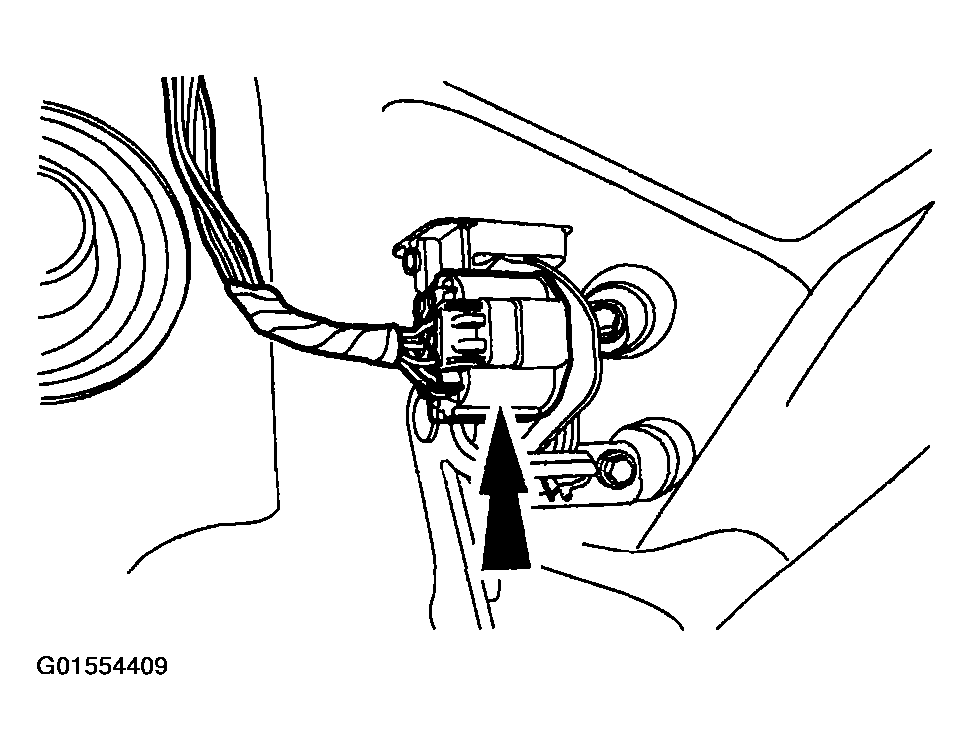

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the accelerator pedal and sensor assembly.

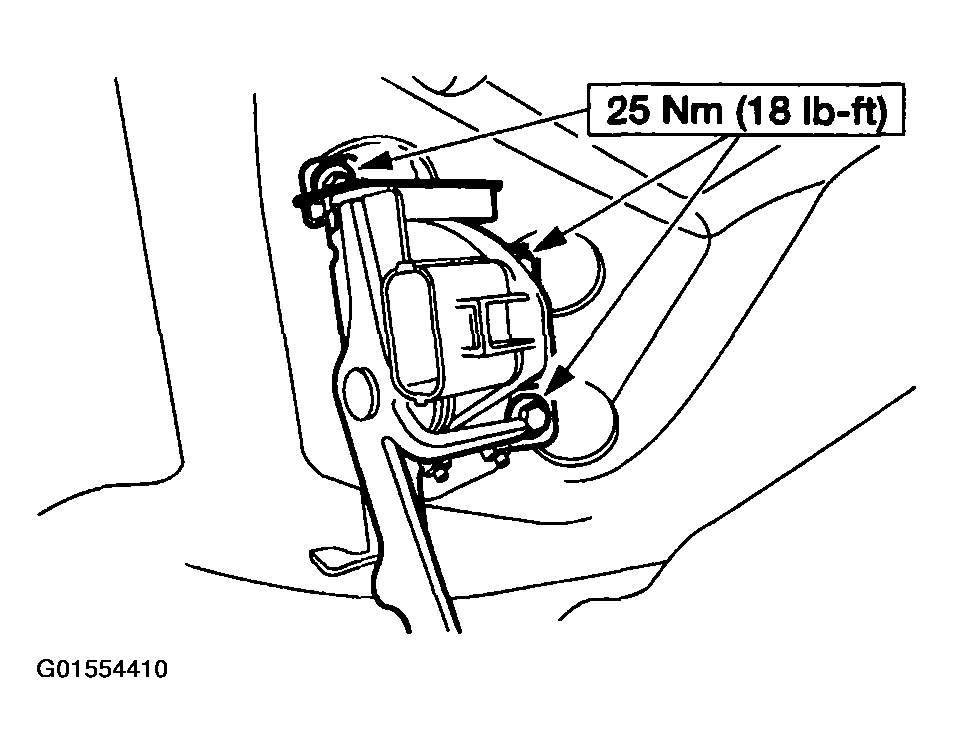

Fig 2: Removing Accelerator Pedal And Sensor Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
