Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Position the accelerator pedal in the most rearward (toward the driver) position.
Disconnect the accelerator cable and the accelerator pedal adjuster cable from the accelerator pedal.

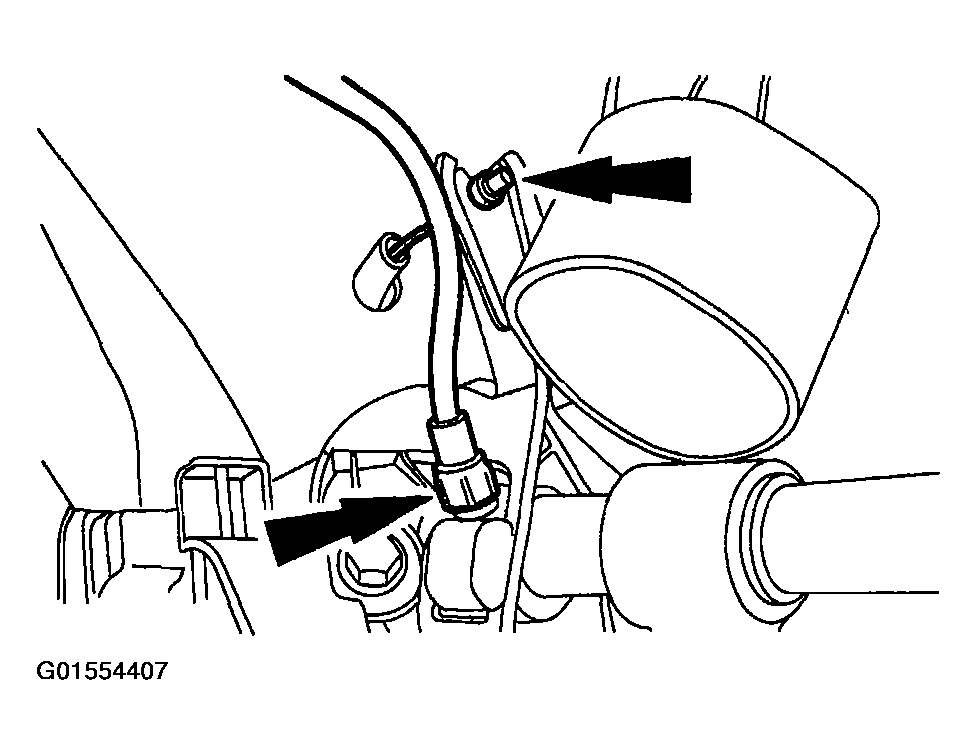

Fig 1: Disconnecting Accelerator Cable And Accelerator Pedal Adjuster Cable From Accelerator Pedal
Courtesy of FORD MOTOR CO.
Remove the bolts and the accelerator pedal.

Fig 2: Removing Bolts And Accelerator Pedal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If a new accelerator pedal is being installed, make sure the brake pedal is in the most rearward (toward the driver) position before connecting the accelerator pedal adjuster cable.
