Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Position the accelerator pedal in the most rearward (toward the driver) position.

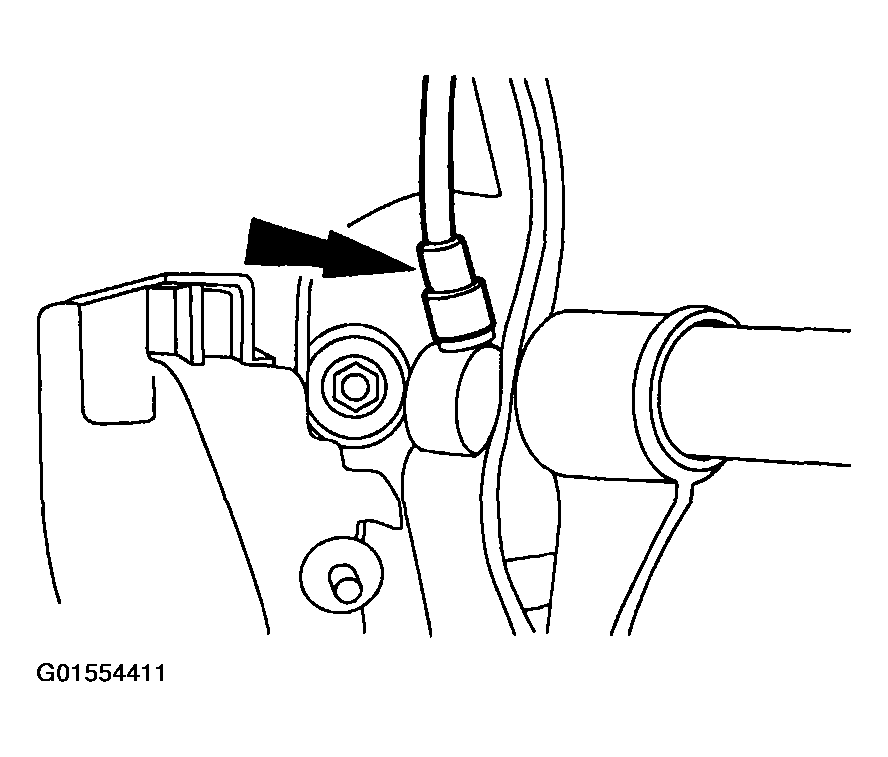

Disconnect the accelerator pedal adjuster cable.

Fig 1: Disconnecting Accelerator Pedal Adjuster Cable
Courtesy of FORD MOTOR CO.

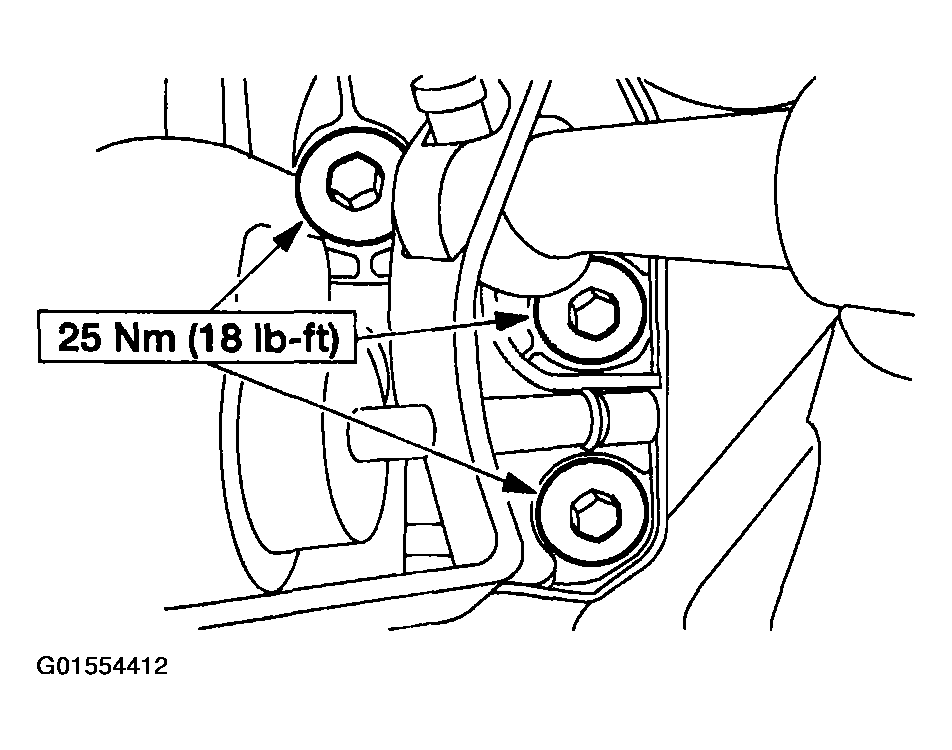

Remove the bolts and position the accelerator pedal aside.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.

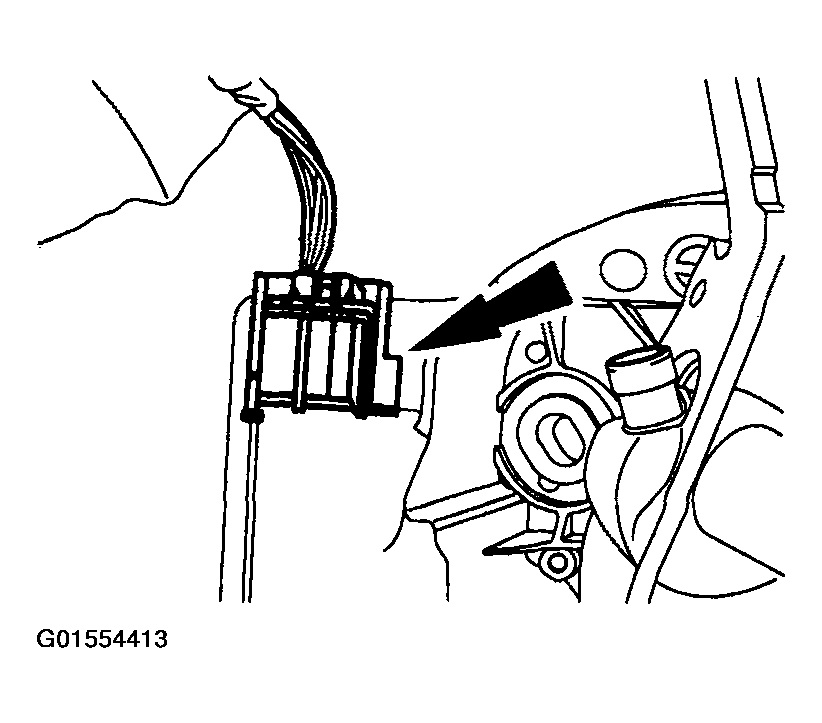

Disconnect the electrical connector, and remove the accelerator pedal.

Fig 3: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If a new accelerator pedal is being installed, make sure the brake pedal is in the most rearward (toward the driver) position before connecting the accelerator pedal adjuster cable.
