Exhaust System

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

The exhaust system consists of the components shown in the following illustrations.

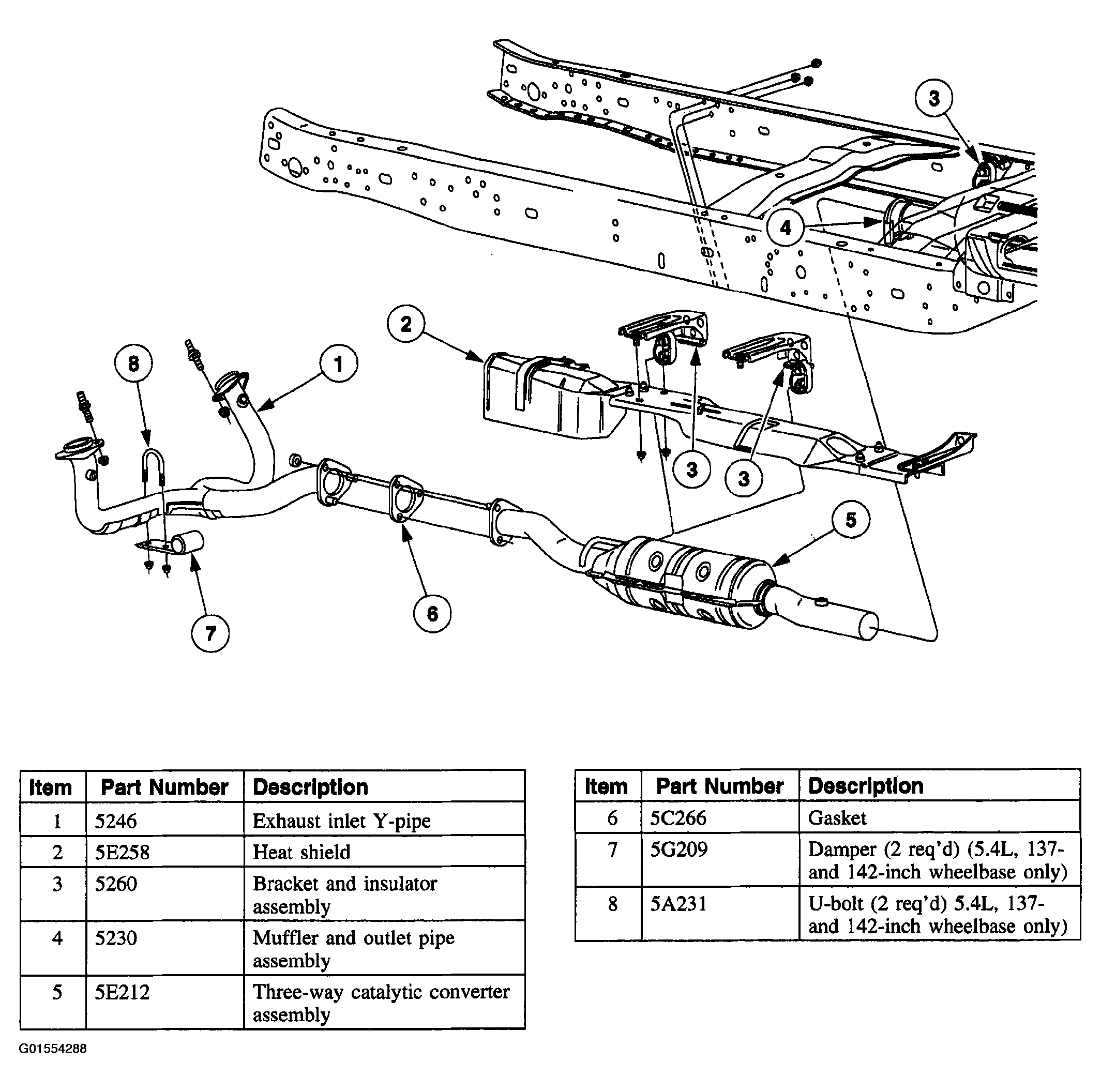

Fig 1: Identifying Inlet Pipes And Catalytic Converter-F-Super Duty, 5.4L And 6.8L Engines Components

Courtesy of FORD MOTOR CO.

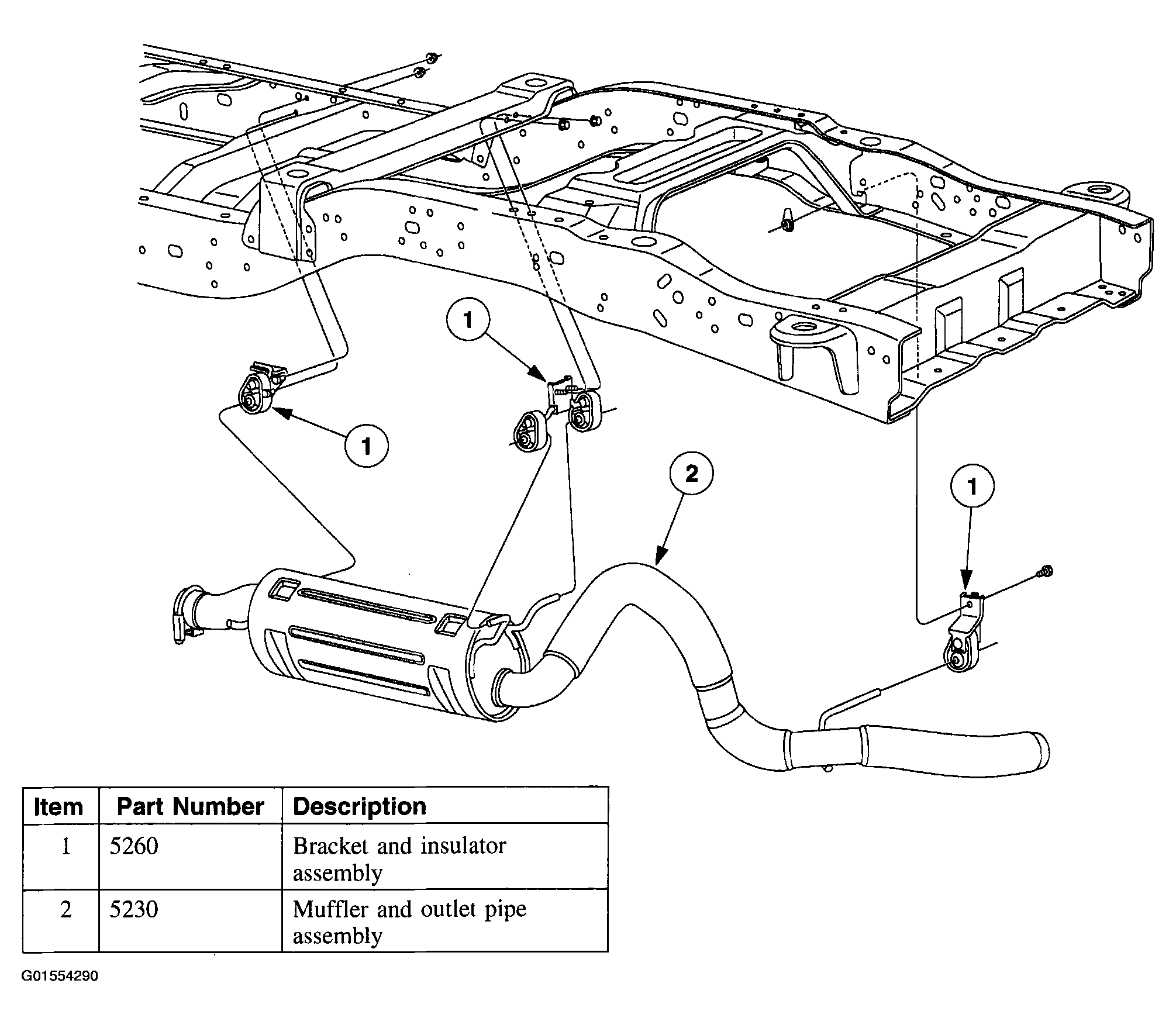

Fig 2: Identifying Muffler Assembly-F-Super Duty 5.4L And 6.8L Engines Components

Courtesy of FORD MOTOR CO.

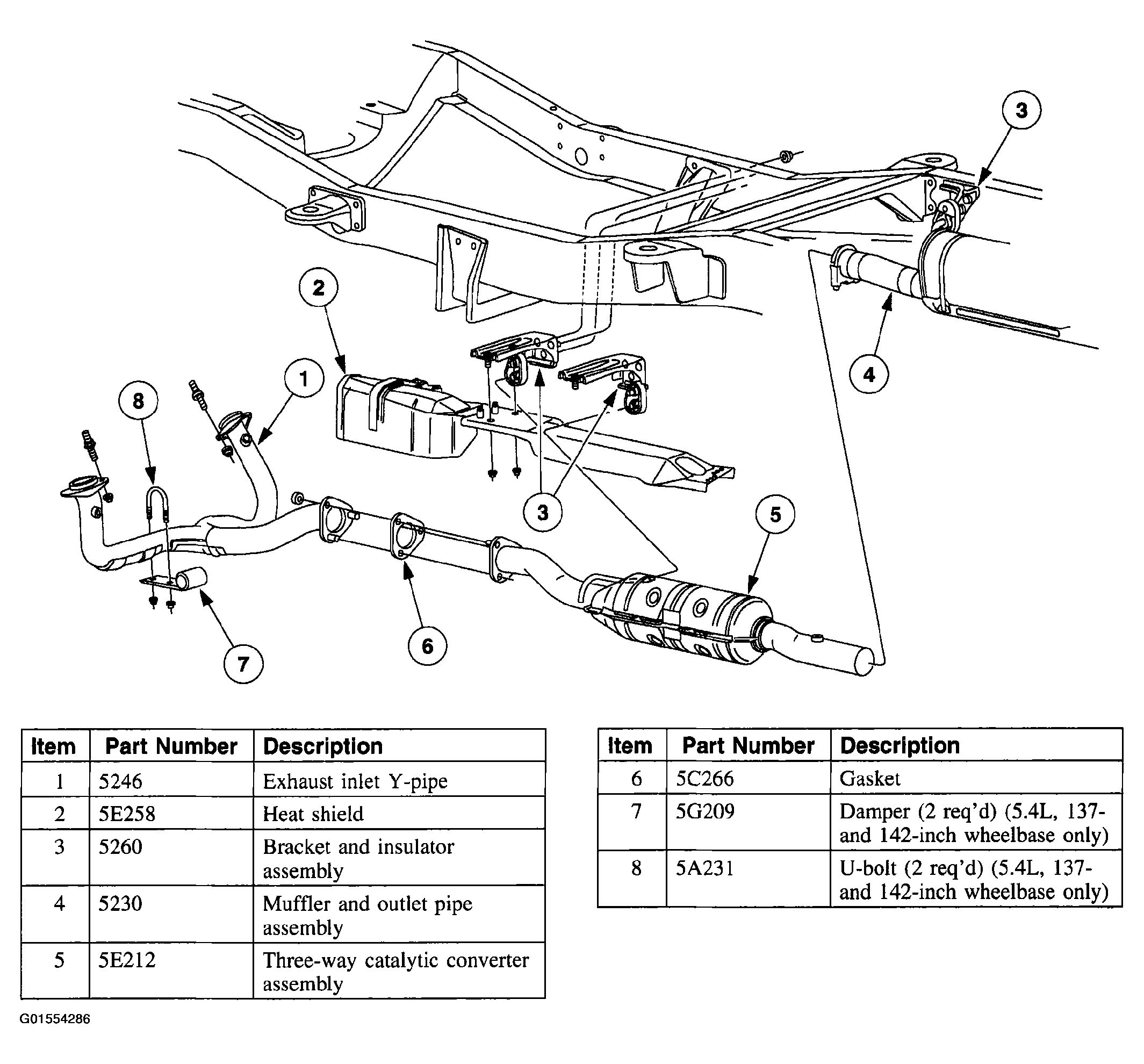

Fig 3: Identifying Inlet Pipe and Catalytic Converter-Excursion, 5.4L and 6.8L Engines Components

Courtesy of FORD MOTOR CO.

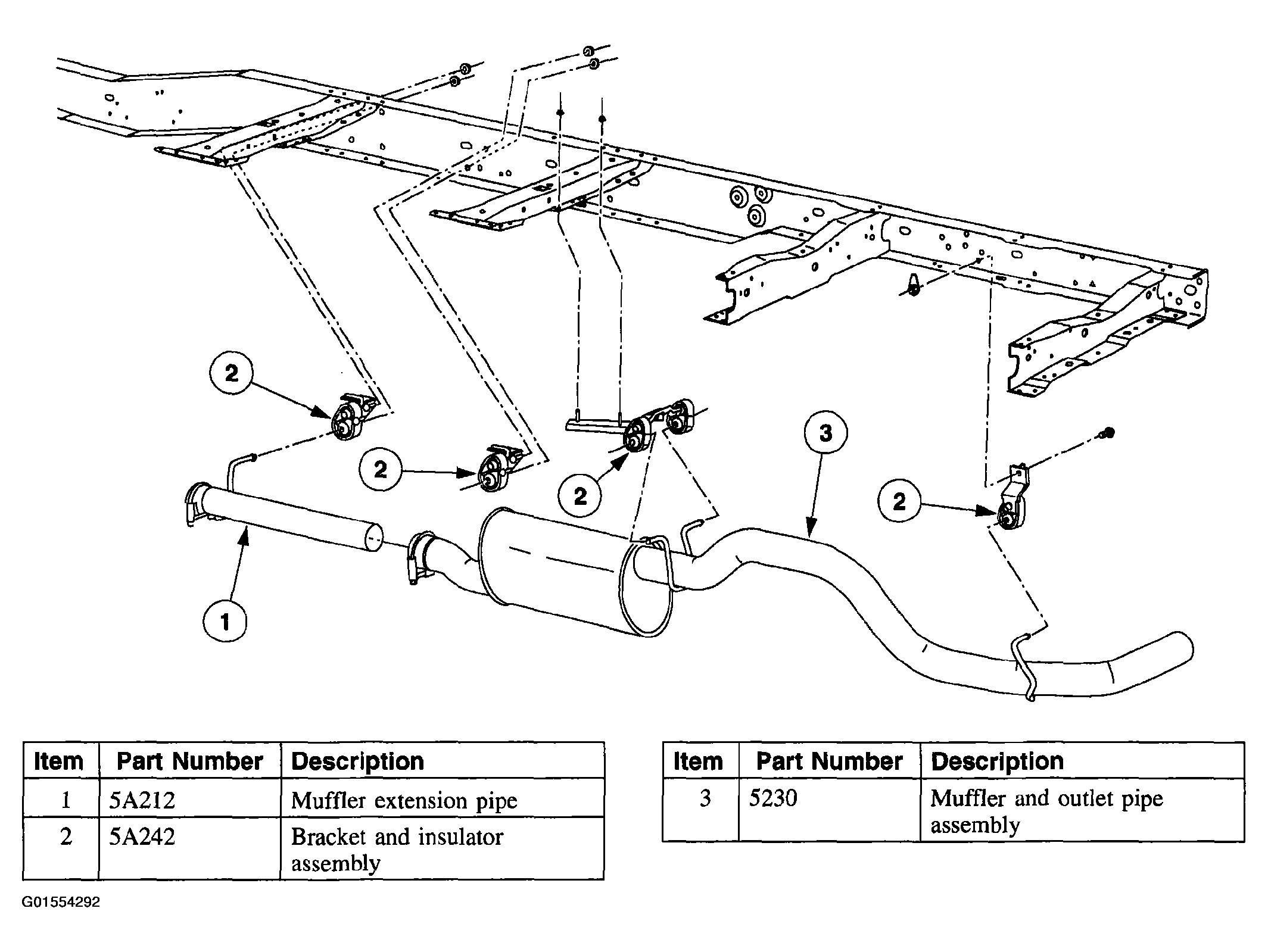

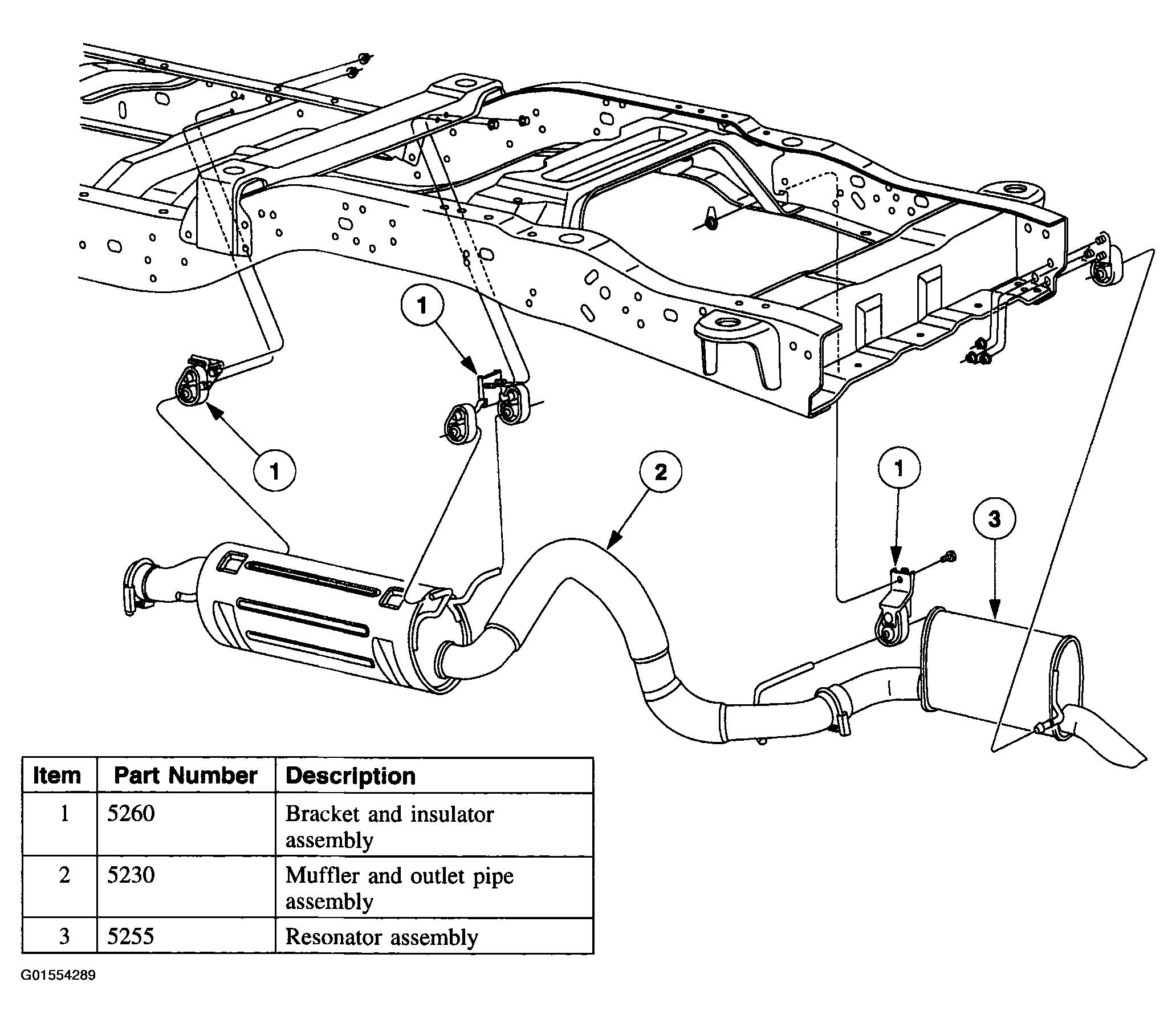

Fig 4: Identifying Muffler-Excursion, 5.4L Engine Components

Courtesy of FORD MOTOR CO.

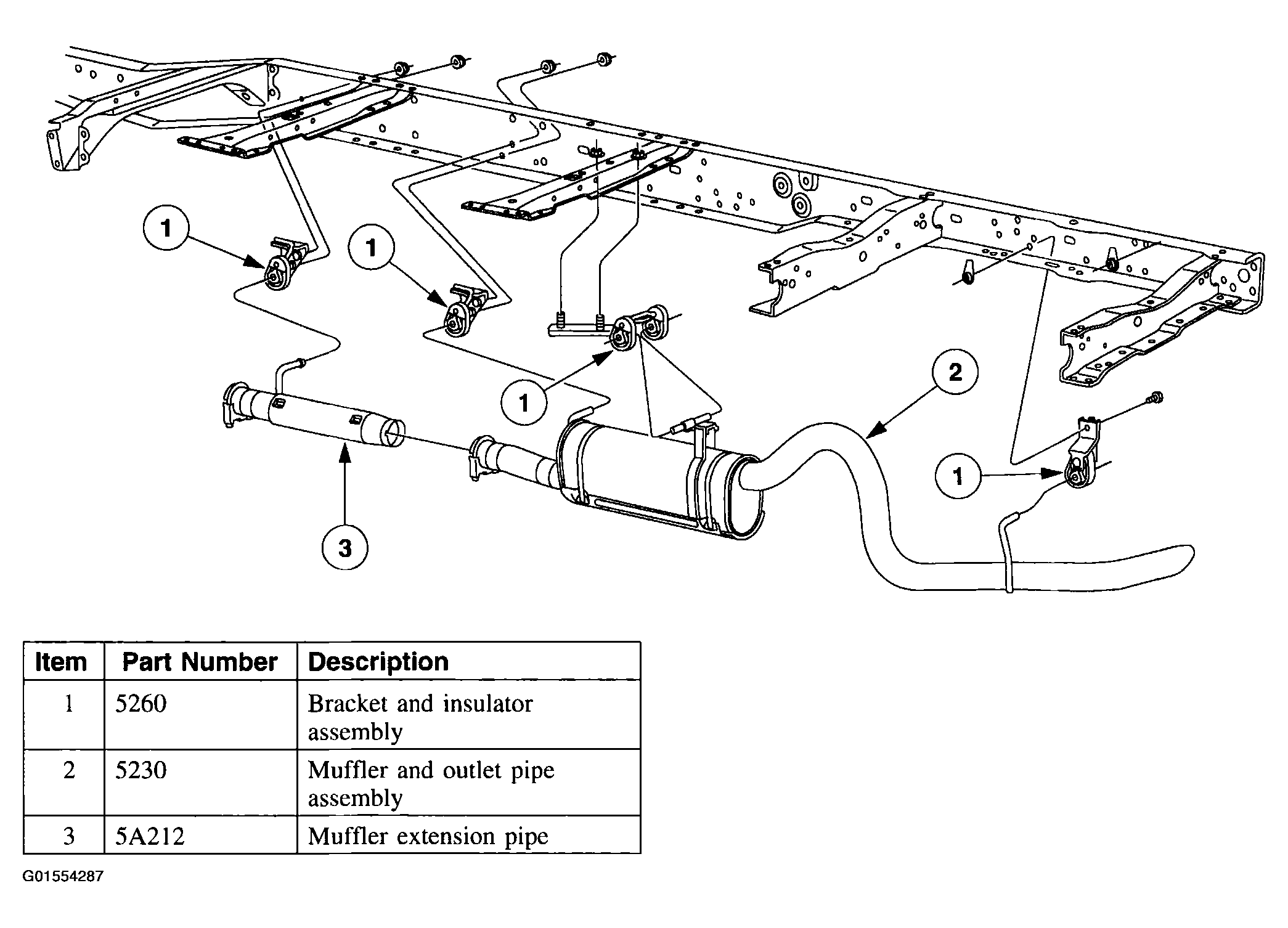

Fig 5: Identifying Muffler-Excursion. 6.8L Engine Components

Courtesy of FORD MOTOR CO.

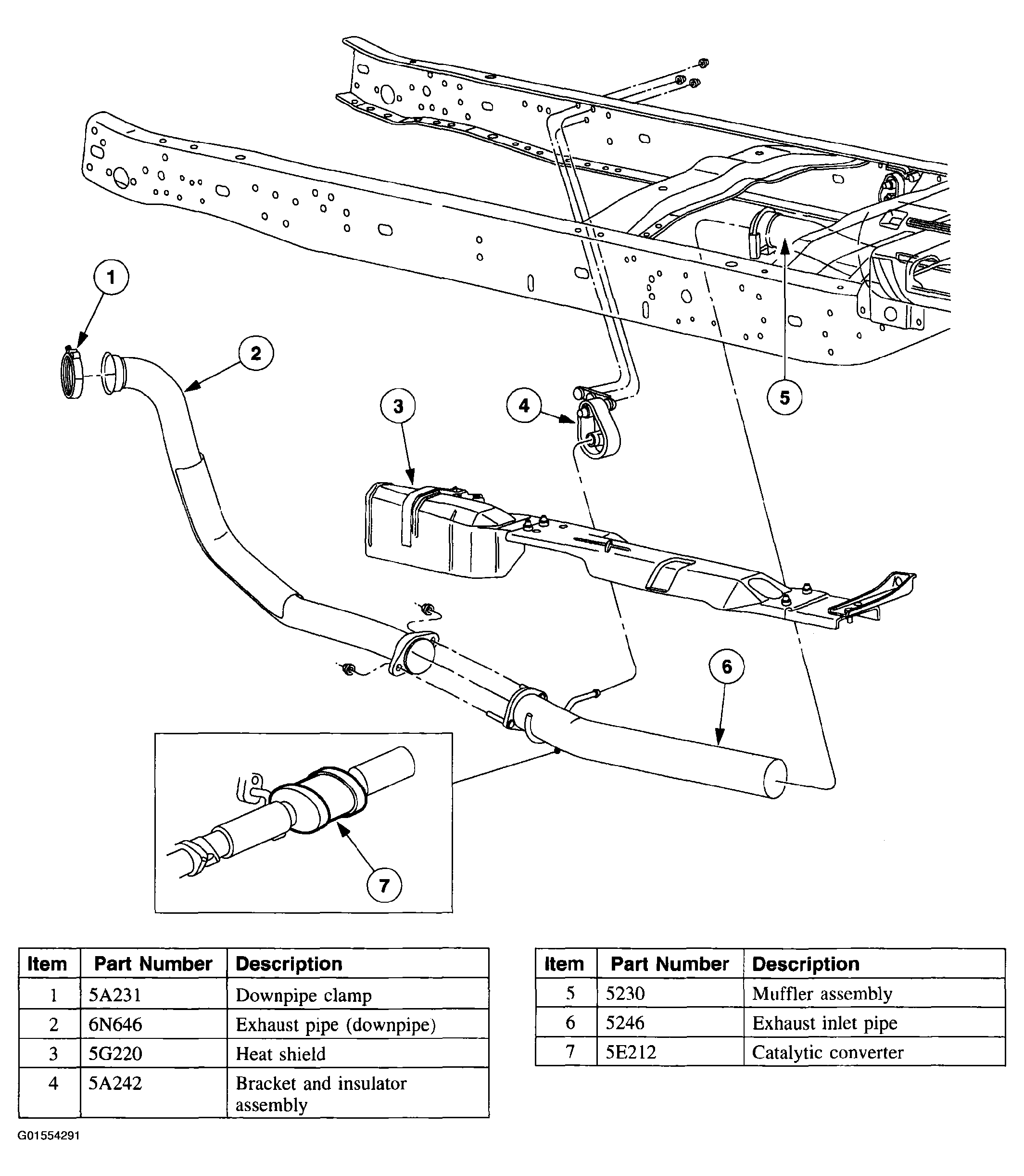

Fig 6: Identifying Exhaust Pipes And Heat Shield-7.3L Engine Components

Courtesy of FORD MOTOR CO.

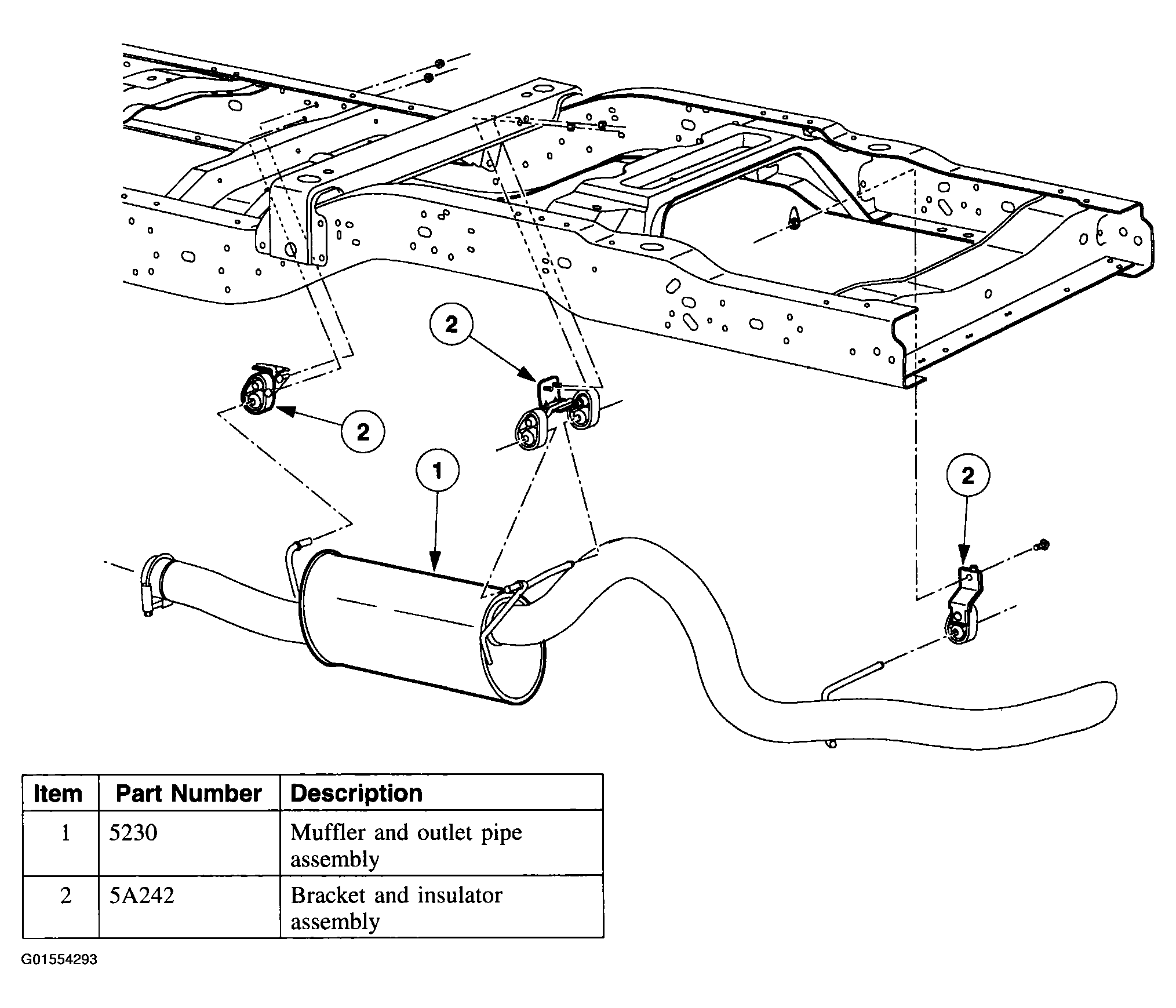

Fig 7: Identifying Muffler-F-Super Duty, 7.3L Engine Components

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Muffler-Excursion, 7.3L Engine Components

Courtesy of FORD MOTOR CO.

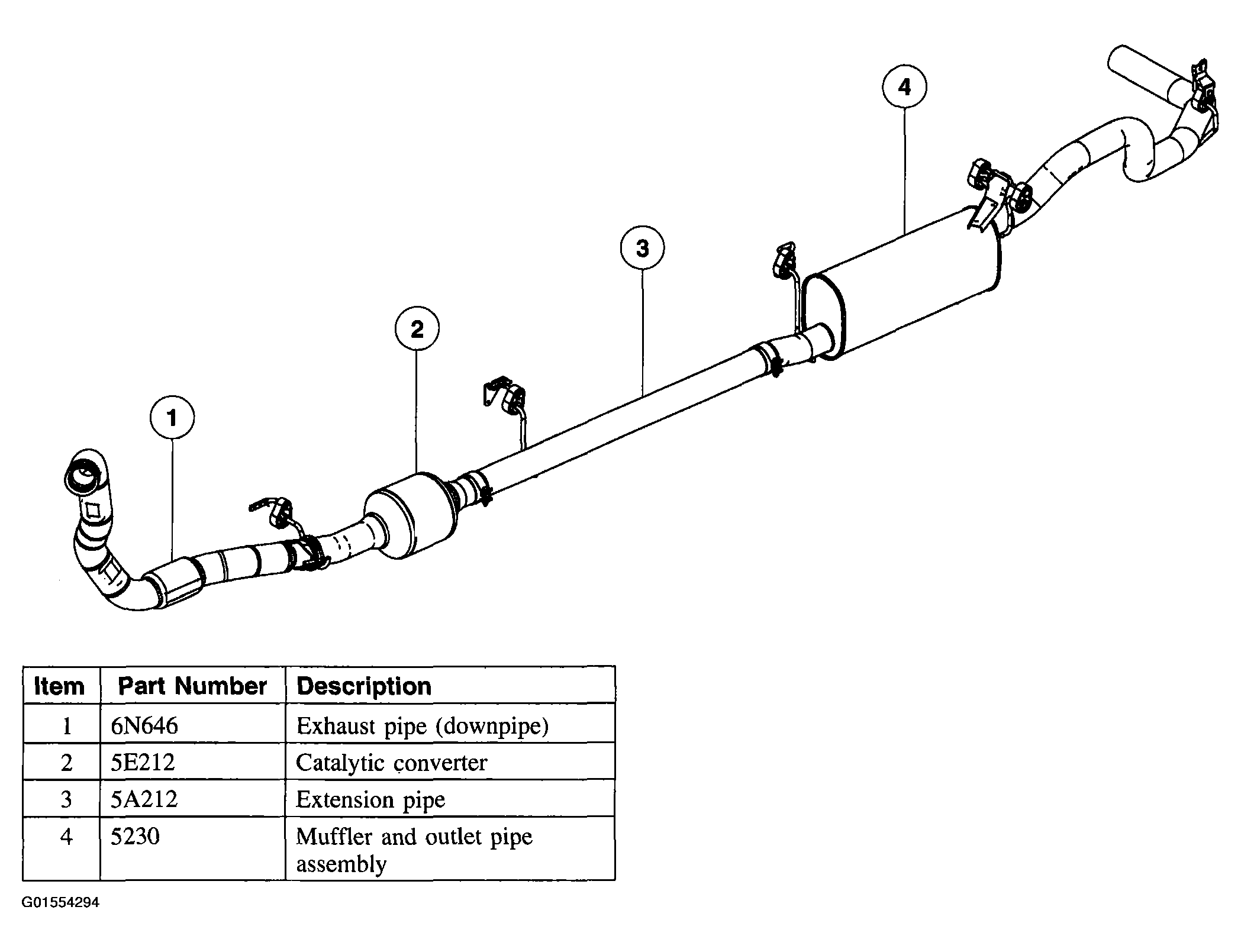

Fig 9: Identifying Exhaust System-6.0L Engine Components

Courtesy of FORD MOTOR CO.

To ease removal and installation of the exhaust components, lubricate the insulators using Silicone Lubricant F5AZ-19553-AA (Aerosol) or equivalent meeting Ford specification ESR-M13P4-A.
