Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drive belt. Refer to ACCESSORY DRIVE BELT - (With A/C) or ACCESSORY DRIVE BELT - (Without A/C) .

NOTE: Belt tensioner with A/C is shown, belt tensioner without A/C is similar.

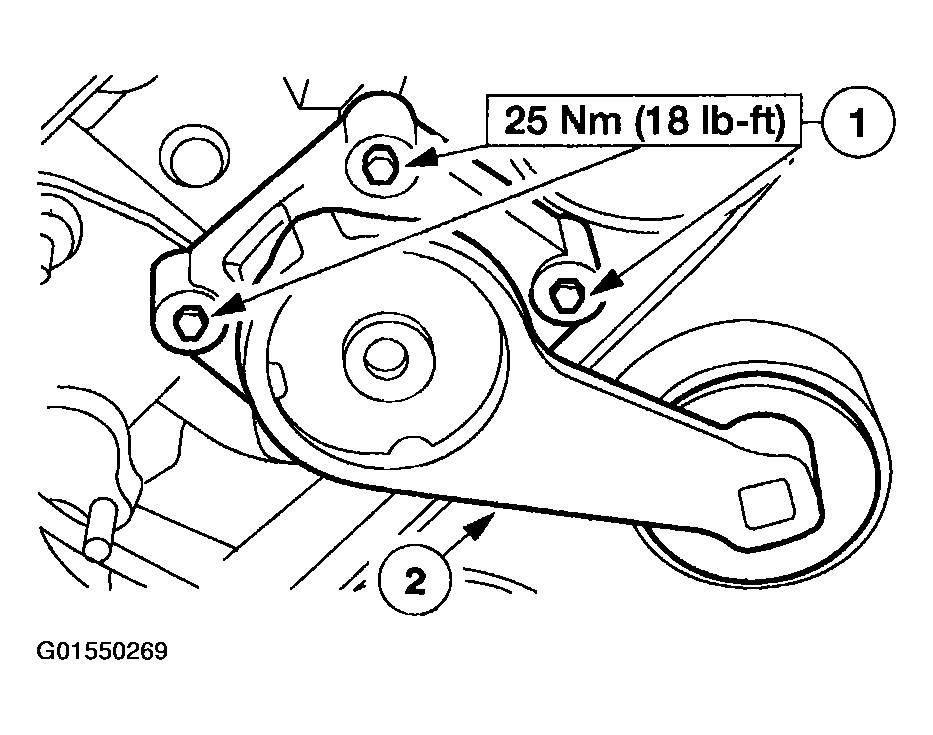

Fig 1: Removing Belt Tensioner

Courtesy of FORD MOTOR CO.

Remove the belt tensioner.
1. Remove the bolts.
2. Remove the belt tensioner.
To install, reverse the removal procedure.
