Belt Tensioner - 7.3L Diesel Engine: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT - (With A/C)  or ACCESSORY DRIVE BELT - (Without A/C) .

    Remove the accessory drive belt tensioner.

    1. Remove the bolt.
    2. Remove the accessory drive belt tensioner.

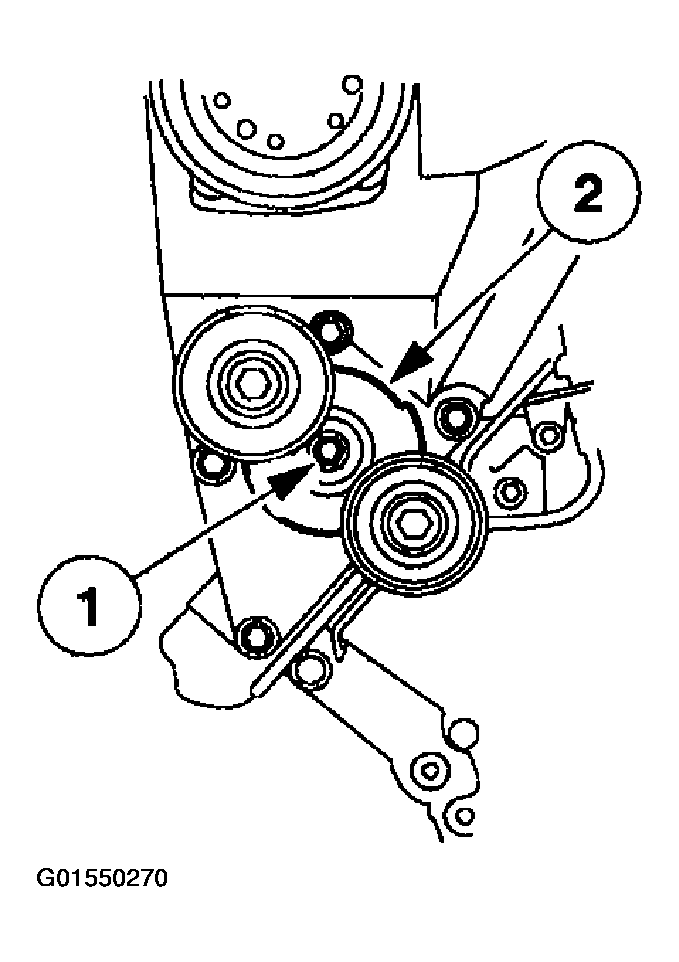

    Fig 1: Removing Accessory Drive Belt Tensioner
    G01550270Courtesy of FORD MOTOR CO.
