Belt Idler Pulley - 7.3L Diesel Engine: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the accessory drive belt idler pulley.
    1. Position the idler pulley.
    2. Install the mounting bolt.

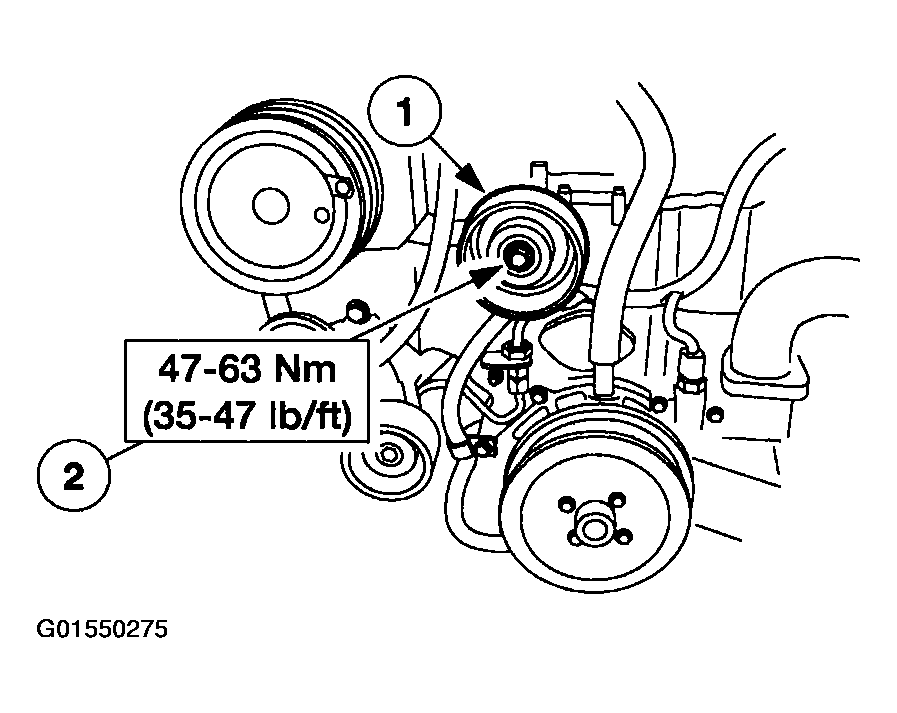

    Fig 1: Installing Accessory Drive Belt Idler Pulley
    G01550275Courtesy of FORD MOTOR CO.
  2. Install the accessory drive belt. Refer to ACCESSORY DRIVE BELT - (With A/C)  or ACCESSORY DRIVE BELT - (Without A/C) .
