Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Cooling Fan - Blade, Clutch and Shroud, 6.0L Diesel Engine. Refer to ENGINE COOLING .
  2. Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT - (With A/C)  or ACCESSORY DRIVE BELT - (Without A/C) .
  3. Remove the bolts and the drive belt tensioner.

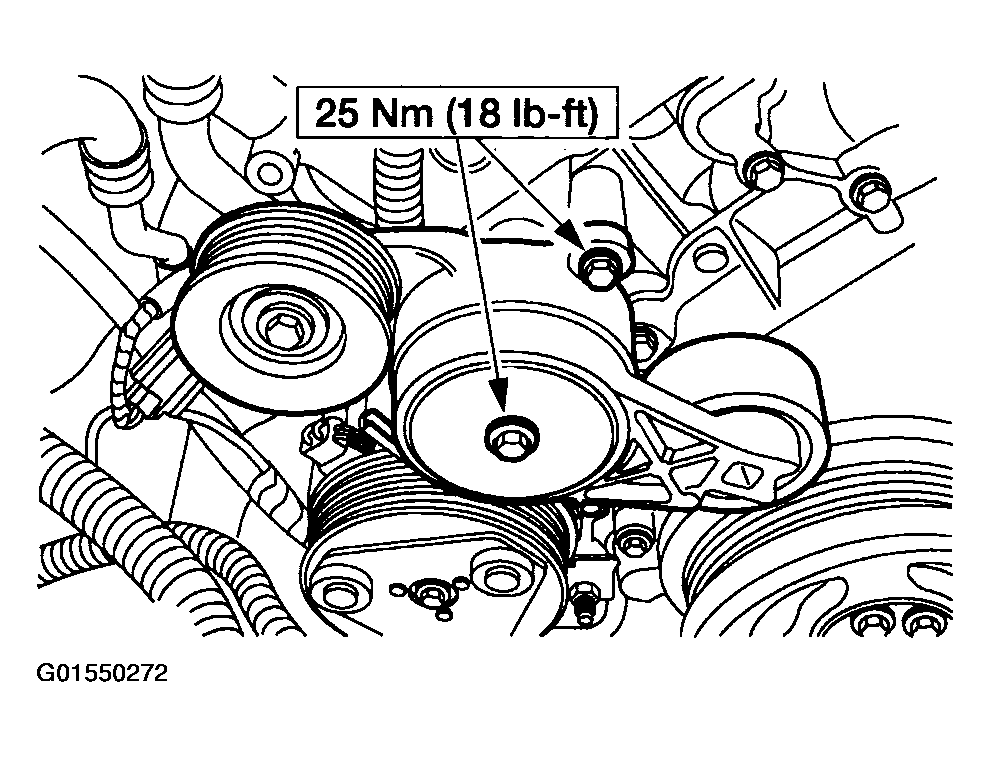

    Fig 1: Removing Bolts And Drive Belt Tensioner
    G01550272Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
