Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

7.3L engine

Drain the coolant system. Refer to ENGINE COOLING .
Disconnect the upper radiator hose.
6.0L engine
Remove the Cooling Fan - Blade, Clutch and Shroud, 6.0L Diesel Engine. Refer to ENGINE COOLING .
All engines
Rotate the drive belt tensioner counterclockwise and remove the drive belt.

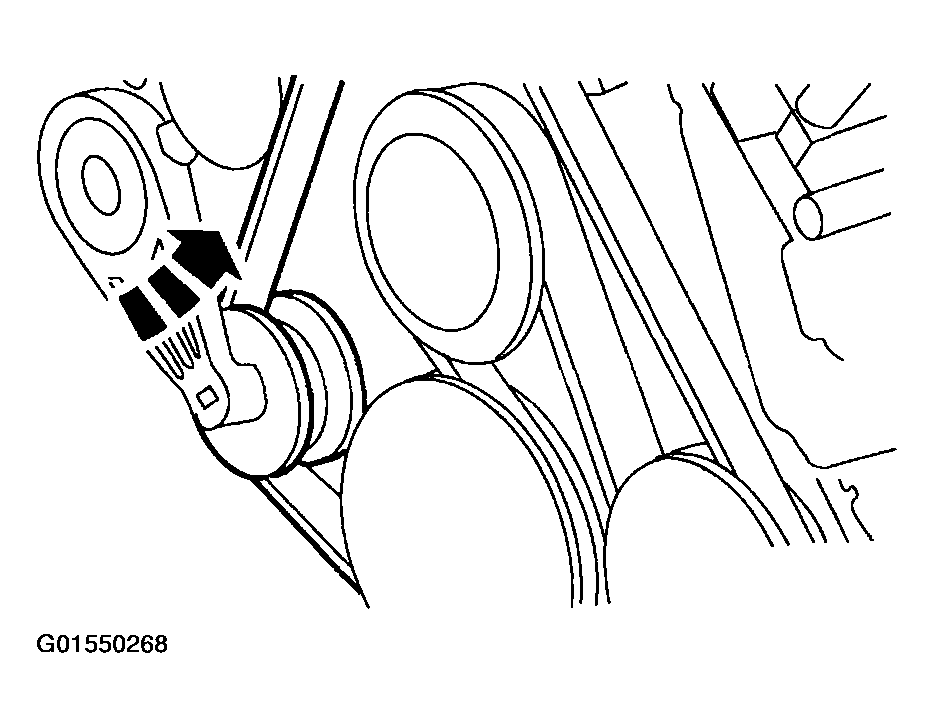

Fig 1: Rotating Drive Belt Tensioner Counterclockwise And Removing Drive Belt
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
