Accessory Drive

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The accessory drive:

has a single serpentine drive belt.
has automatic tensioning.
is not adjustable.

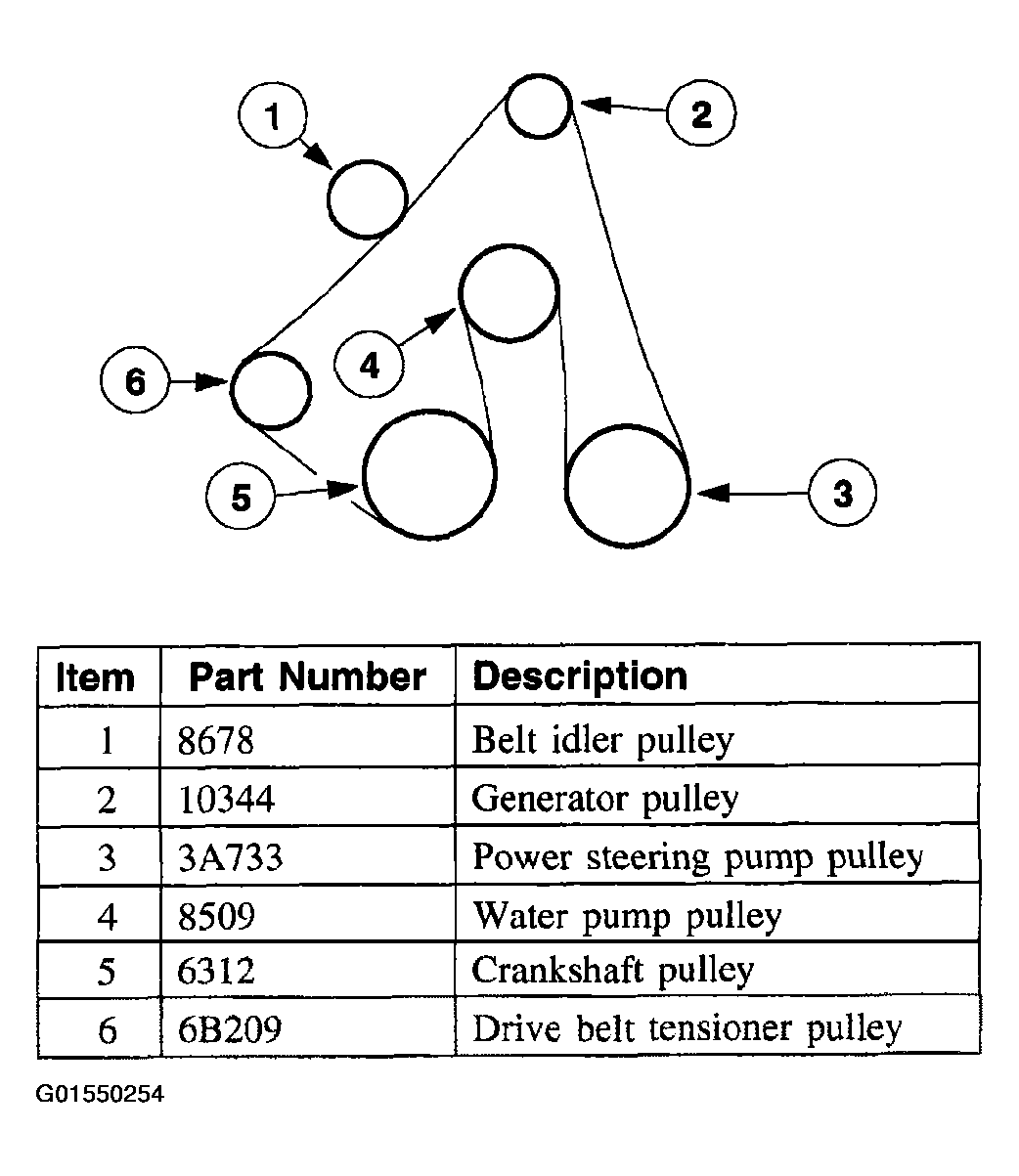

Fig 1: View Of Accessory Drive-5.4L, 6.8L without A/C

G01550254

Courtesy of FORD MOTOR CO.

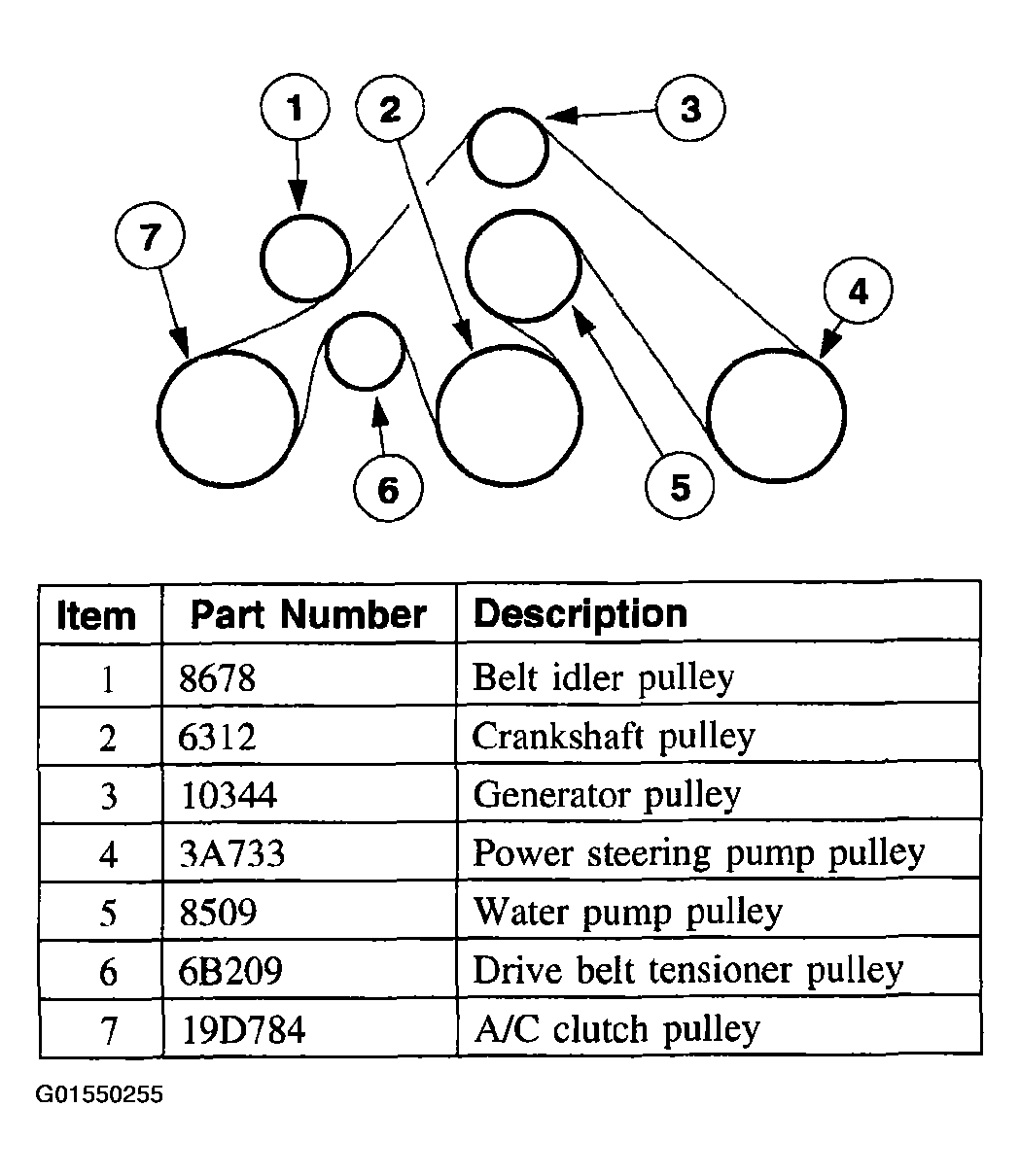

Fig 2: View Of Accessory Drive-5.4L, 6.8L with A/C

G01550255

Courtesy of FORD MOTOR CO.

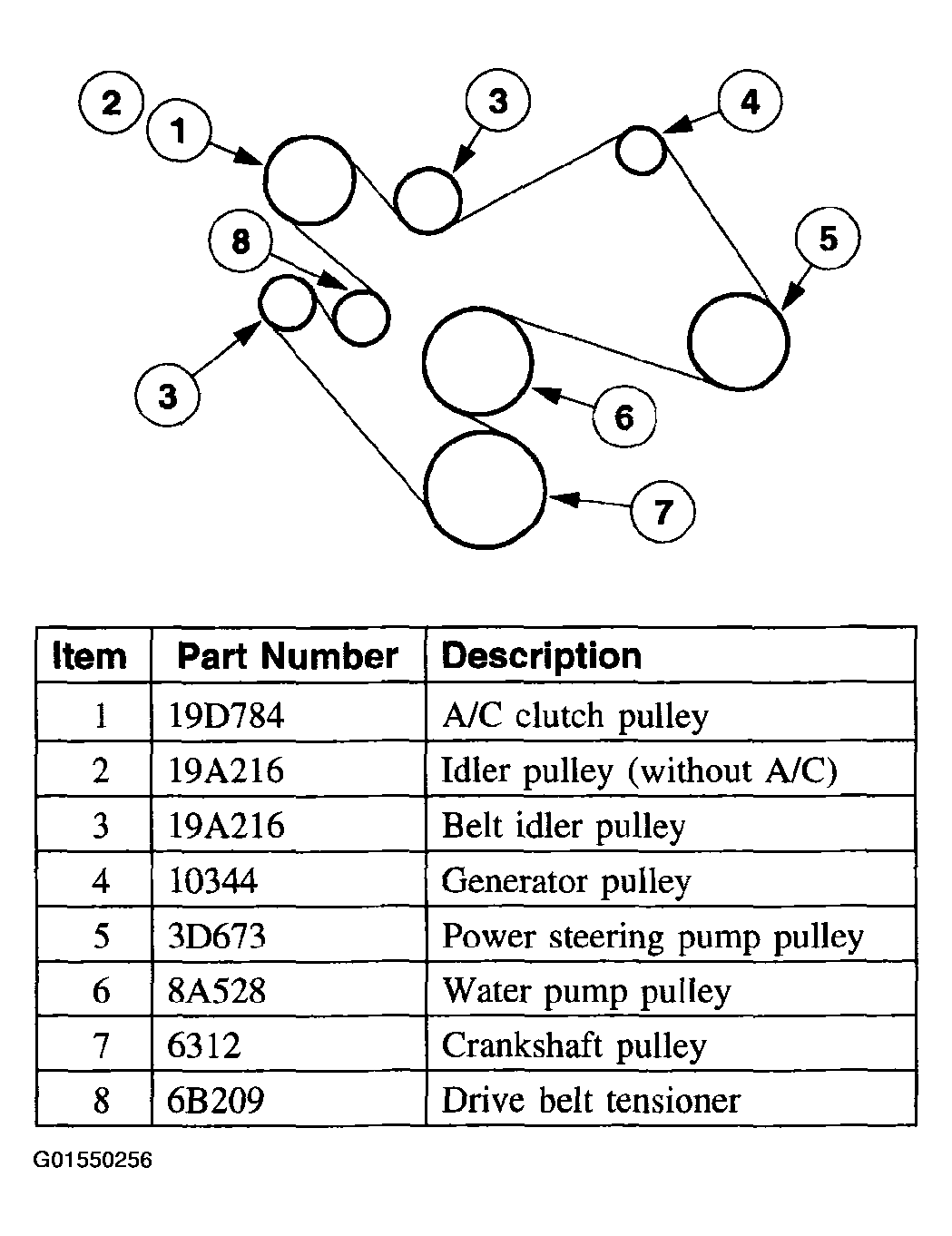

Fig 3: View Of Accessory Drive - 7.3L Diesel Engine Single Generator

G01550256

Courtesy of FORD MOTOR CO.

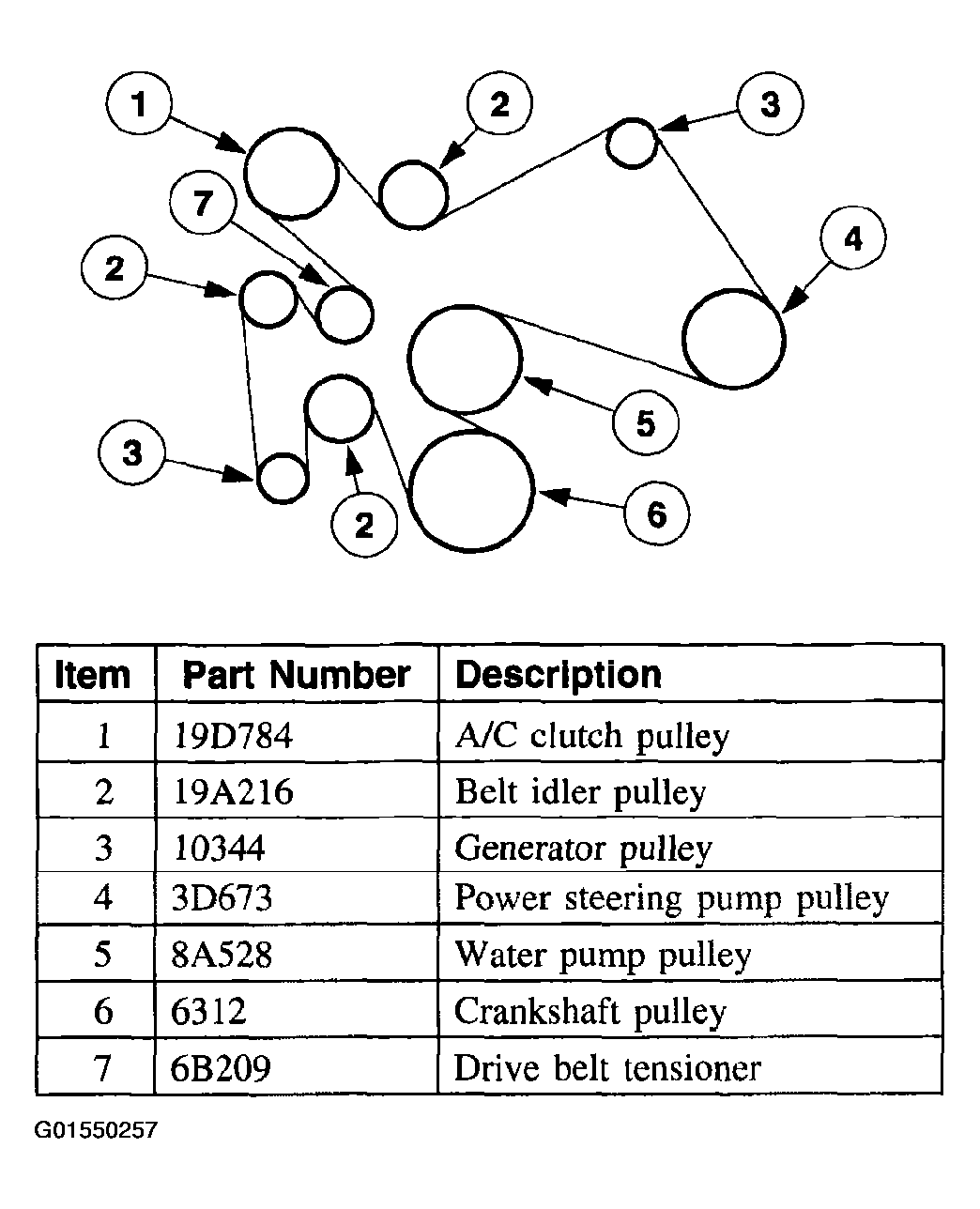

Fig 4: View Of Accessory Drive - 7.3L Diesel Engine Dual Generator

G01550257

Courtesy of FORD MOTOR CO.

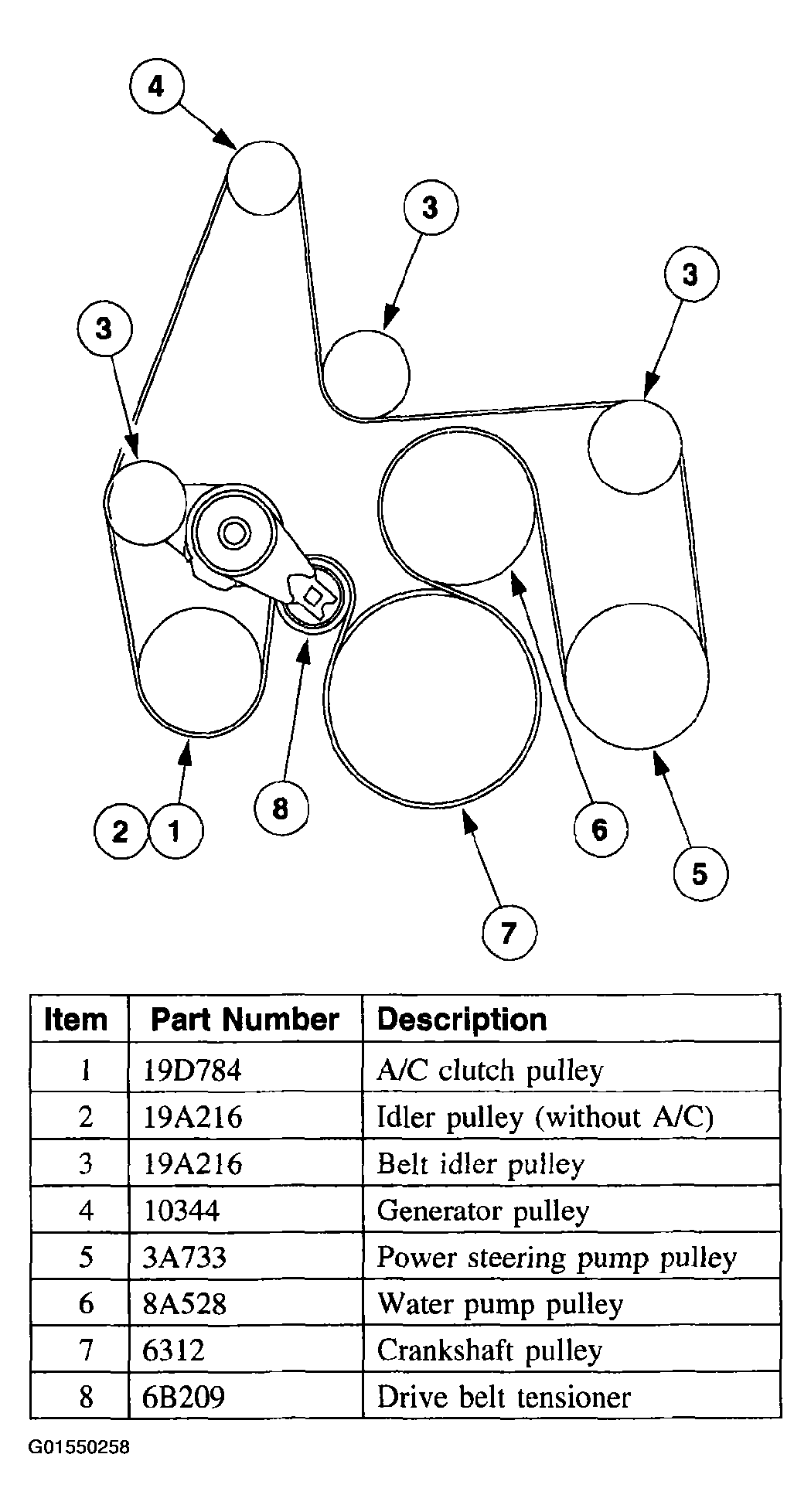

Fig 5: View Of Accessory Drive - 6.0L Diesel Engine Single Generator

G01550258

Courtesy of FORD MOTOR CO.

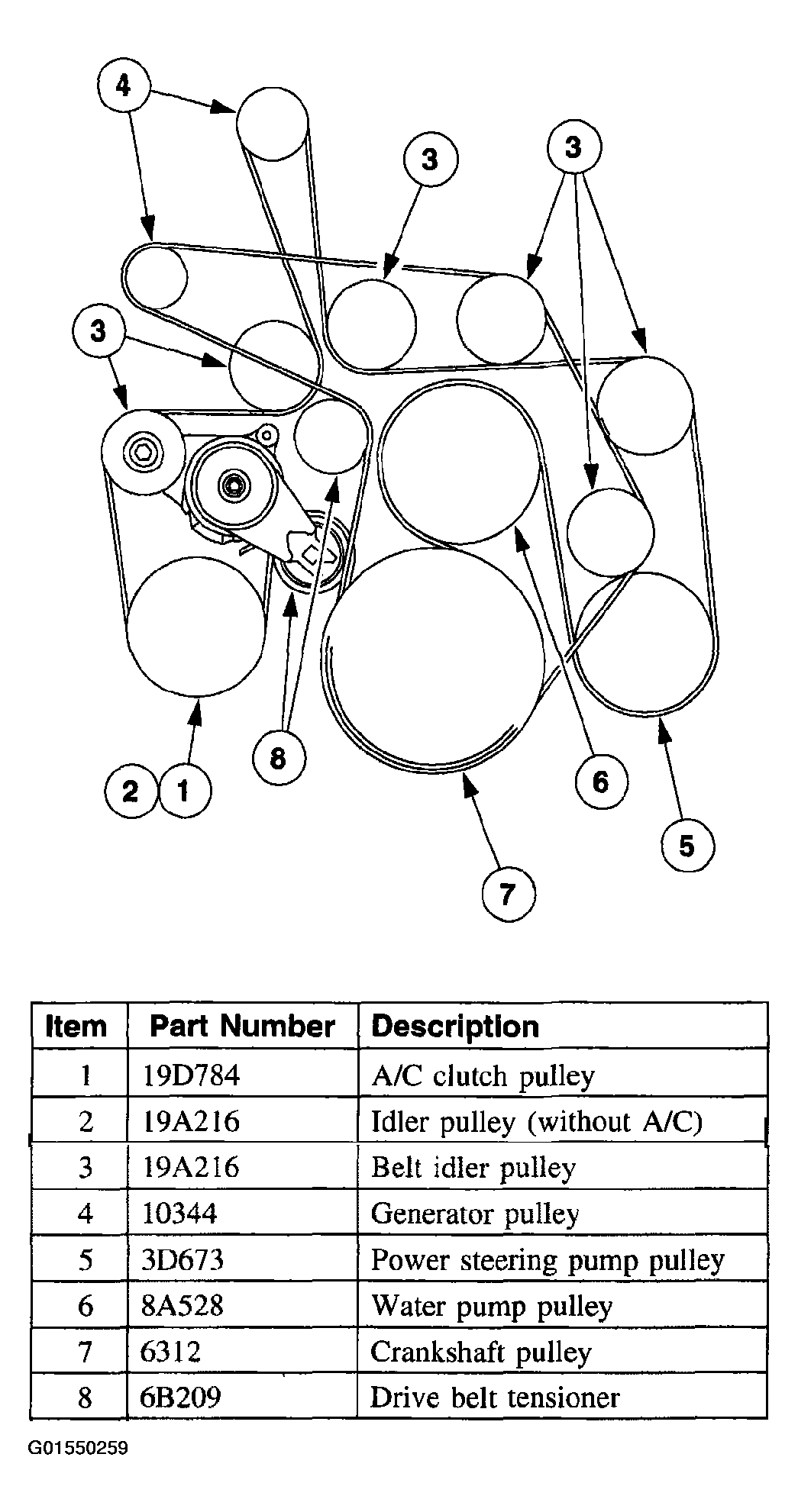

Fig 6: View Of Accessory Drive - 6.0L Diesel Engine Dual Generator

G01550259

Courtesy of FORD MOTOR CO.
