Water Pump - Gasoline Engines: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
Remove the engine cooling fan and clutch. Refer to COOLING FAN - Blade, Clutch and Shroud, 5.4L, 6.8L, 7.3L Diesel .
Remove the drive belt. Refer to ACCESSORY DRIVE .
Remove the coolant pump pulley (8509).
1. Remove the bolts.
2. Remove the coolant pump pulley.

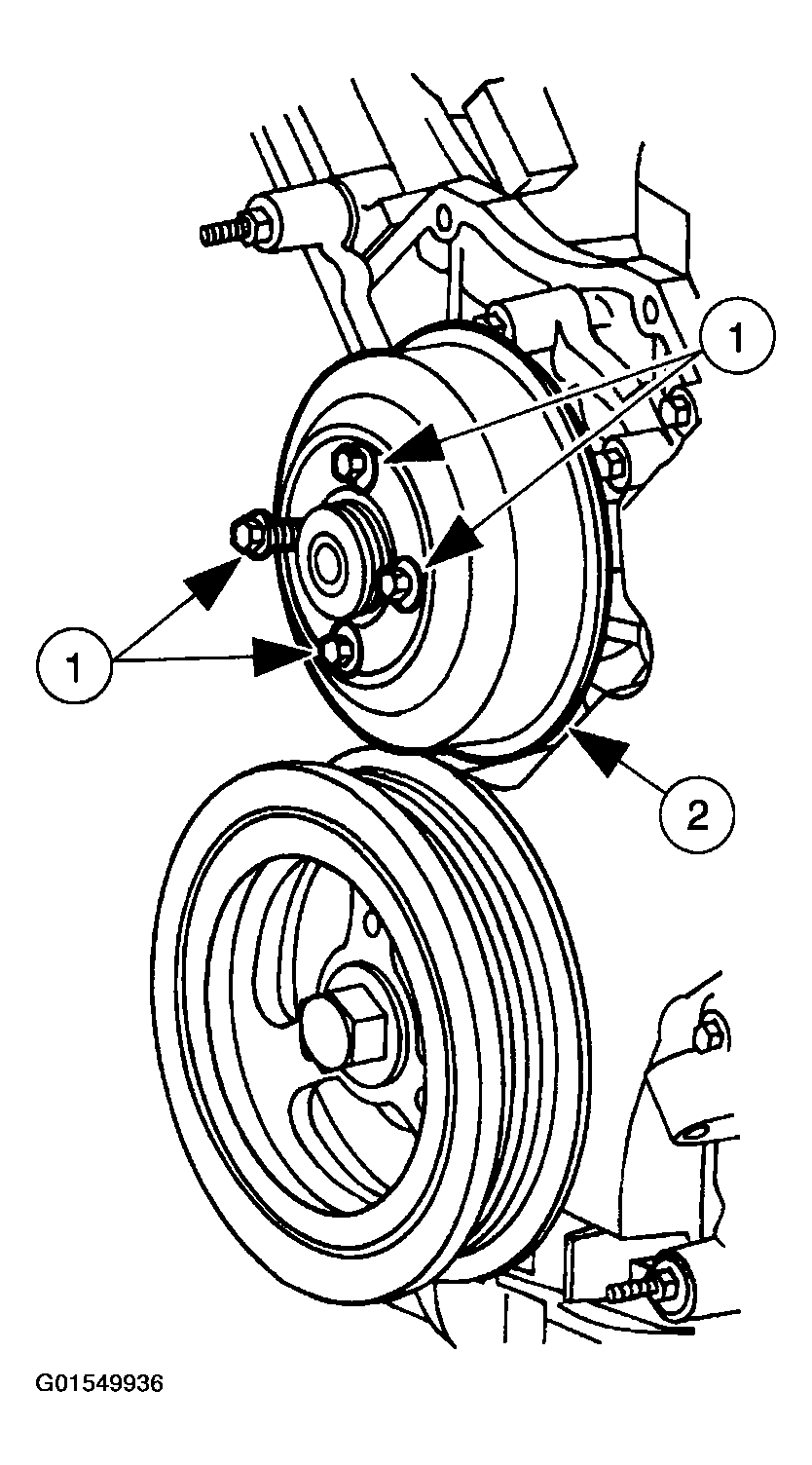

  Fig 1: Removing Coolant Pump Pulley (8509)
  Courtesy of FORD MOTOR CO.
Remove the bolts.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the (A) coolant pump from the (B) cylinder block.
- Clean and inspect the mating surfaces.

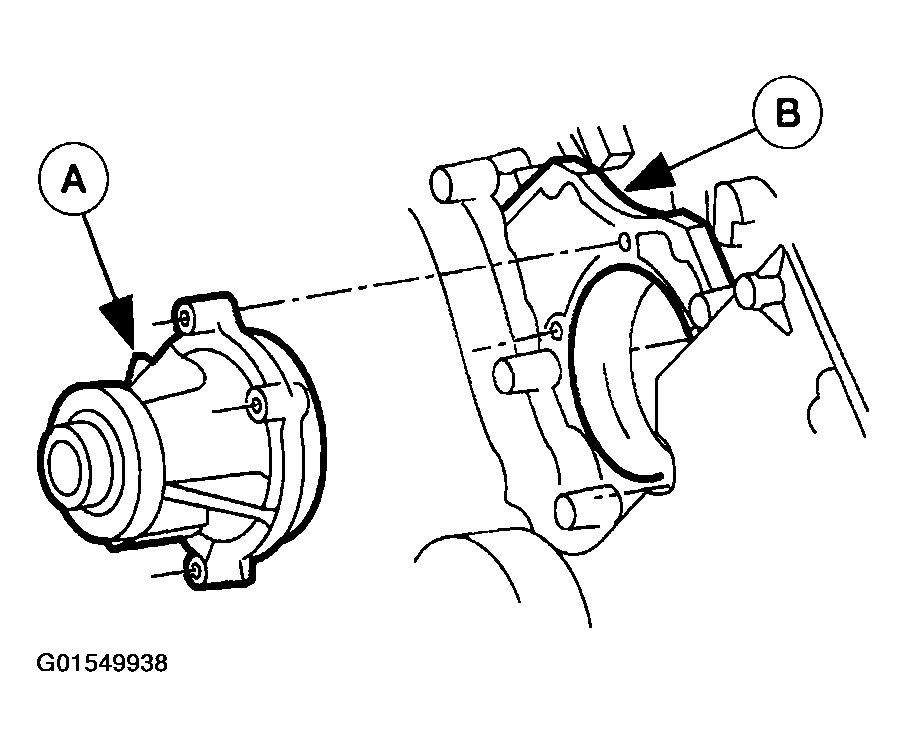

  Fig 3: Removing (A) Coolant Pump From (B) Cylinder Block
  Courtesy of FORD MOTOR CO.
