Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
  2. Remove the cooling fan and clutch. Refer to COOLING FAN - Blade, Clutch and Shroud, 6.0L Diesel Engine .
  3. Remove the accessory drive belt. Refer to ACCESSORY DRIVE .
  4. Remove the bolts and the coolant pump pulley.

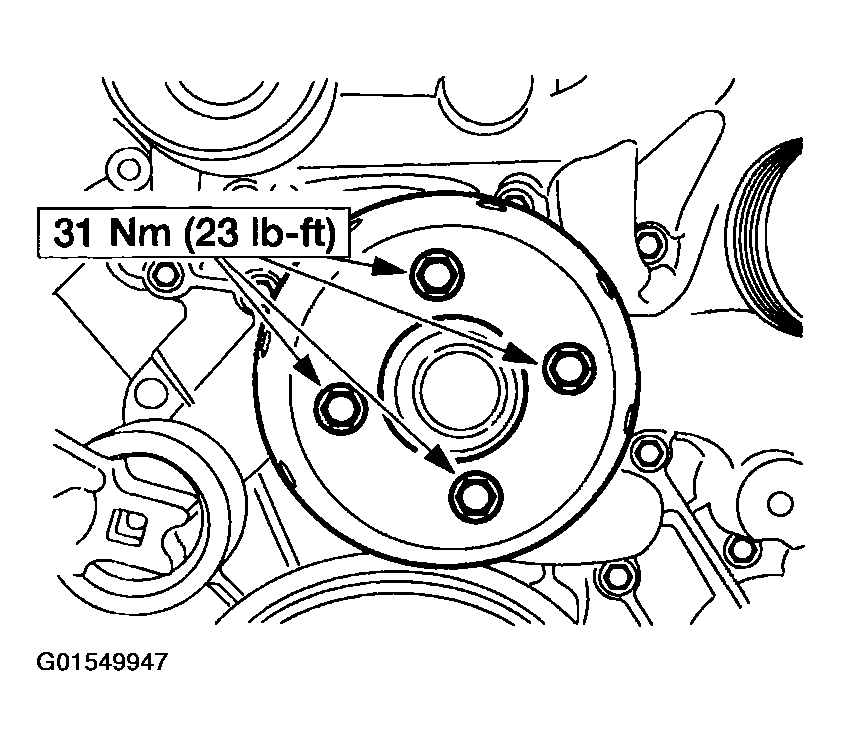

    Fig 1: Removing Bolts And Coolant Pump Pulley
    G01549947Courtesy of FORD MOTOR CO.
  5. Remove the bolts and the coolant pump.
    • Remove and discard the O-ring seal.

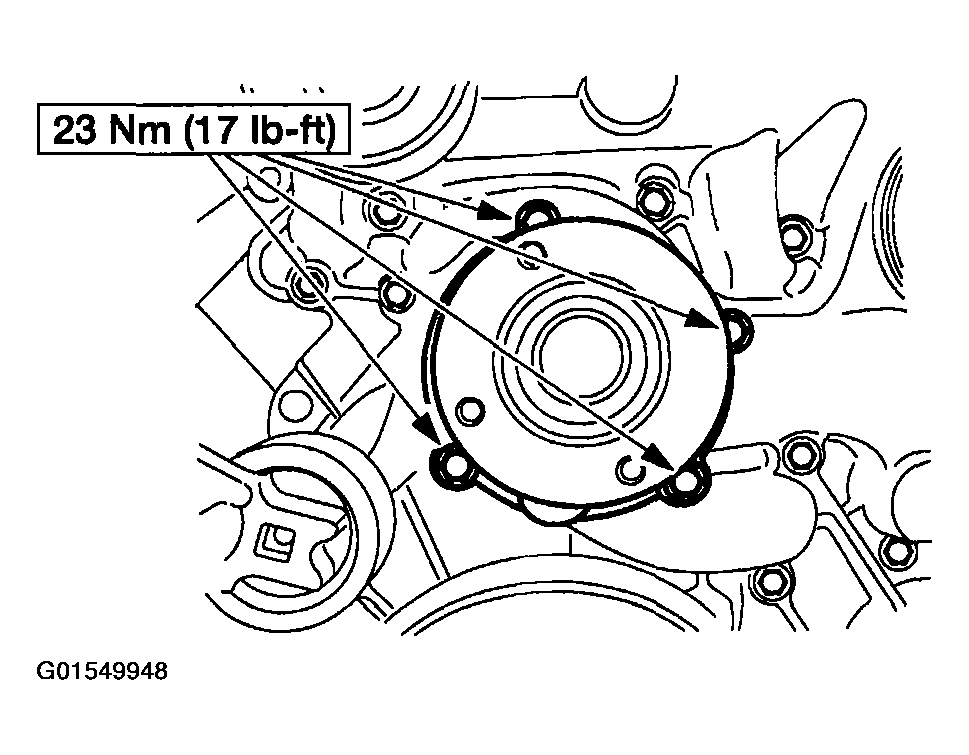

      Fig 2: Removing Bolts And Coolant Pump
      G01549948Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
    • Clean and inspect the coolant pump mounting.
