Thermostat - 5.4L, 6.8L Gasoline Engines: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
  2. Disconnect the upper radiator hose.
  3. Remove the coolant outlet connection.
    • Remove the bolts.
    • Remove the coolant outlet connection.
  4. Remove the (A) coolant thermostat (8575) and the (B) O-ring seal.
    • Discard the (B) O-ring seal.

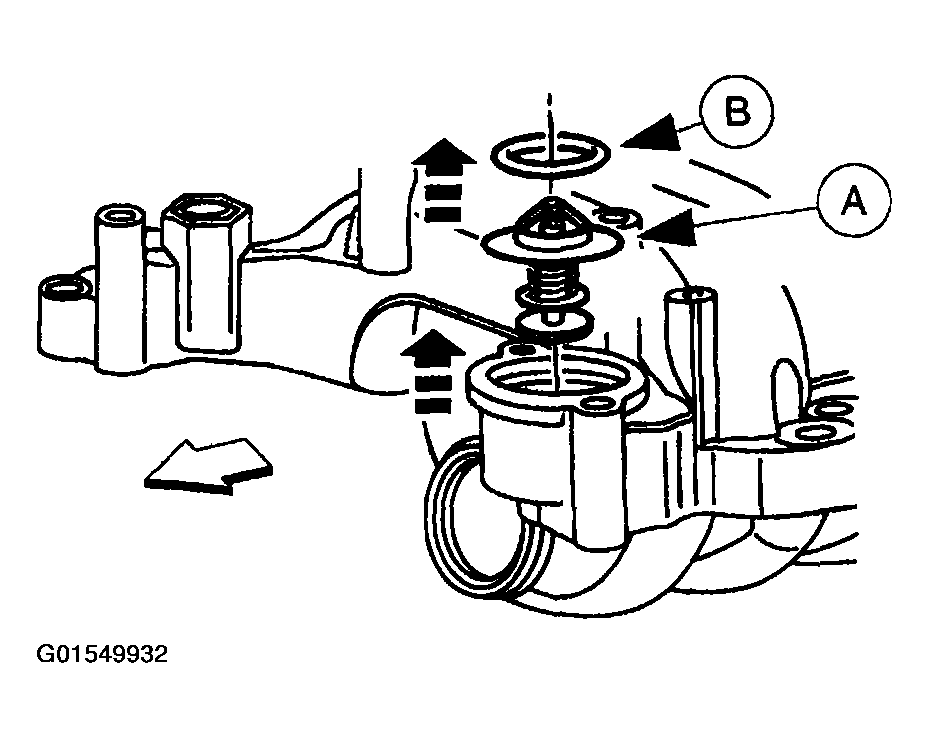

    Fig 1: Removing (A) Coolant Thermostat (8575) And (B) O-Ring Seal
    G01549932Courtesy of FORD MOTOR CO.
