Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With vehicle in neutral, position it on a hoist.
Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .

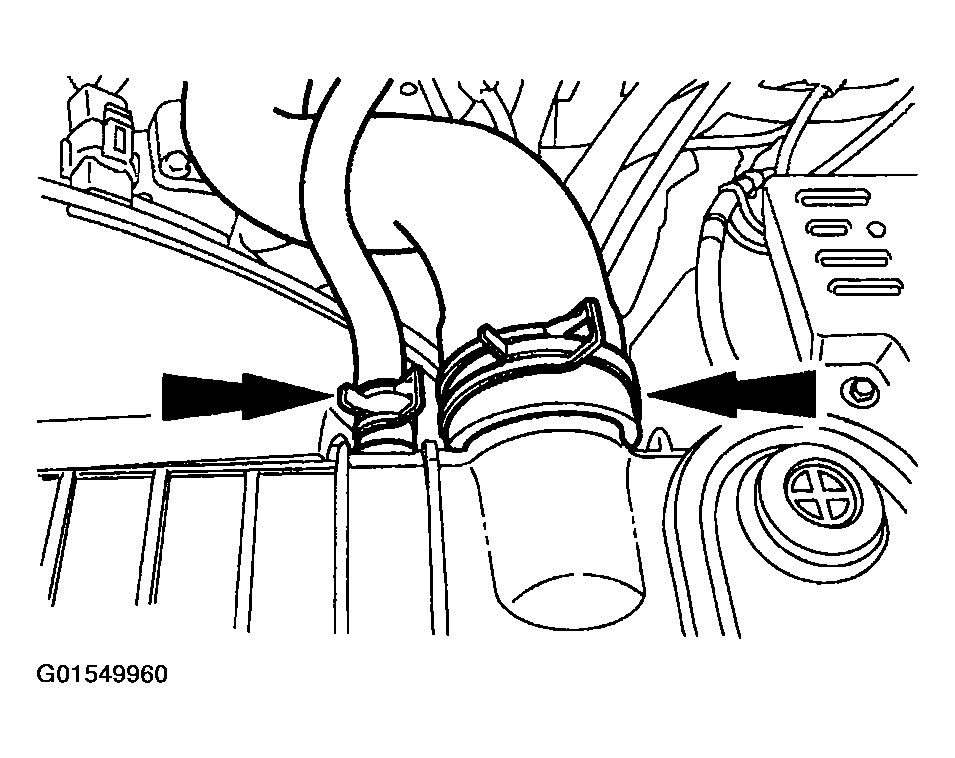

Disconnect the upper radiator hose and the radiator overflow hose.

Fig 1: Disconnecting Upper Radiator Hose And Radiator Overflow Hose
Courtesy of FORD MOTOR CO.
Remove the cooling fan. Refer to COOLING FAN - Blade, Clutch and Shroud, 6.0L Diesel Engine .

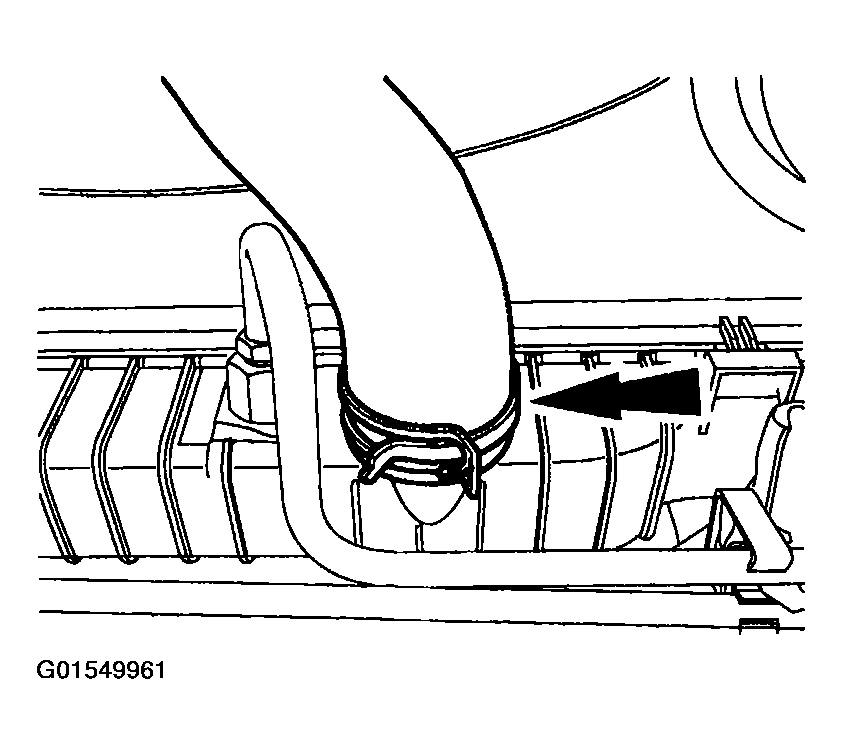

Disconnect the lower radiator hose.

Fig 2: Disconnecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.

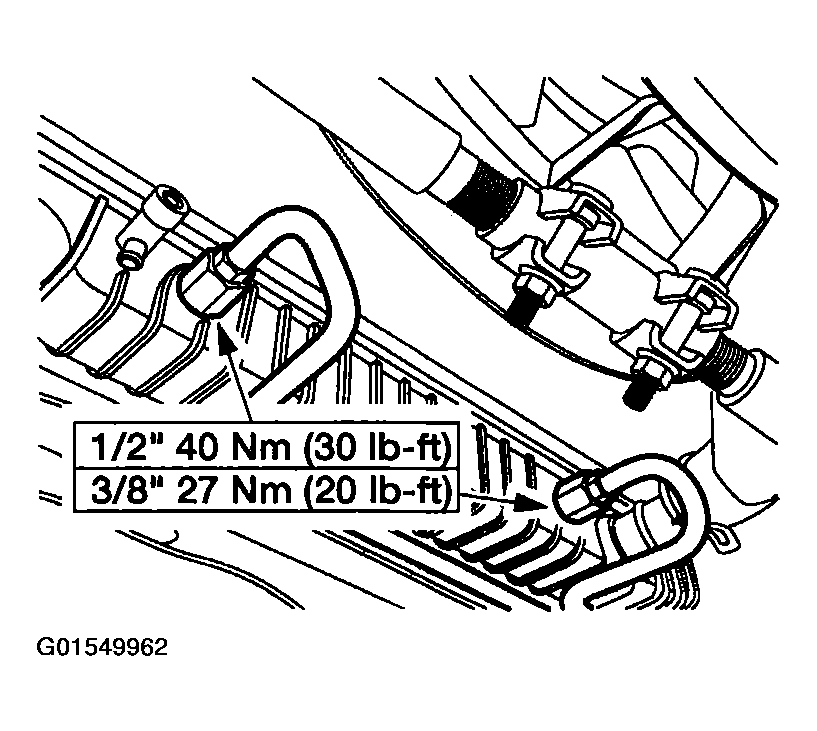

Disconnect the transmission cooler tubes.

Fig 3: Disconnecting Transmission Cooler Tubes
Courtesy of FORD MOTOR CO.

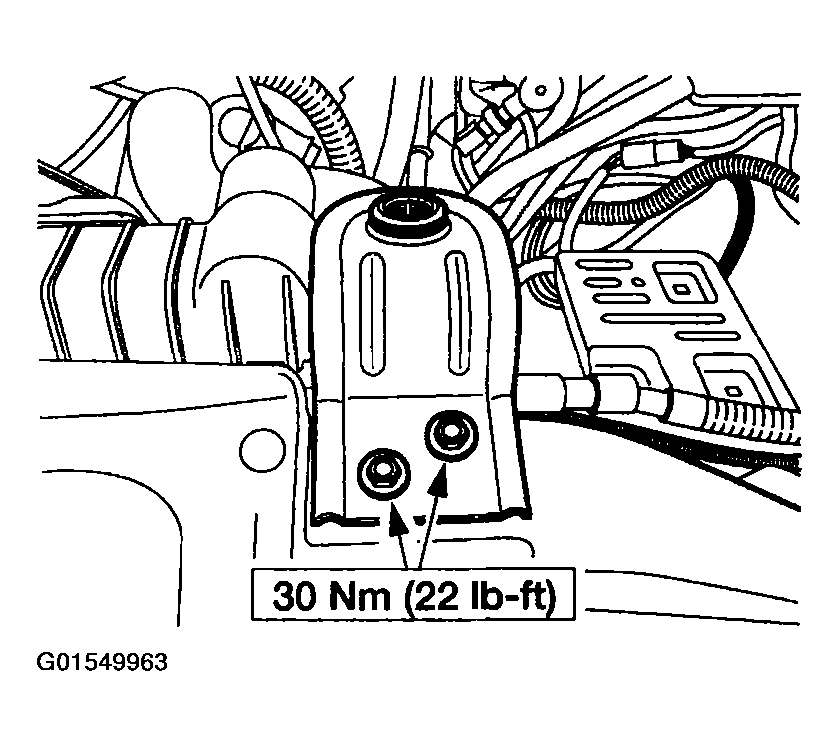

Remove the radiator support brackets and radiator.

Fig 4: Removing Radiator Support Brackets And Radiator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
