Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain cooling system. Refer to Cooling System Draining, Filling and Bleeding .
Disconnect the engine vent hose and radiator overflow hose.

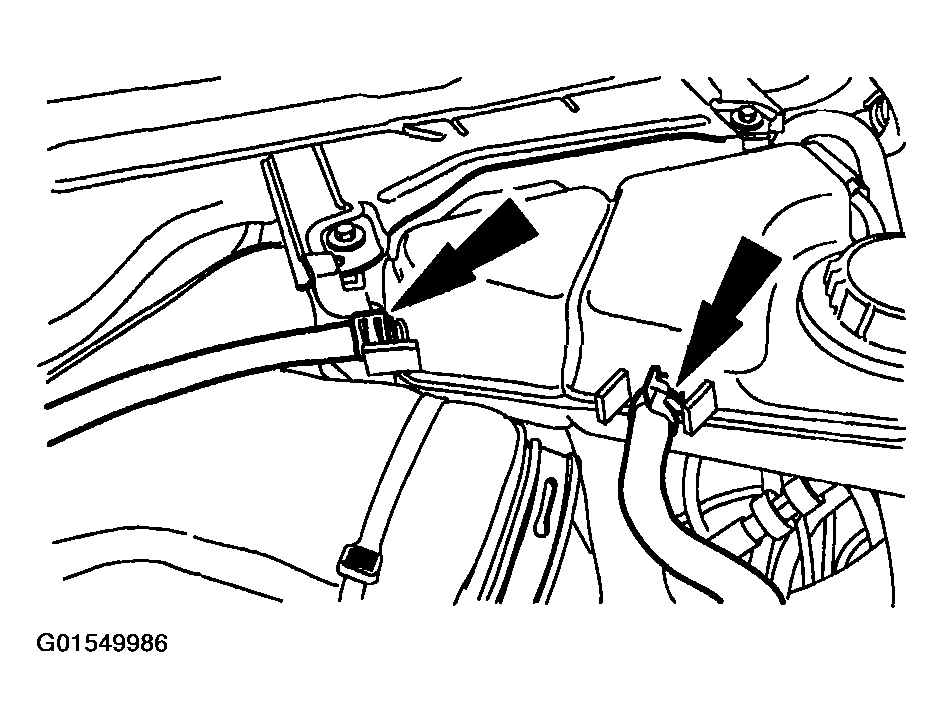

Fig 1: Disconnecting Engine Vent Hose And Radiator Overflow Hose
Courtesy of FORD MOTOR CO.
Disconnect the degas bottle supply hose.

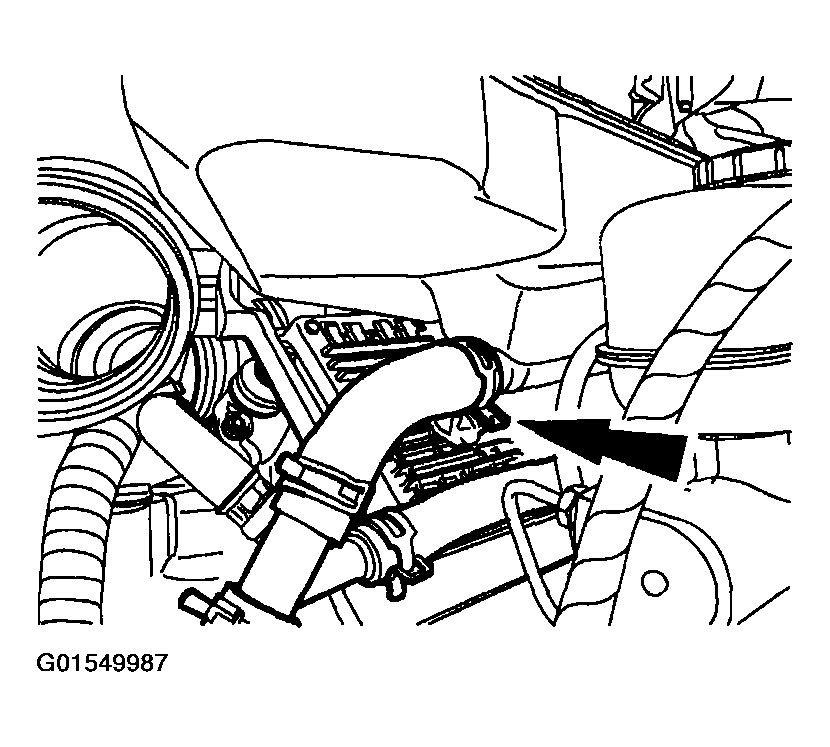

Fig 2: Disconnecting Degas Bottle Supply Hose
Courtesy of FORD MOTOR CO.
Remove the bolts and the degas bottle.

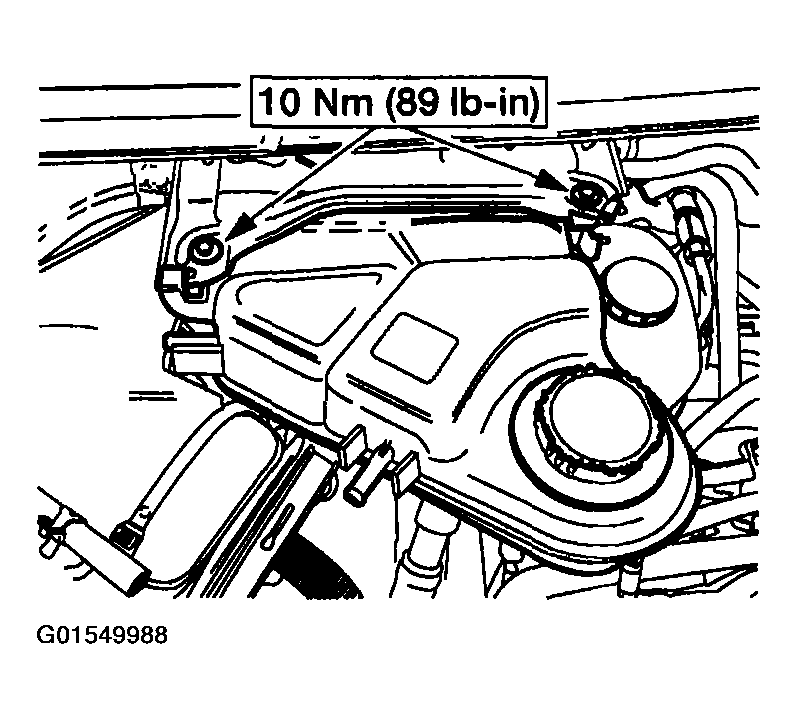

Fig 3: Removing Bolts And Degas Bottle
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
