Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .

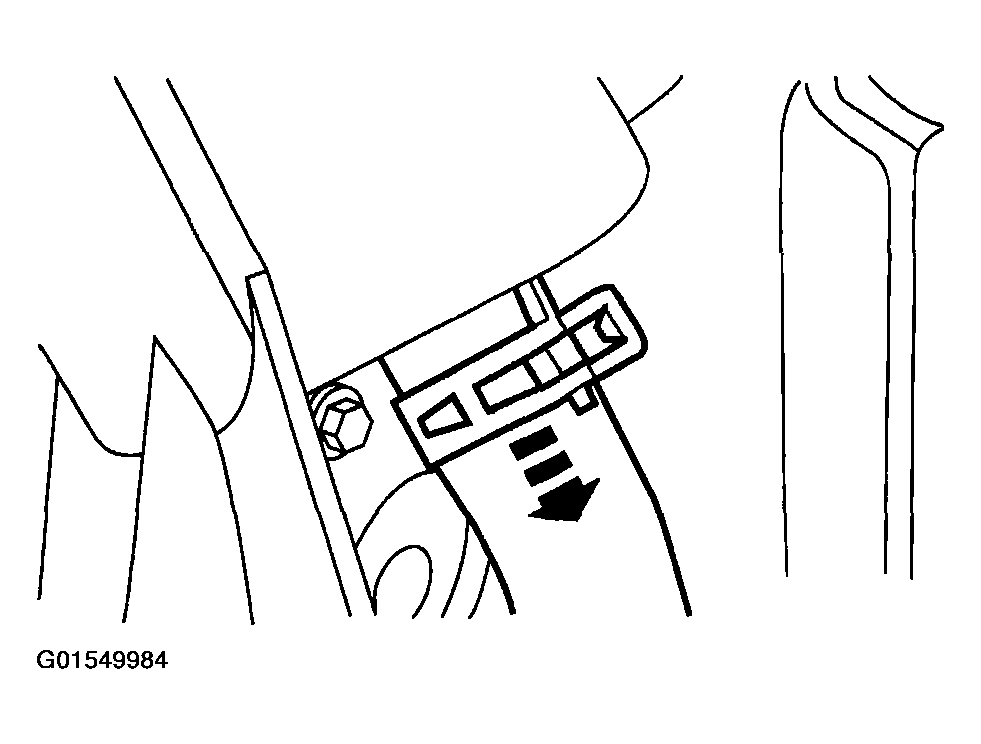

Squeeze the clamp and remove the overflow hose.

Fig 1: Squeezing Clamp
Courtesy of FORD MOTOR CO.

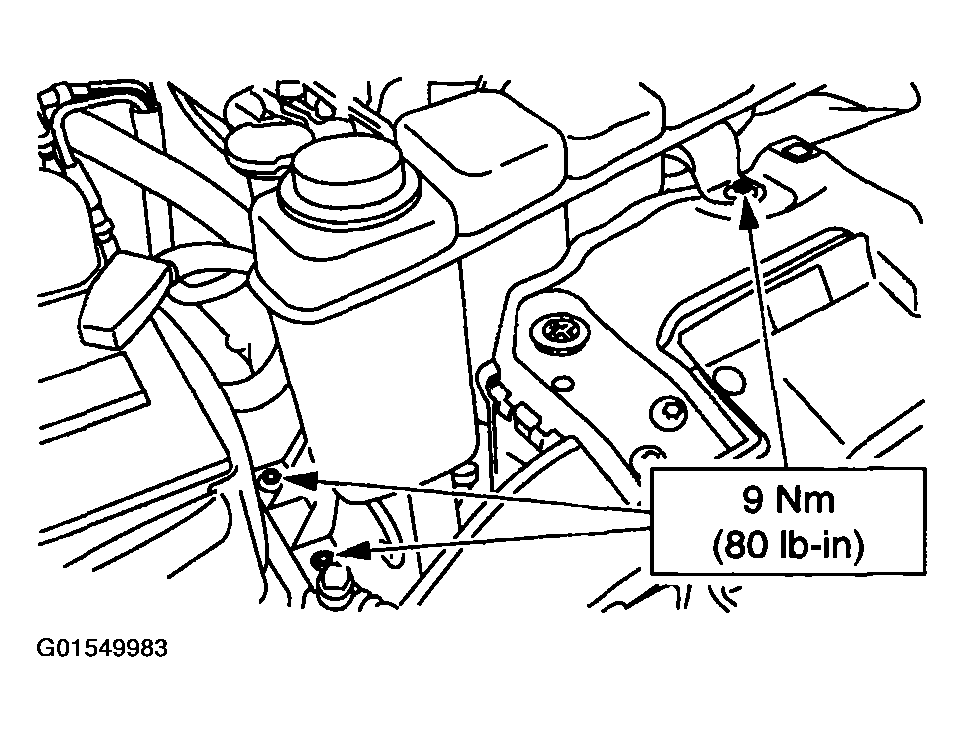

Remove the bolts.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Squeeze the clamp and remove the degas bottle supply hose.

Fig 3: Squeezing Clamp
Courtesy of FORD MOTOR CO.

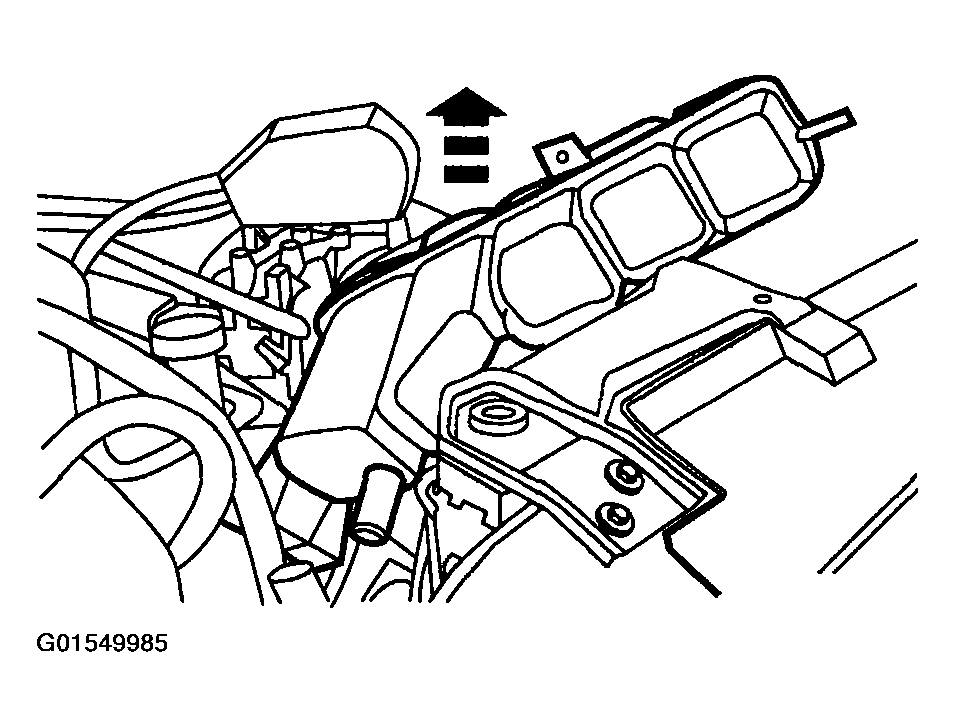

Remove the degas bottle.

Fig 4: Removing Degas Bottle
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
