Cooling Fan - Blade, Clutch and Shroud, 6.0L Diesel Engine: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner assembly.
Remove the shroud to stator seal.

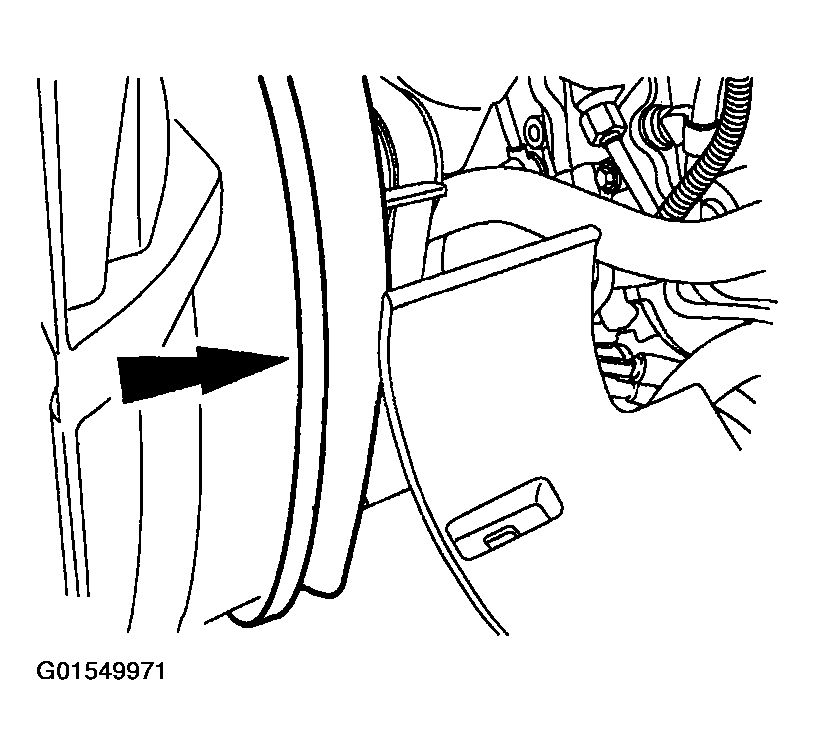

Fig 1: Removing Shroud To Stator Seal
Courtesy of FORD MOTOR CO.

New shrouds

CAUTION: Use care not to damage the radiator or stator when cutting the shroud.

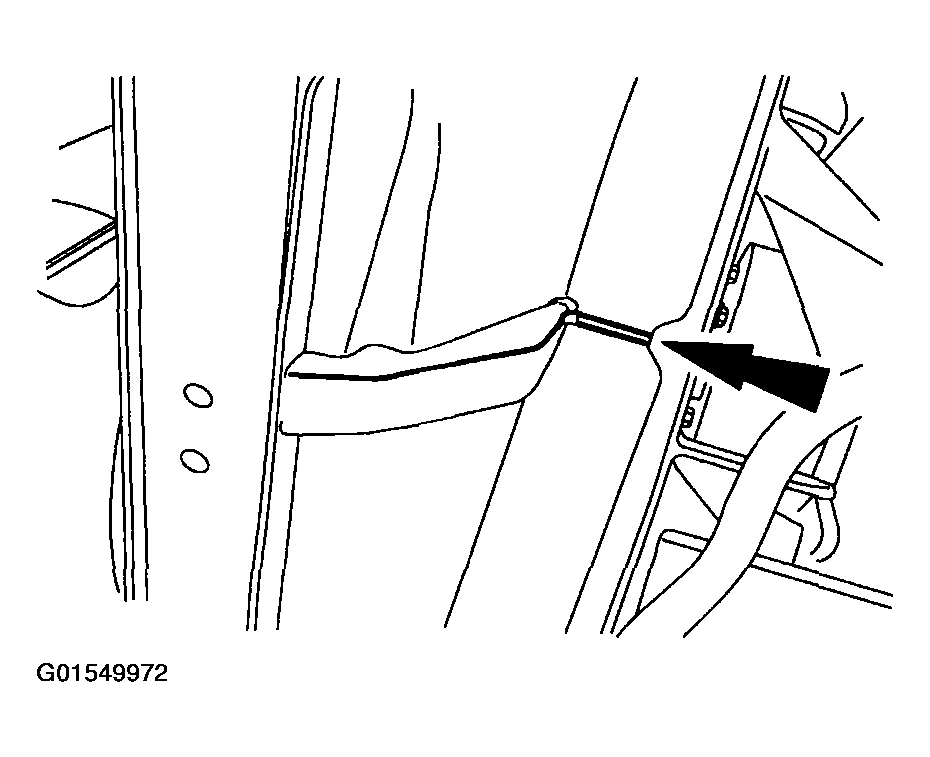

Fig 2: Locating Cut On Shroud

Courtesy of FORD MOTOR CO.

Cut both sides of the shroud at the location shown and remove the upper shroud.
Previously removed shrouds
Remove the four screws and the upper shroud.

Fig 3: Removing Four Screws And Upper Shroud
Courtesy of FORD MOTOR CO.

All shrouds
Disconnect the cooling fan electrical connector. Unclip and position the fan and wiring aside.

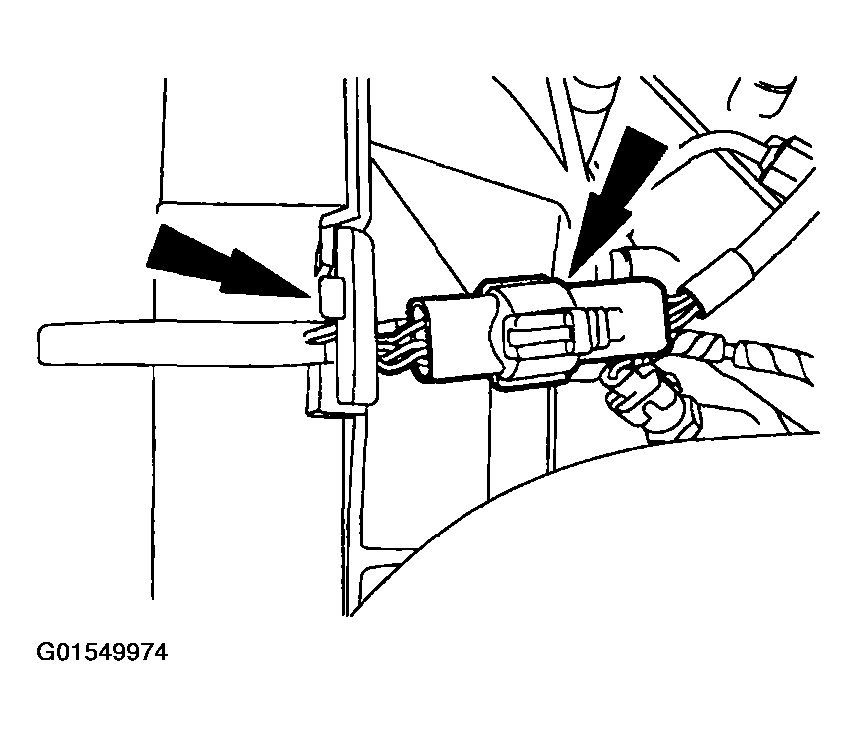

Fig 4: Disconnecting Cooling Fan Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Use a hole in the fan hub to prevent the fan from turning.

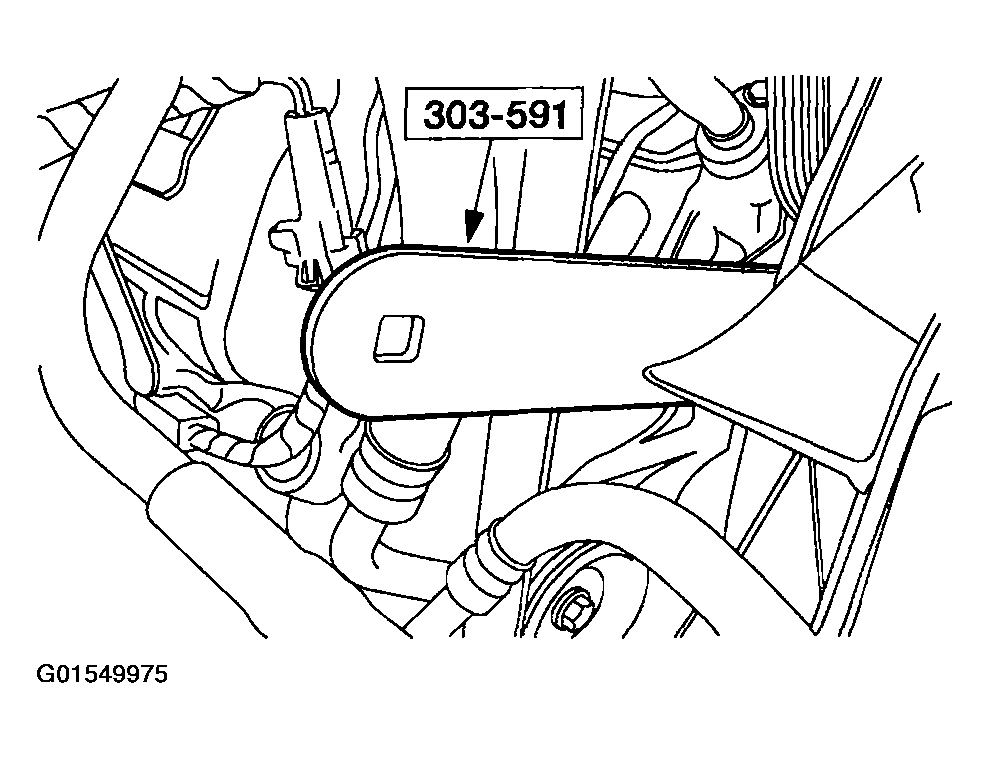

Fig 5: Loosening Fan Clutch

Courtesy of FORD MOTOR CO.

Using the special tool, loosen the fan clutch.

NOTE: Fan and radiator removed for clarity.

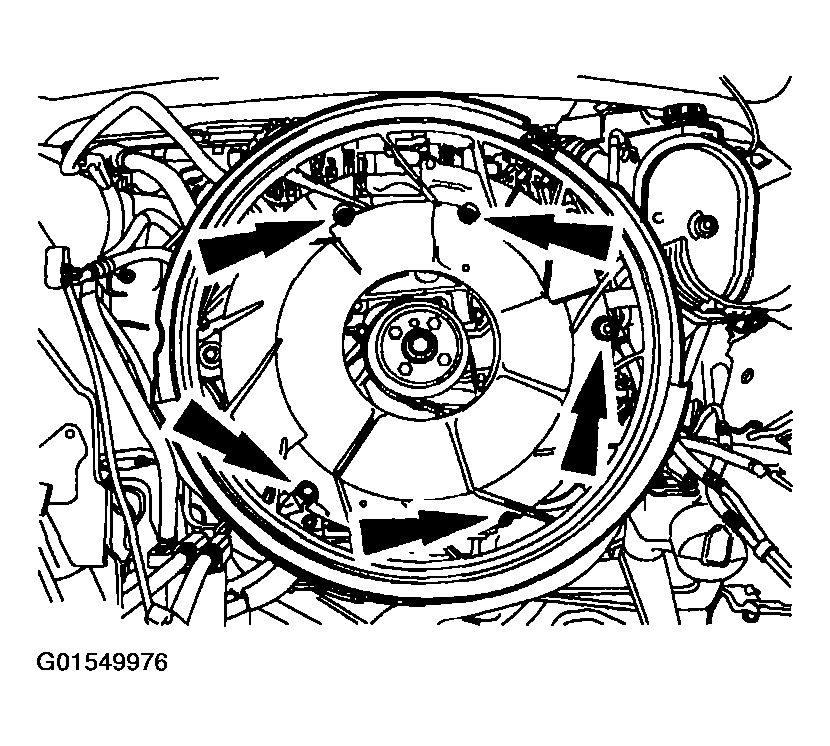

Fig 6: Removing Bolts From Stator

Courtesy of FORD MOTOR CO.

Remove the bolts from the stator.
Remove the cooling fan and stator assembly.
Remove the lower fan shroud.
