Cooling Fan - Blade, Clutch and Shroud, 6.0L Diesel Engine: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All shrouds

Install the lower fan shroud.
Install the cooling fan and stator assembly.

NOTE: Fan and radiator removed for clarity.

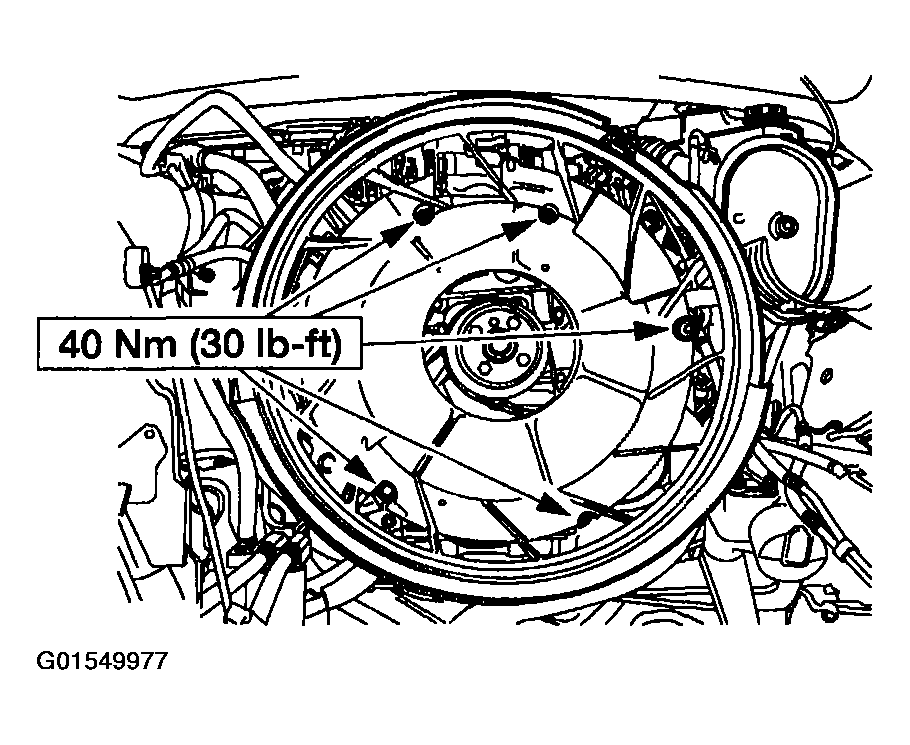

Fig 1: Installing Cooling Fan And Stator Assembly

Courtesy of FORD MOTOR CO.

Install the stator bolts.

NOTE: Use a hole in the fan hub to prevent the fan from turning.

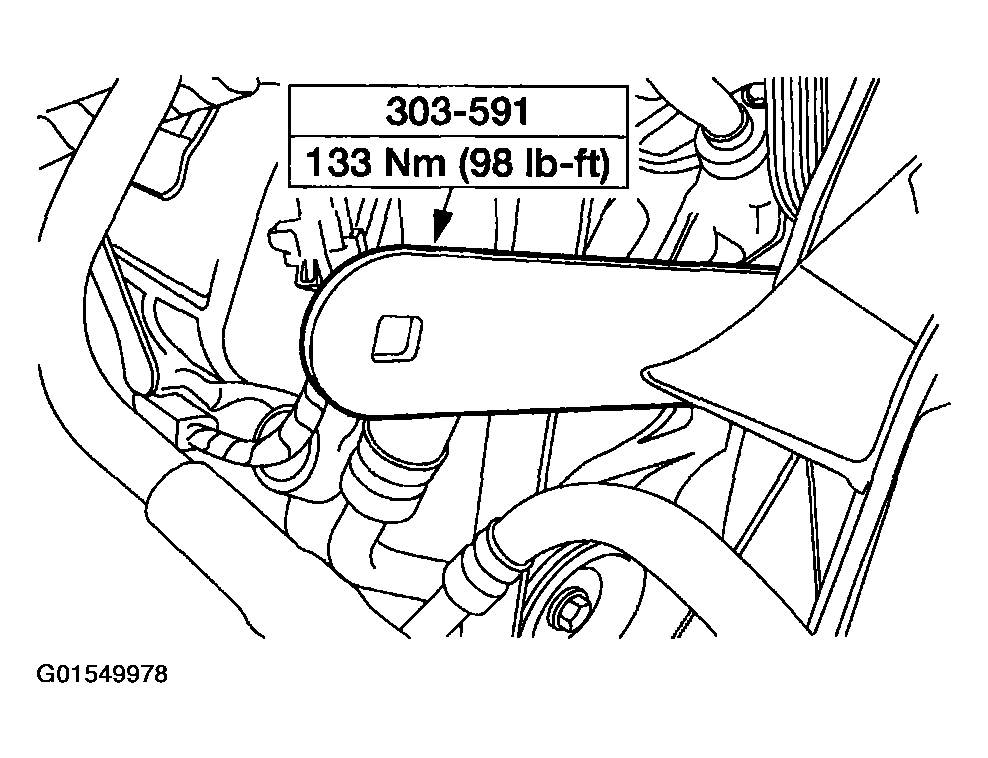

Fig 2: Tightening Cooling Fan And Clutch

Courtesy of FORD MOTOR CO.

Using the special tool, tighten the cooling fan and clutch.
Position the cooling fan wiring. Connect the cooling fan electrical connector.

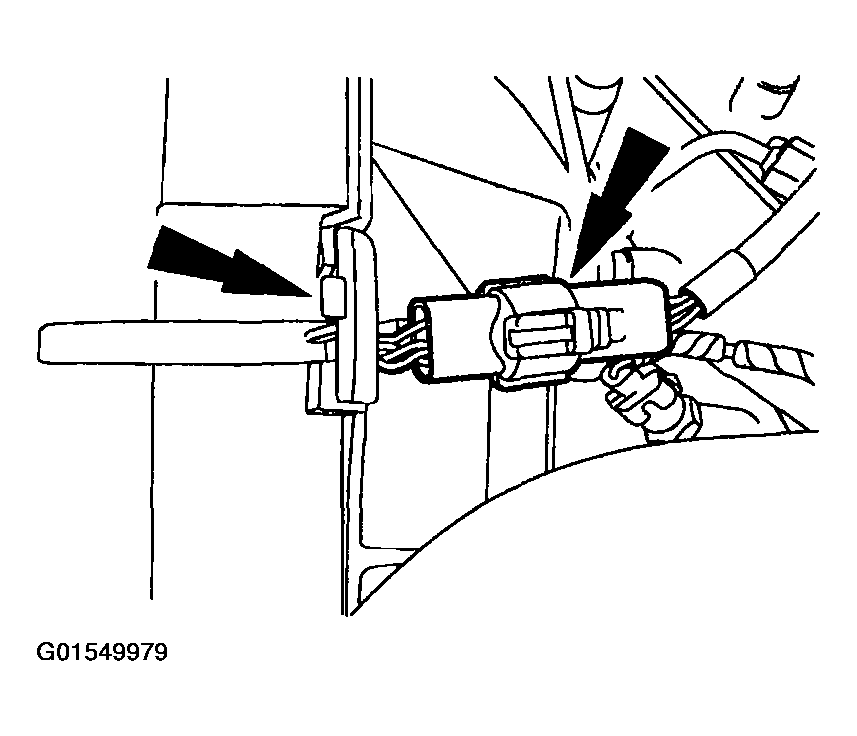

Fig 3: Connecting Cooling Fan Electrical Connector
Courtesy of FORD MOTOR CO.

New shrouds
Install the upper shroud. If necessary, drill both sides of the shroud at the locations shown.

Fig 4: Installing Upper Shroud
Courtesy of FORD MOTOR CO.

All shrouds
Install the four upper to lower shroud screws.

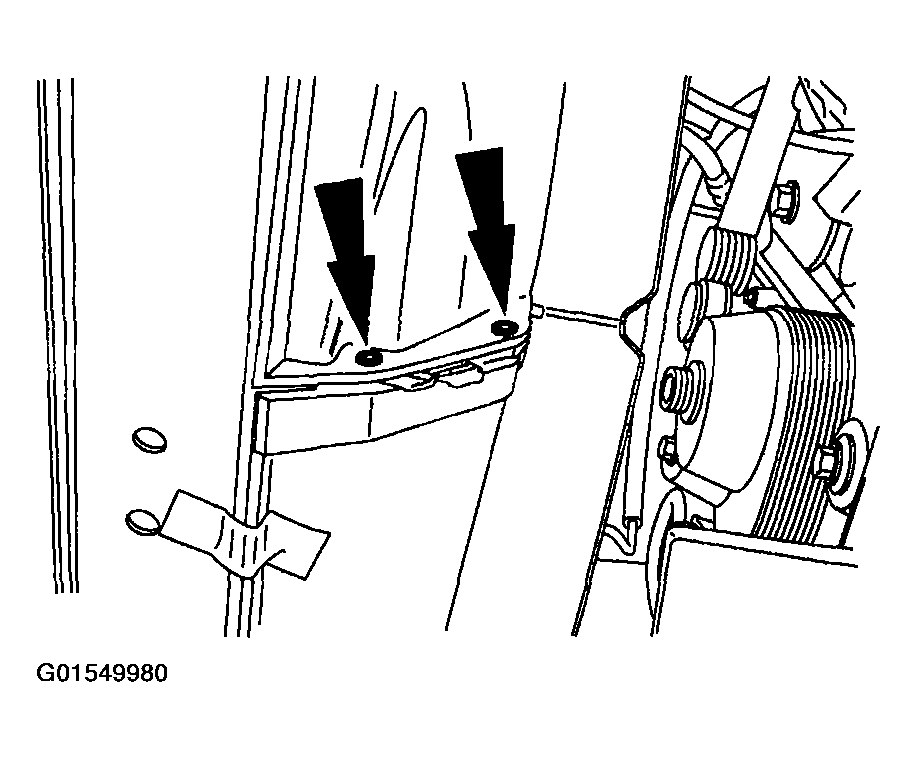

Fig 5: Installing Upper To Lower Shroud Screws
Courtesy of FORD MOTOR CO.
Install the shroud to stator seal.
Install the air cleaner assembly.
