Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
Remove the three bolts and position the degas bottle out of the way.

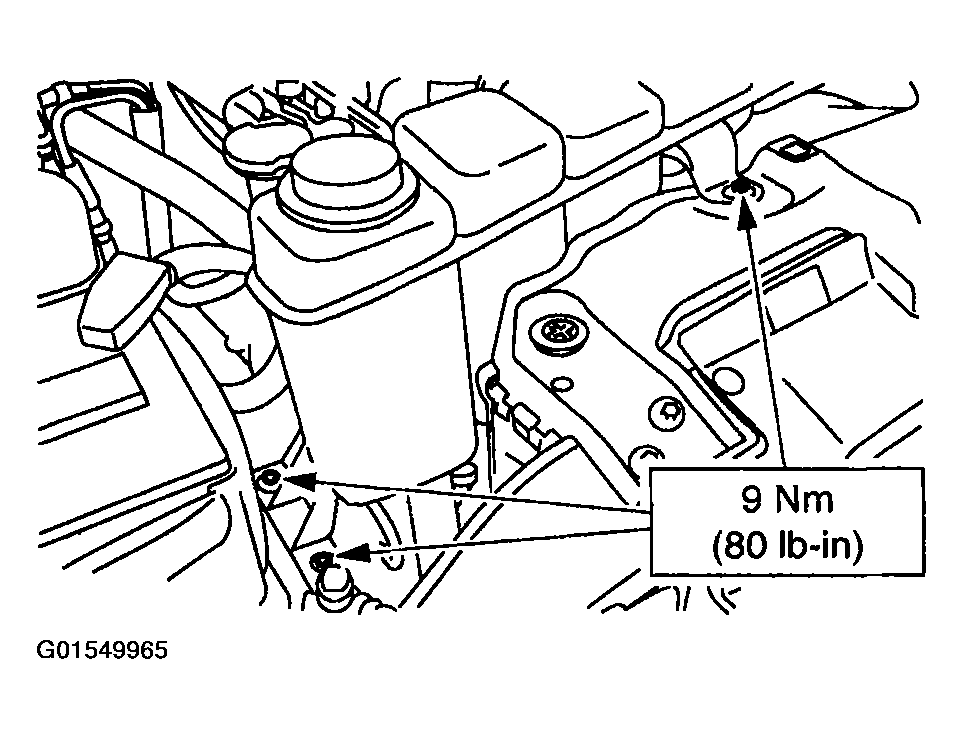

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.
Squeeze the clamp, pull the hose off and position the upper radiator hose out of the way.

Fig 2: Squeezing Clamp
Courtesy of FORD MOTOR CO.

CAUTION: The large clutch assembly nut has a right-hand thread and must be rotated counterclockwise to remove it.

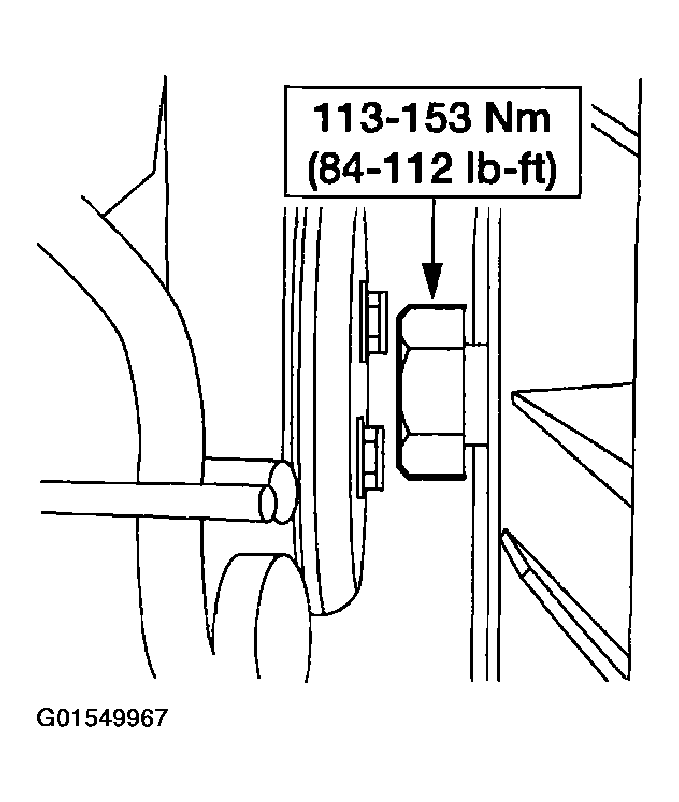

Fig 3: Removing Fan And Fan Clutch From Coolant Pump Pulley

Courtesy of FORD MOTOR CO.

Using the special tool, remove the fan and fan clutch from the coolant pump pulley.
Carefully position the fan and the fan clutch into the shroud.

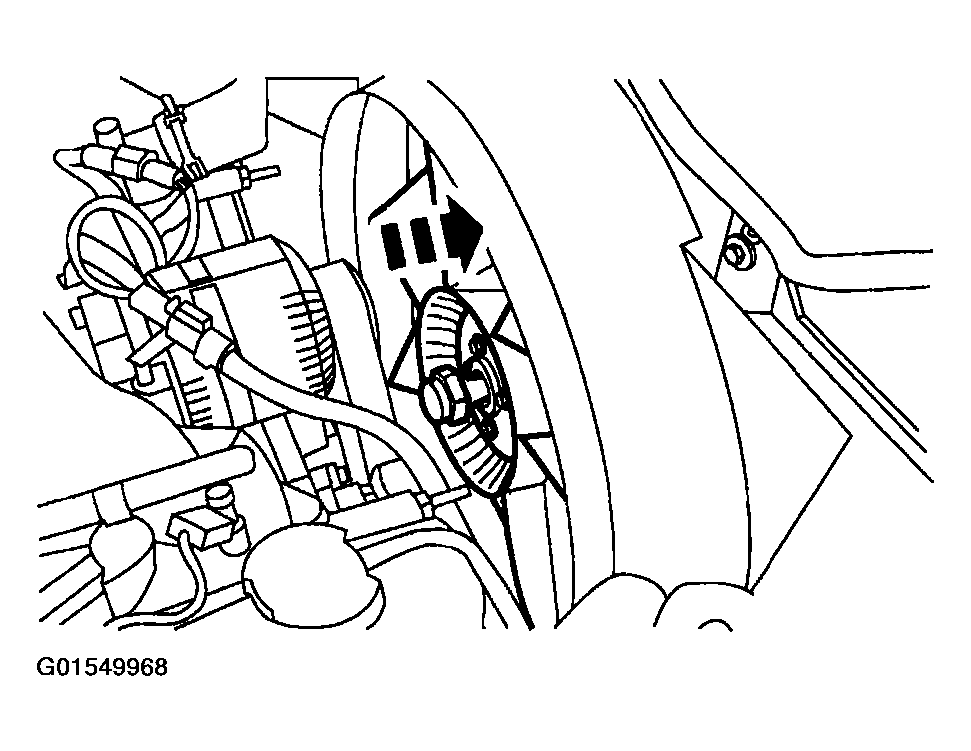

Fig 4: Positioning Fan And Fan Clutch Into Shroud
Courtesy of FORD MOTOR CO.
Remove the bolts, the shroud, fan and clutch.

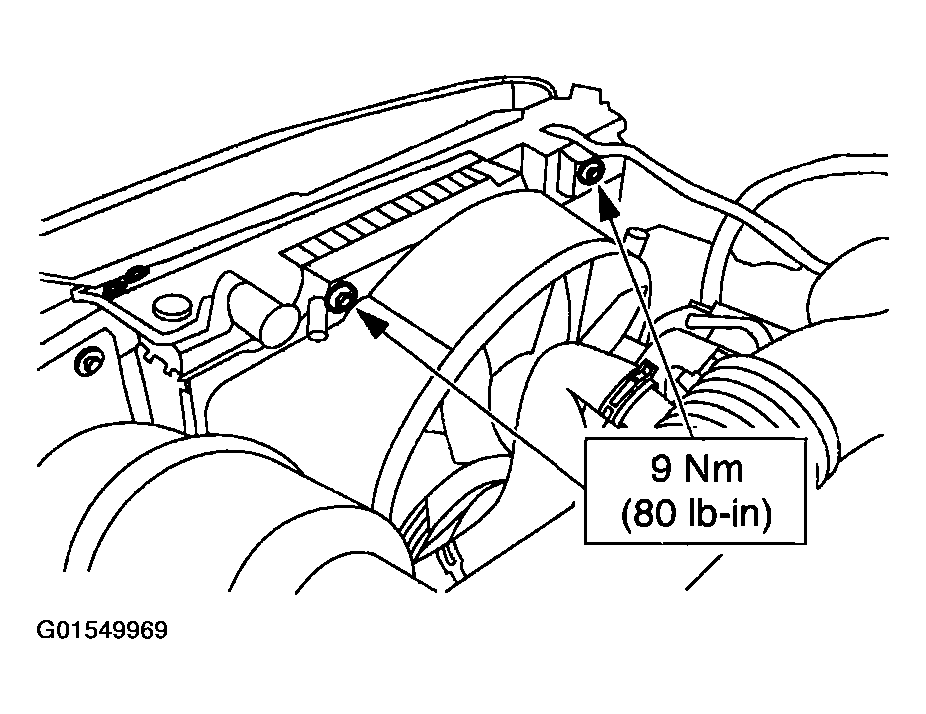

Fig 5: Removing Bolts, Shroud, Fan And Clutch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
