Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With vehicle in neutral, position it on a hoist.
Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
Disconnect the block heater electrical connector.

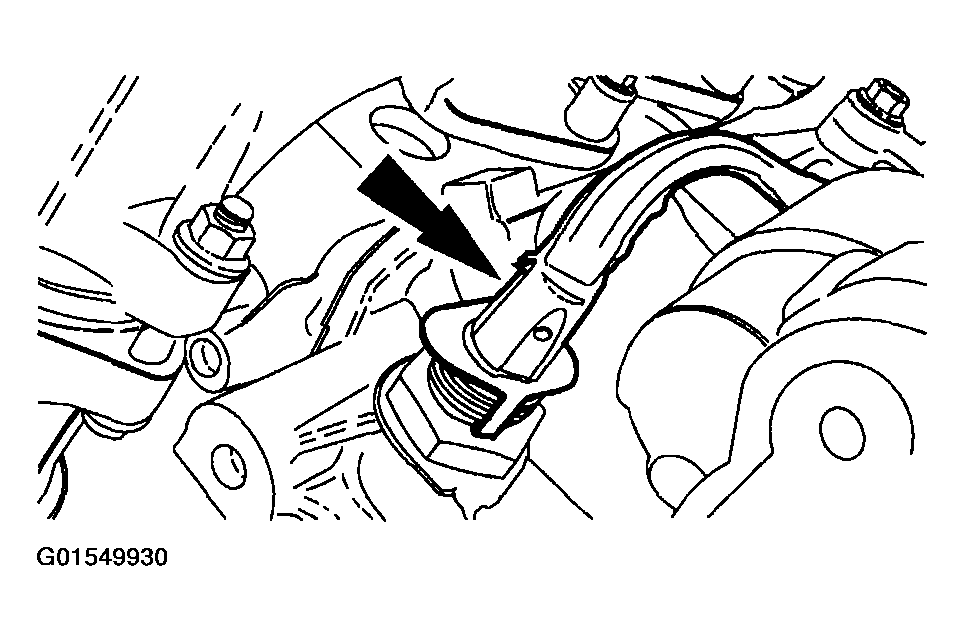

Fig 1: Disconnecting Block Heater Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the block heater.
- Remove and discard the O-ring seal.

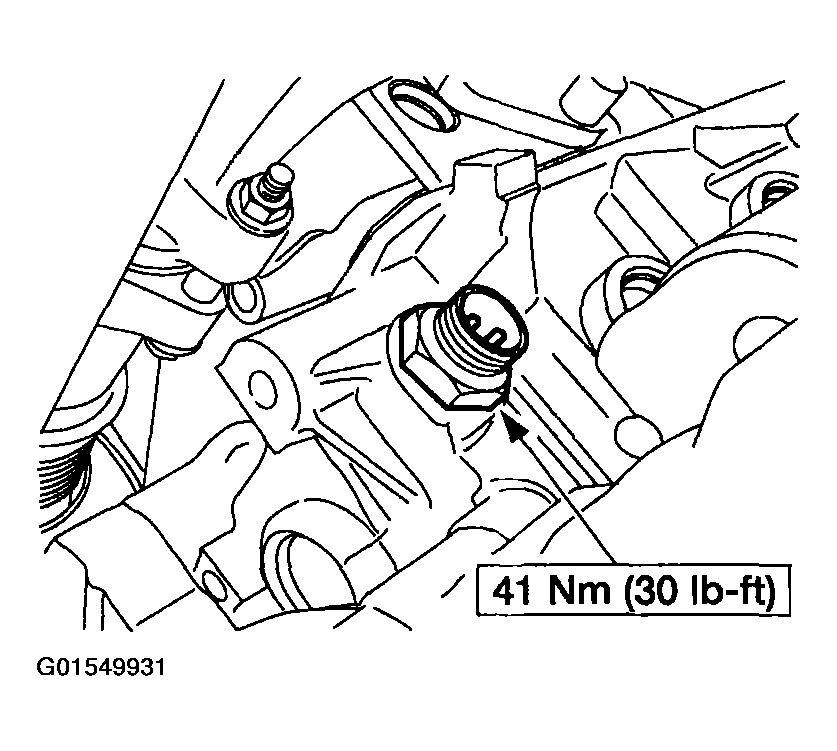

  Fig 2: Removing Block Heater
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new O-ring seal.
