Pinpoint Test A: Loss Of Coolant

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

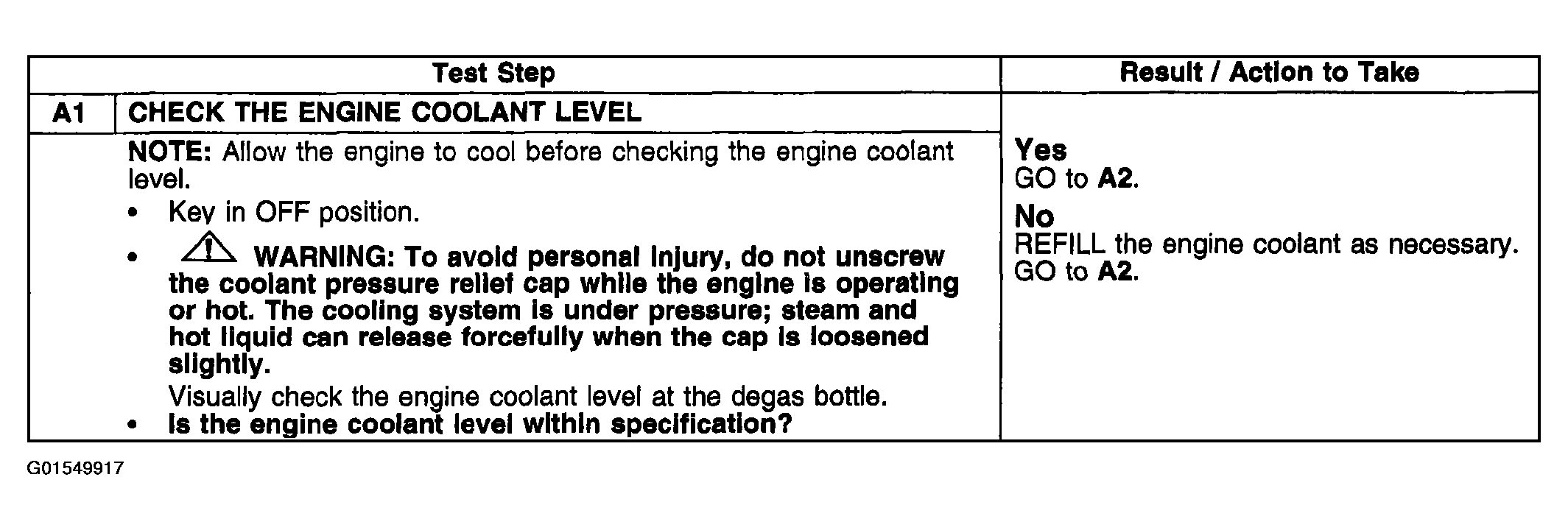

Fig 1: Diagnosis And Testing Chart - Pinpoint Test A: Loss Of Coolant (A1)
G01549917Courtesy of FORD MOTOR CO.

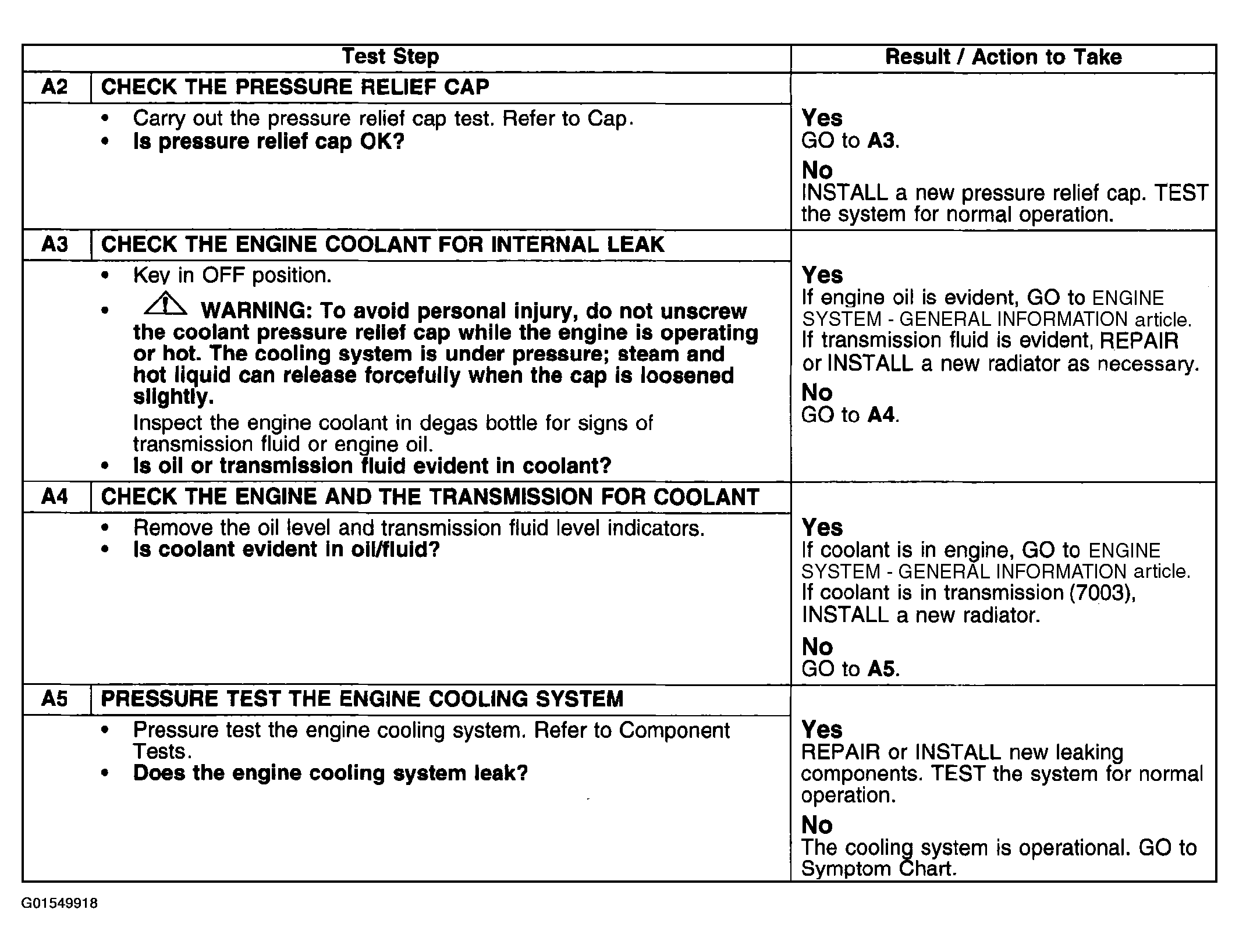

Fig 2: Diagnosis And Testing Chart - Pinpoint Test A: Loss Of Coolant (A2-A5)
G01549918Courtesy of FORD MOTOR CO.
